Removal Procedure

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Belt Opening Bezel (1) - Disengage
Courtesy of GENERAL MOTORS COMPANY

Quarter Window Trim Finish Panel Bolt Cap (1) - Remove
Quarter Window Trim Finish Panel Bolt (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed plastic trim tool, release the retaining clips.

NOTE:

The body lock pillar upper trim panel does not need to be fully removed from the vehicle.

Body Lock Pillar Upper Trim Panel (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Using a suitable plastic trim tool, release the retaining tabs.

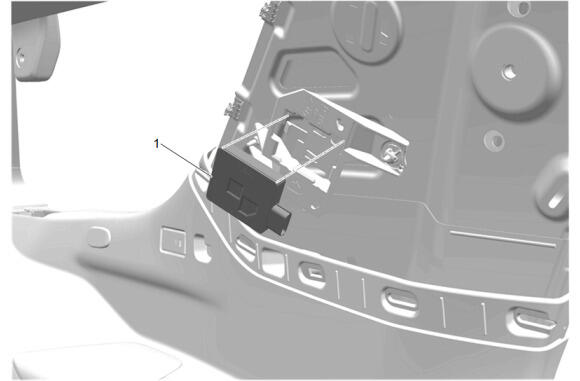

Interior Object Detection Module (1) - Remove
Disconnect the electrical connector.
