Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

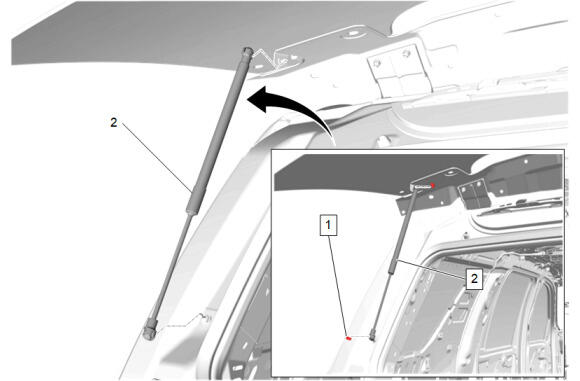

Liftgate Window Strut (2) - Install
First install the liftgate end of the liftgate window strut (1) and then install the body side.
Ensure the retainer/clips are fully seated when strut is reinstalled. If a clip cannot be fully seated, a new strut should be installed.
Remove the support.
