Installation Procedure

  1. GM5536168Courtesy of GENERAL MOTORS COMPANY

    Windshield (1) - Install - Adhesive Installation of Windshields

  2. With the aid of an assistant, install the windshield (1) and locating pin (2) to the vehicle.
  3. GM5330473Courtesy of GENERAL MOTORS COMPANY

    Clean the inside of the windshield before installing the windshield multifunction sensor mount bracket (1).

  4. Windshield Multifunction Sensor Mount Bracket (1) - Install
  5. GM5567757Courtesy of GENERAL MOTORS COMPANY

    Windshield Outside Moisture/Ambient Light and Humidity Sensor (1) - Install NEW

  6. Connect the electrical connector.
  7. GM5567755Courtesy of GENERAL MOTORS COMPANY

    Front View Camera (1) - Install

  8. Slide the front view camera (1) forward to engage and rotate the front view camera upward and secure the retaining tabs.
  9. Connect the electrical connector.
  10. GM5567746Courtesy of GENERAL MOTORS COMPANY

    Inside Rearview Mirror (2) - Install

    11. CAUTION:

    Refer to Fastener Caution .

  11. Inside Rearview Mirror Bolt (1) - Install and tighten - Fastener Specifications
  12. Connect the electrical connectors.
  13. GM5567744Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover (1) - Install

  14. GM5567742Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

  15. Enable the SIR System. SIR Disabling and Enabling
  16. GM5537718Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module Shield (1) - Install

  17. GM5531724Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install

  18. Rear Window Washer Nozzle Extension Hose - Connect [2x]
  19. Rear Window Washer Solvent Container Hose - Connect
  20. Air Inlet Grille Panel Retainer (1) - Install [8x]
  21. GM5532143Courtesy of GENERAL MOTORS COMPANY

    Hood Rear Outer Air Inlet Seal (2) - Install [2x]

  22. Hood Rear Outer Air Inlet Seal Retainer (1) - Install [2x]

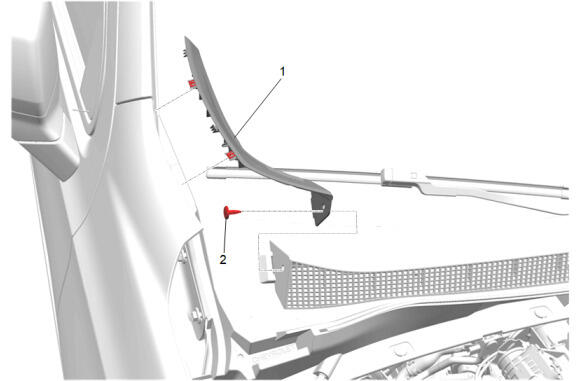

  23. GM6749238Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension - Right Side (1) - Install

  24. Air Inlet Grille Panel Retainer (2) - Install
  25. Remove the double layer of masking tape around the perimeter of the painted surfaces.
  26. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  27. GM5523134Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension - Left Side (1) - Install

  28. Remove the double layer of masking tape around the perimeter of the painted surfaces.
  29. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  30. GM5522078Courtesy of GENERAL MOTORS COMPANY

    Clean the left and right side windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).

  31. Windshield Wiper Arm (3) - Install [2x]
  32. Windshield Wiper Arm Nut (2) - Install and tighten [2x] - Fastener Specifications
  33. Windshield Wiper Arm Finish Cap (1) - Install [2x]
  34. GM5532162Courtesy of GENERAL MOTORS COMPANY

    If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.

  35. Lubricate the windshield with clean washer fluid.
  36. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  37. Ensure the windshield wipers are in the full park position.
