Installation Procedure

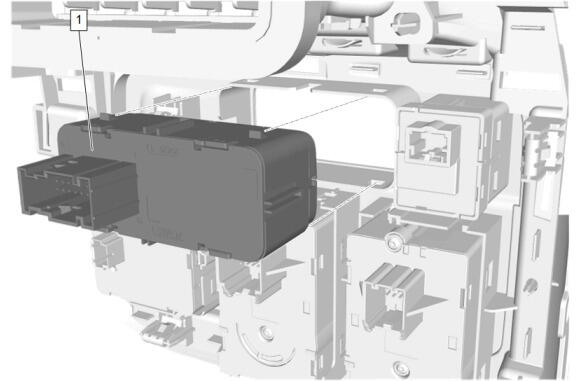

Vehicle Stability Control System Switch (1) - Install
- Ensure that the retaining tabs are fully secured.
Connect the electrical connectors.

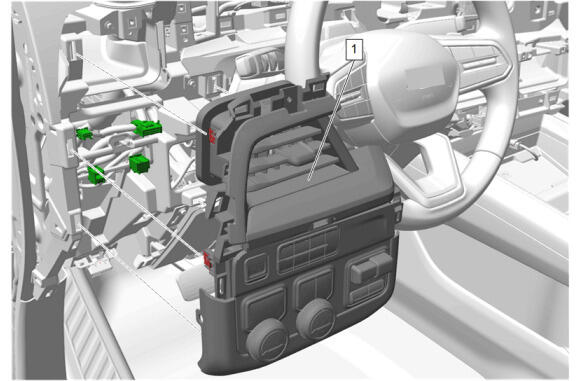

- Instrument Panel Outer Air Outlet - Left Side (1) - Install
- CAUTION:
Refer to Fastener Caution .

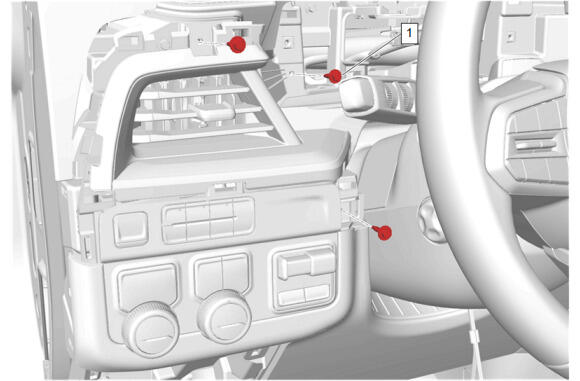

Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [3x] - Fastener Specifications

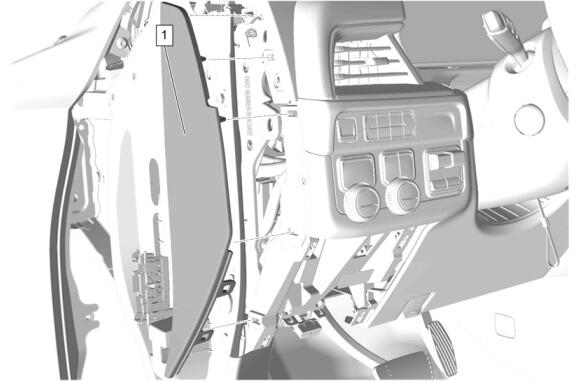

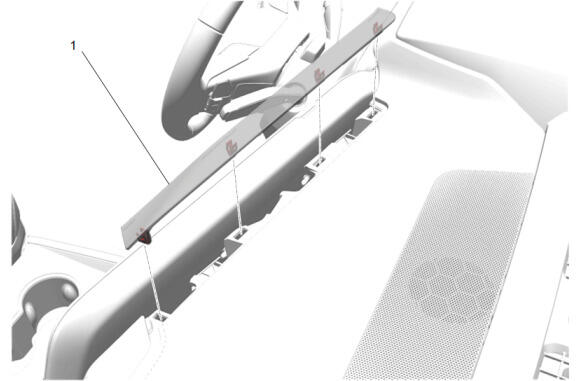

Instrument Panel Center Trim Pad - Left Side (1) - Install

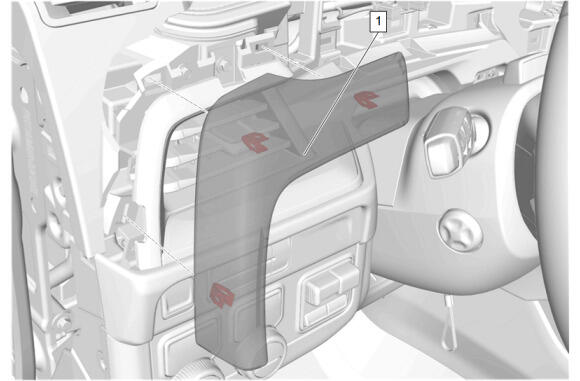

Instrument Panel Trim Pad - Left Side (1) - Install

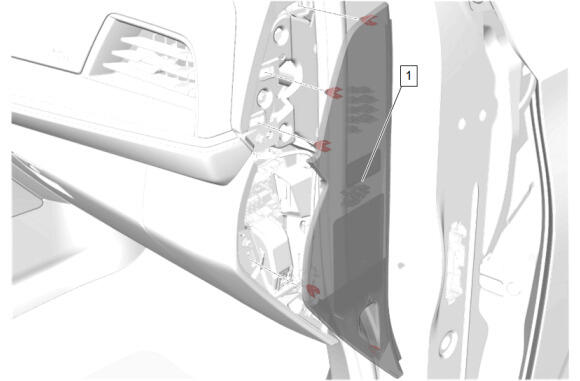

Instrument Panel Outer Trim Cover - Left Side (1) - Install
Instrument Panel Lower Trim Panel Outer Filler (1) - Install
Connect the electrical connectors.
- Radio Control (1) - Install

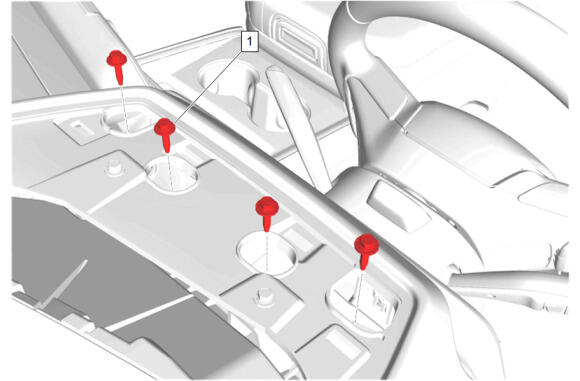

Radio Control Bolt (1) - Install and tighten [6x] - Fastener Specifications

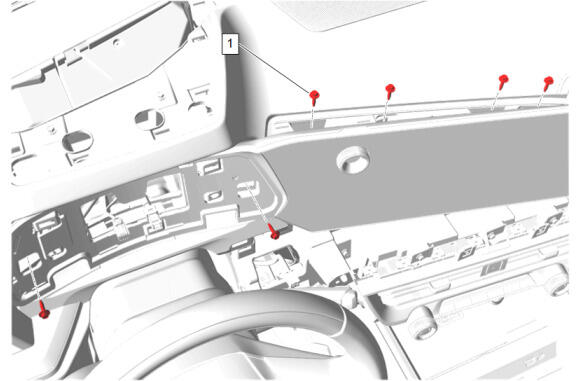

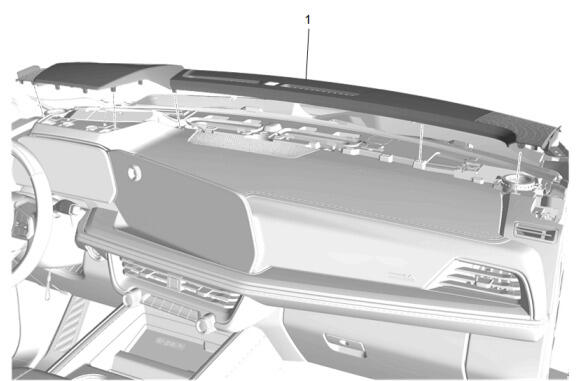

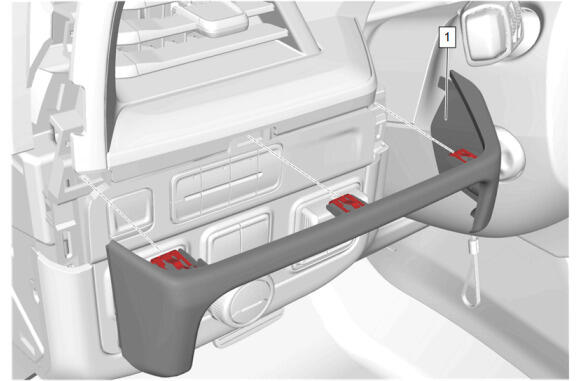

Instrument Panel Upper Trim Panel Cover (1) - Install

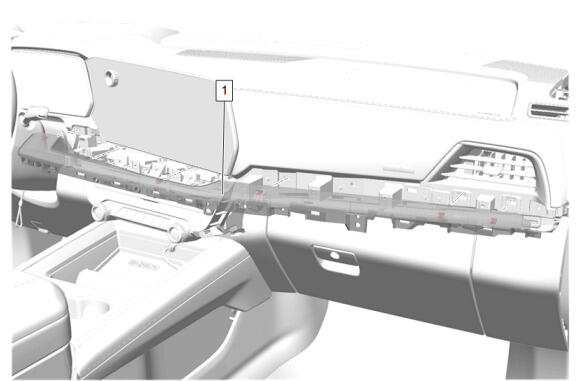

Instrument Panel Trim Plate Applique - Right Side (1) - Install

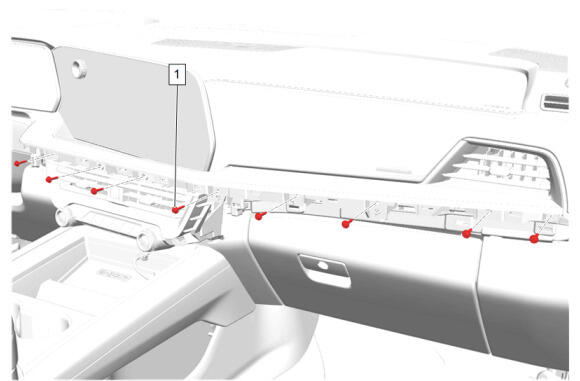

Instrument Panel Trim Plate Applique Bolt (1) - Install and tighten [8x] - Fastener Specifications
Connect the electrical connector.
- Instrument Panel Center Trim Pad - Right Side (1) - Install

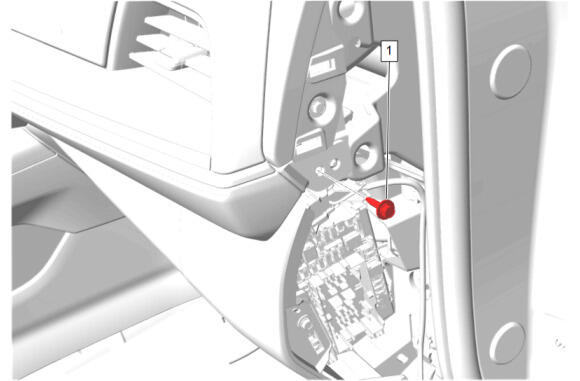

Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
Instrument Panel Fuse Block Access Hole Cover - Right Side (1) - Install
Connect the electrical connectors.

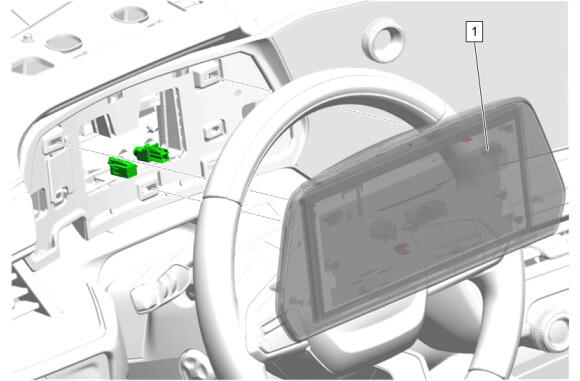

- Instrument Panel Cluster Control Module (1) - Install
Instrument Cluster Bolt (1) - Install and tighten [4x] - Fastener Specifications

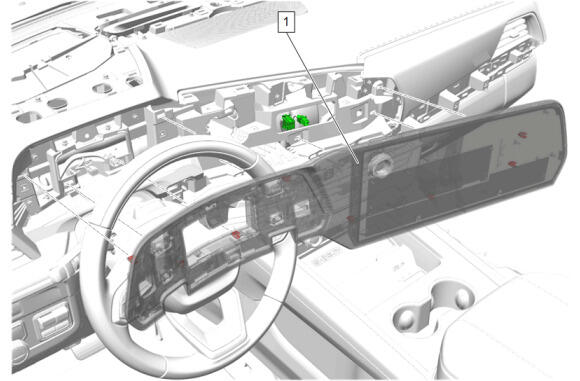

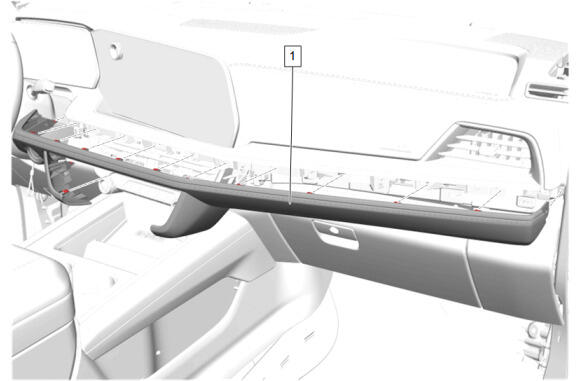

Instrument Panel Extension (1) - Install

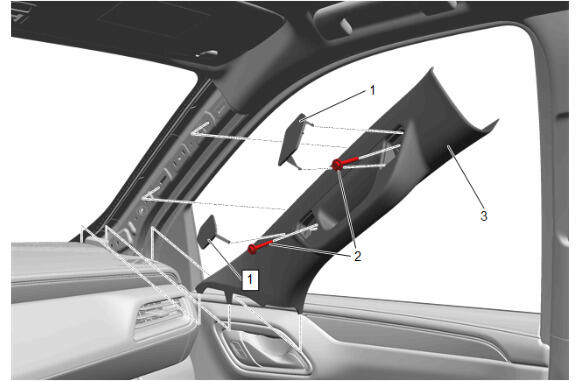

Windshield Garnish Molding - Right Side (3) - Install
- Windshield Pillar Assist Handle Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Windshield Pillar Assist Handle Cover (1) - Install [2x]
- Reposition the weatherstrip as necessary.
Windshield Garnish Molding Bolt (3) - Install and tighten - Fastener Specifications

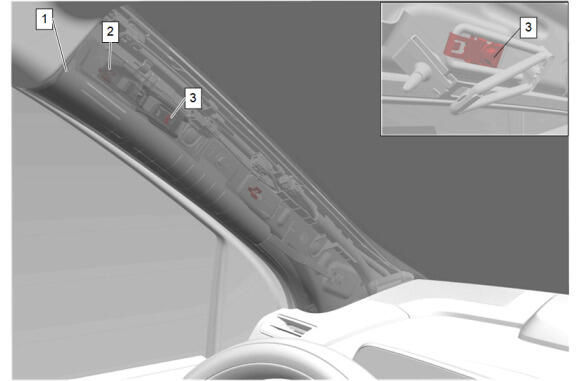

- Align the retaining clips (2) with the slots in the A pillar and press the windshield garnish molding (1) into place.

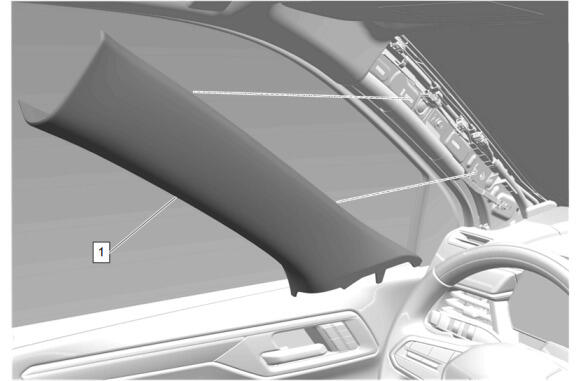

Windshield Garnish Molding - Left Side (1) - Install
- Enable the SIR System. SIR Disabling and Enabling
