Fastener Specifications

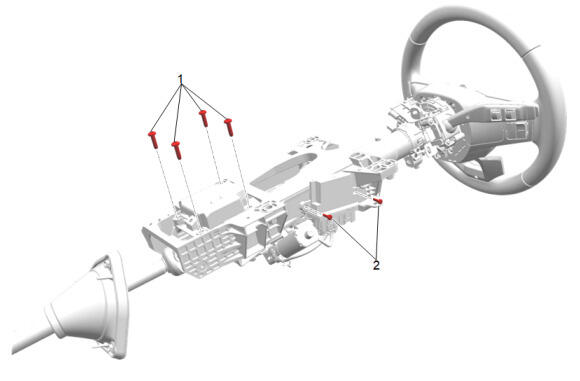

GM6736891Courtesy of GENERAL MOTORS COMPANY
Column Lock Module

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Steering Column Lock Control Module Bolt [4x] - - 9.5 N.m (84 lb in) Column Lock Module Replacement
2 Steering Column Control Module Bracket Bolt [2x] - - 3 N.m (27 lb in) Steering Column Control Module Replacement
Fig 1: Identifying Steering Column Component Fasteners
GM5570494Courtesy of GENERAL MOTORS COMPANY
Steering Column

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Intermediate Steering Shaft Lower Bolt - - 45 N.m (33 lb ft) Intermediate Steering Shaft Replacement
2 Mid Intermediate Steering Shaft Bolt - Yes 50 N.m (37 lb ft) Upper Intermediate Steering Shaft Replacement
3 Steering Column Seal Nut [3x] - - 9 N.m (80 lb in) Intermediate Steering Shaft Boot Replacement
4 Upper Intermediate Steering Shaft Bolt - - 45 N.m (33 lb ft) Upper Intermediate Steering Shaft Replacement
5 Steering Column Nut [4x] - - Steering Column Nut Sequence  Steering Column Replacement (UV6) , or Steering Column Replacement (- UV6)
6 Steering Wheel Bolt - Yes 45 N.m (33 lb ft) Steering Wheel Replacement

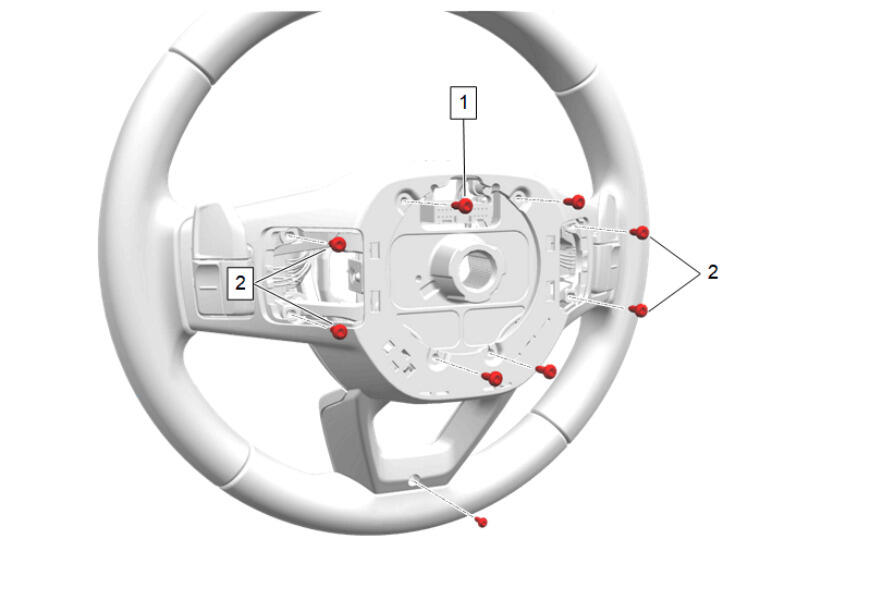

GM6751979Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Shroud

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Steering Wheel Spoke Cover Bolt [6x] - - 1 N.m (9 lb in) Steering Wheel Shroud Replacement
2 Steering Wheel Spoke Cover Bolt [4x] - - 1 N.m (9 lb in) Automatic Transmission Manual Shift Auxiliary Position Switch Replacement - Left Side
Automatic Transmission Manual Shift Auxiliary Position Switch Replacement - Right Side

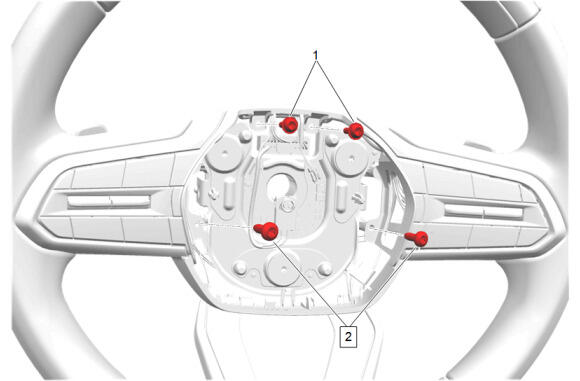

GM6719934Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Trim Spoke Cover Applique

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Cruise Control Switch Bolt [2x] - - 1 N.m (9 lb in) Steering Wheel Trim Spoke Cover Applique Replacement
2 Steering Wheel Spoke Cover Bolt [2x] - - 1 N.m (9 lb in) Steering Wheel Trim Spoke Cover Applique Replacement

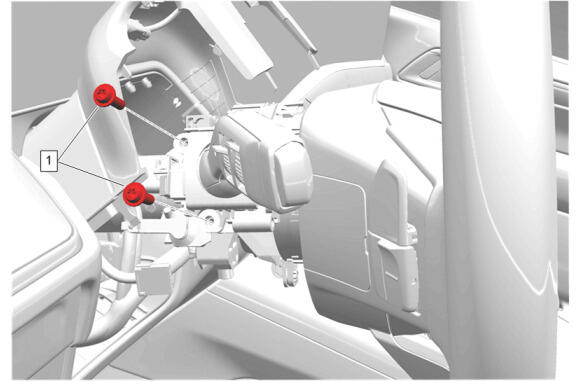

GM6737218Courtesy of GENERAL MOTORS COMPANY
Turn Signal Switch

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Turn Signal Switch Bolt [2x] - - 3.3 N.m (29 lb in) Turn Signal Switch Replacement

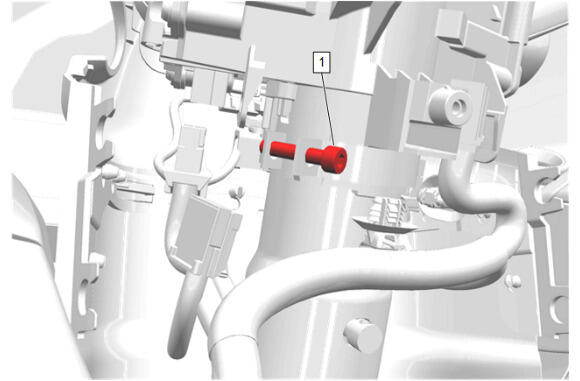

GM6725982Courtesy of GENERAL MOTORS COMPANY
Turn Signal Switch Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Turn Signal Switch Bracket Band Clamp - - 5 N.m (44 lb in) Turn Signal Switch Bracket Replacement

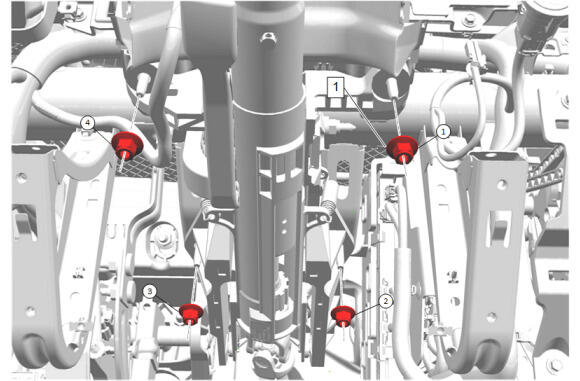

Steering Column Nut Sequence
GM6737833Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Nut [4x] - - 22 N.m (16 lb ft) Steering Column Replacement (UV6) , or Steering Column Replacement (- UV6)
