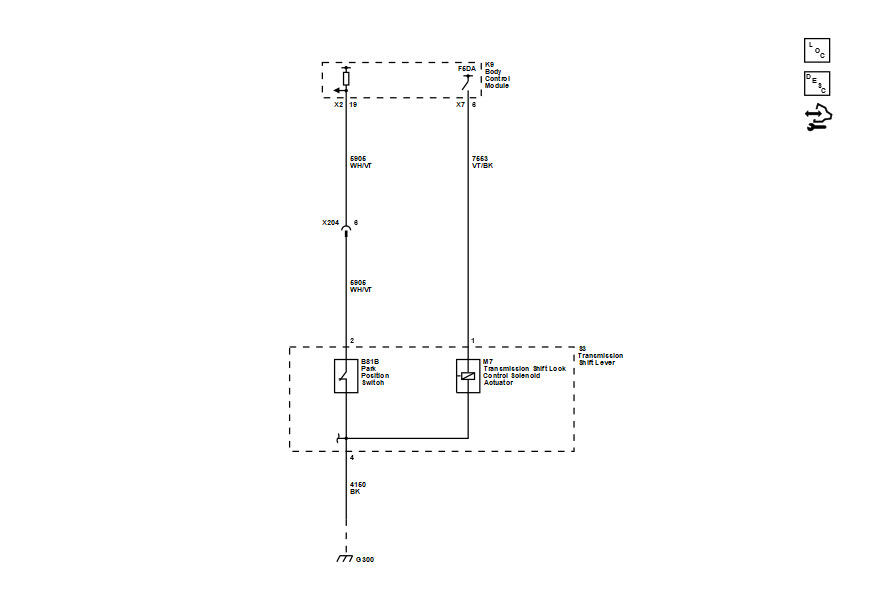

Home › Chevrolet › 2025 › Trailblazer ACTIV, FWD › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control
