Fuel Pump Power Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

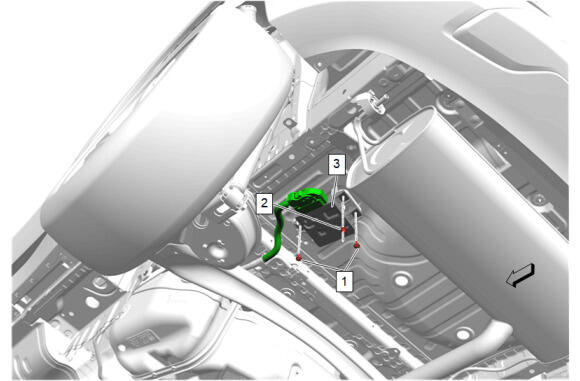

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Fuel Pump Power Control Module Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Fuel Pump Power Control Module Nut Tighten 5 N.m (44 lb in)
3	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. Rotate the module slightly counterclockwise and remove it. If replacing, reprogram the module. Control Module References
