Installation Procedure

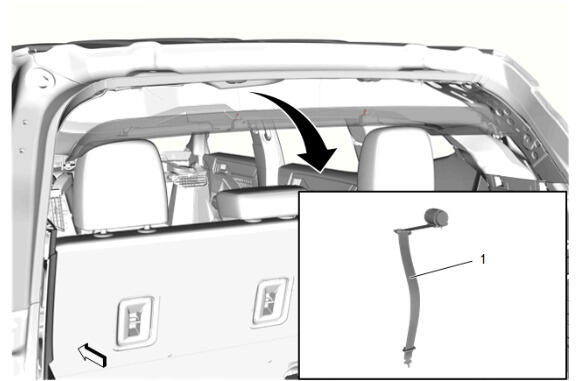

3rd Row Center Seat Belt Retractor (1) - Install

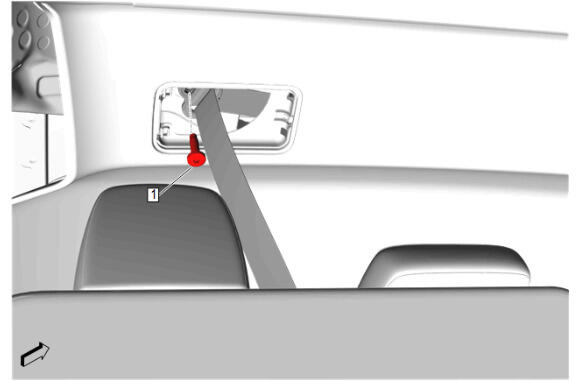

- 3rd Row Center Seat Belt Retractor Bolt (1) - Install and tighten - Fastener Specifications

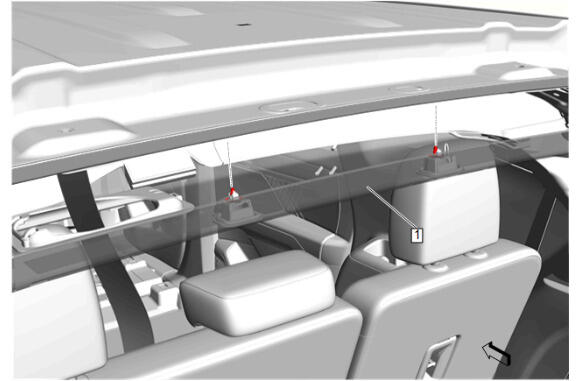

Headlining Trim Panel (1) - Install
- Install the 2 headlining trim panel retainers.
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
- 3rd Row Center Seat Belt Retractor Bolt (1) - Install and tighten - Fastener Specifications

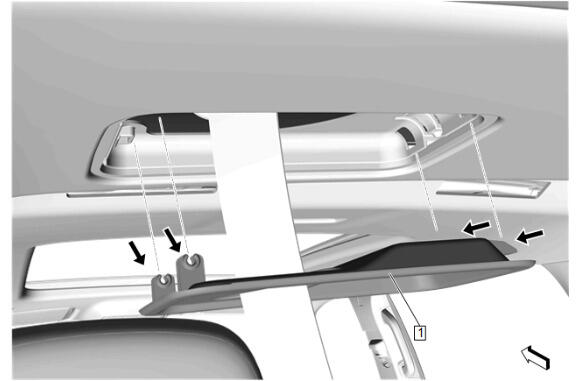

Rear Seat Center Belt Opening Bezel (1) - Install

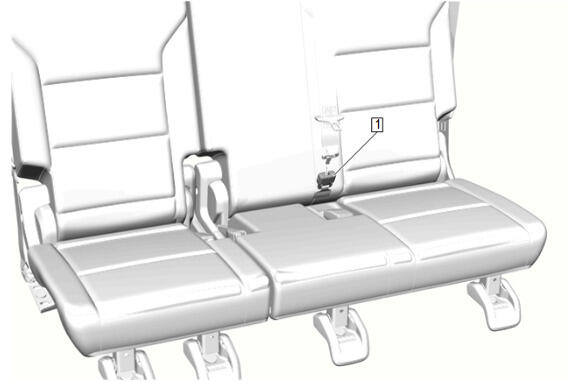

Install the mini buckle (1).
Body Rear Corner Upper Garnish Molding - Left Side and Right Side (3) - Install [2x]
- Body Rear Corner Upper Garnish Molding Bolt - Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
- Quarter Window Trim Finish Panel Bolt Cap - Left Side and Right Side (1) - Install [2x]
CAUTION:
Refer to Fastener Caution .
