Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

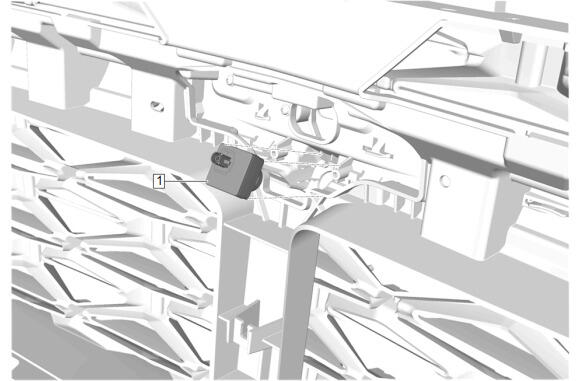

Front View Driver Information Camera (1) - Install
Courtesy of GENERAL MOTORS COMPANY

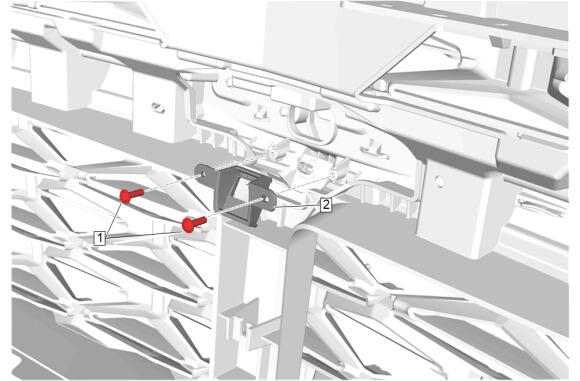

Front Grille Opening Cover (2) - Install

CAUTION:

Front Grille Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

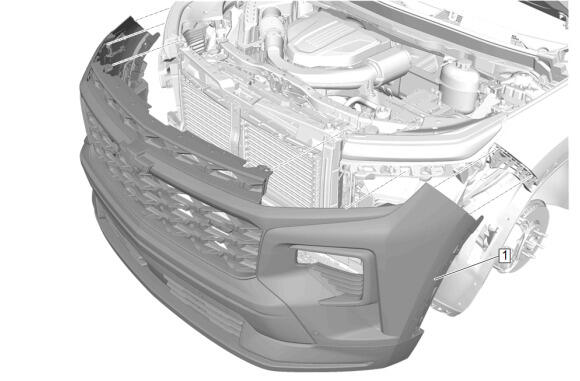

Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (Z71)
{UKL} Perform the necessary initialization procedure. Surround Vision Camera Calibration (cameras wired to K124 Image Processing Module) , or Surround Vision Camera Calibration (cameras wired to A11 Radio)
