Fastener Specifications

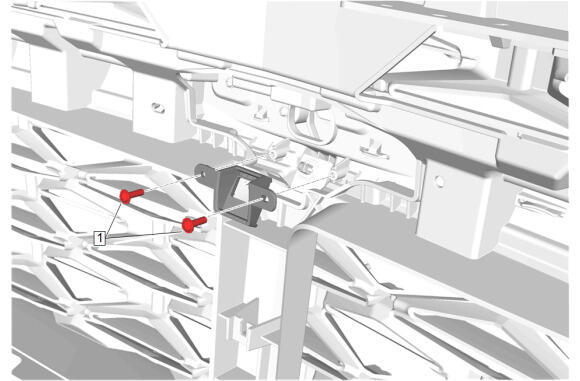

GM6420139Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front View Driver Information Camera

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Grille Bolt [2x] - - 2.5 N.m (29 lb in) Front View Driver Information Camera Replacement

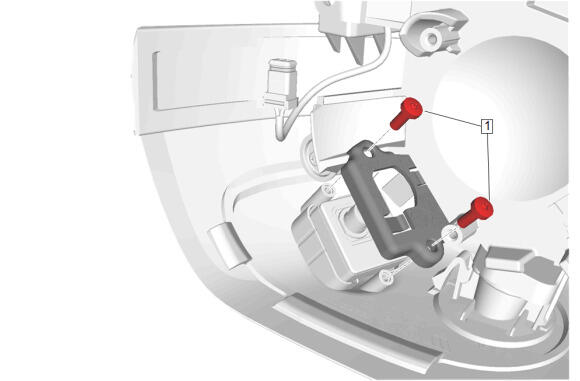

GM6420163Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Side View Driver Information Camera

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Side View Driver Information Camera Bolt [2x] - - 0.76 N.m (7 lb in) Side View Driver Information Camera Replacement

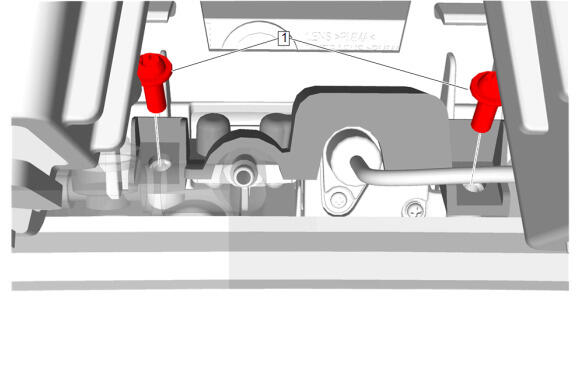

GM6420164Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Video Display Inside Rearview Mirror Camera

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Video Display Inside Rearview Mirror Camera Bracket Bolt [2x] - - 1.5 N.m (13 lb in) Video Display Inside Rearview Mirror Camera Replacement
GM5613613Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Video Display Inside Rearview Mirror Camera Nozzle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Video Display Inside Rearview Mirror Camera Bracket Bolt [2x] - - 1.5 N.m (13 lb in) Video Display Inside Rearview Mirror Camera Nozzle Replacement

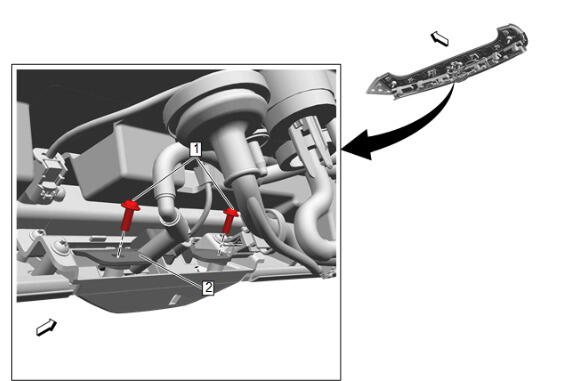

GM5613585Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Video Display Inside Rearview Mirror Camera Nozzle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Video Display Inside Rearview Mirror Camera Bracket Bolt [2x] - - 1.5 N.m (13 lb in) Video Display Inside Rearview Mirror Camera Nozzle Replacement
