Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

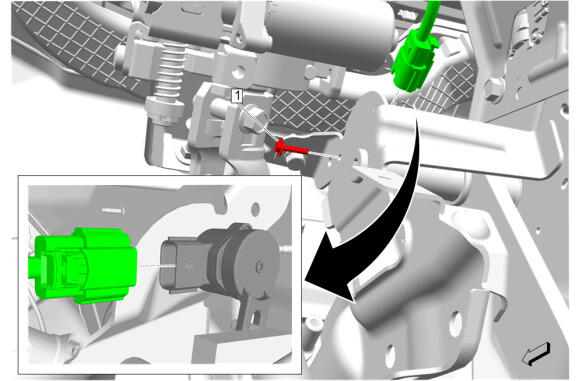

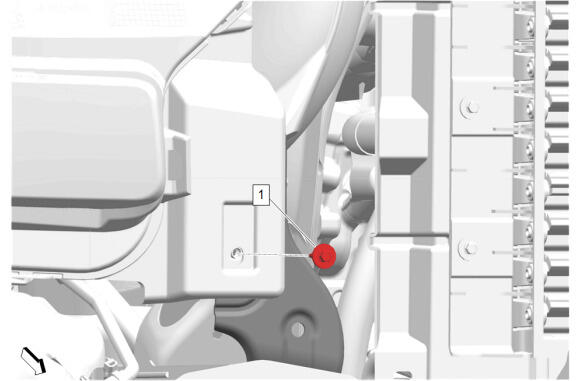

Brake Pedal Position Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Brake Pedal Position Sensor Bolt | - | - | 9 N.m (80 lb in) | Brake Pedal Position Sensor Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

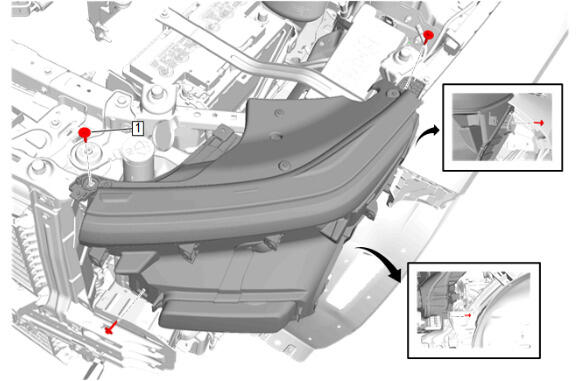

Front Headlamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Bolt [5x] | - | - | 2.5 N.m (22 lb in) | Front Headlamp Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

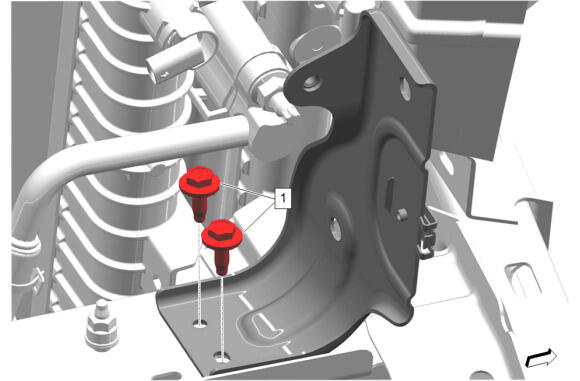

Headlamp Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Bracket Bolt [2x] | - | - | 9 N.m (80 lb in) | Headlamp Bracket Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.
Headlamp Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Bracket Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Headlamp Bracket Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

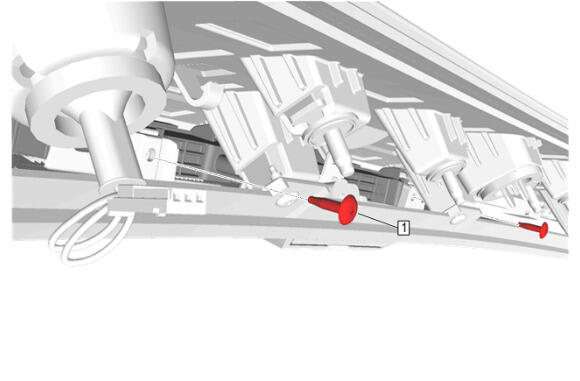

High Mount Stop Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Mount Stop Lamp Bolt [2x] | - | - | 2.5 N.m (22 lb in) | High Mount Stop Lamp Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

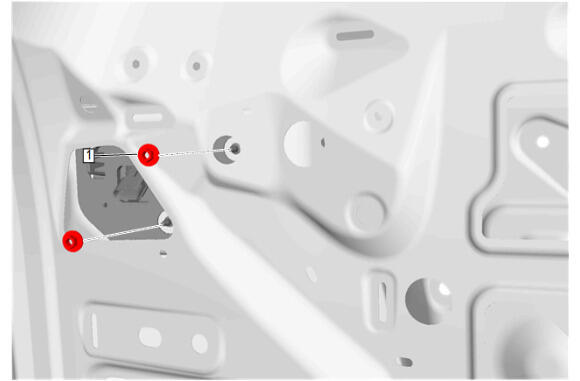

Rear Body Structure Stop Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Body Structure Stop Lamp Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Body Structure Stop Lamp Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

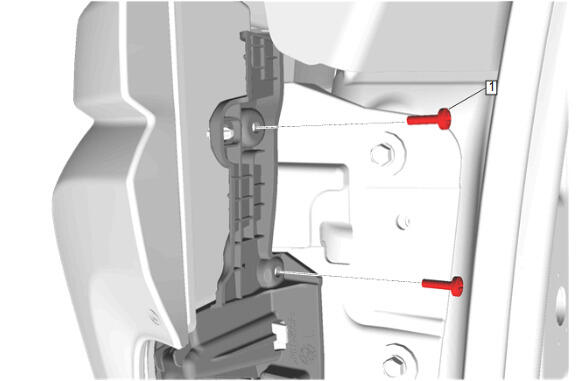

Rear Body Structure Stop Lamp Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Body Structure Stop Lamp Bracket Bolt [2x] | - | - | 1.35 N.m (12 lb in) | Rear Body Structure Stop Lamp Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

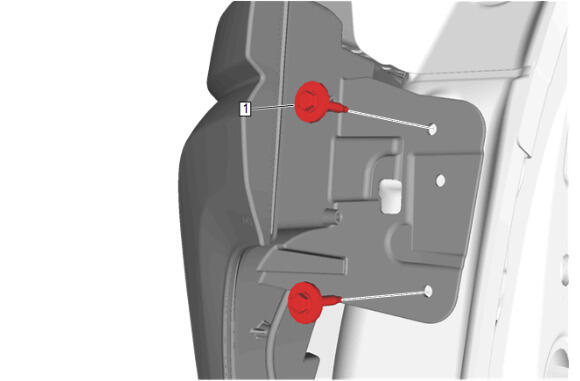

Rear Body Structure Stop Lamp Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Body Structure Stop Lamp Bracket Bolt [2x] | - | - | 1.35 N.m (12 lb in) | Rear Body Structure Stop Lamp Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.
Rear Closure Auxiliary Signal Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Closure Auxiliary Signal Lamp Nut [2x] | - | - | 4.7 N.m (42 lb in) | Rear Closure Auxiliary Signal Lamp Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

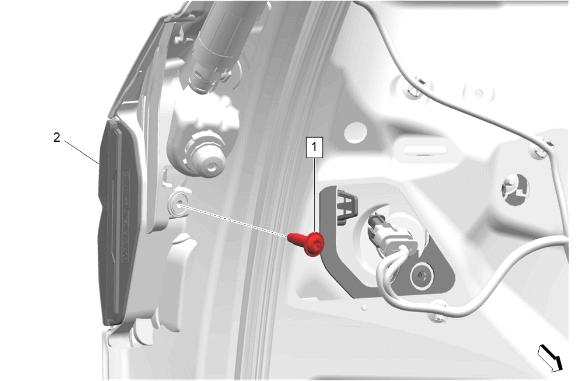

Rear Closure Auxiliary Signal Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Closure Signal Lamp Bolt | - | - | 4.7 N.m (42 lb in) | Rear Closure Auxiliary Signal Lamp Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

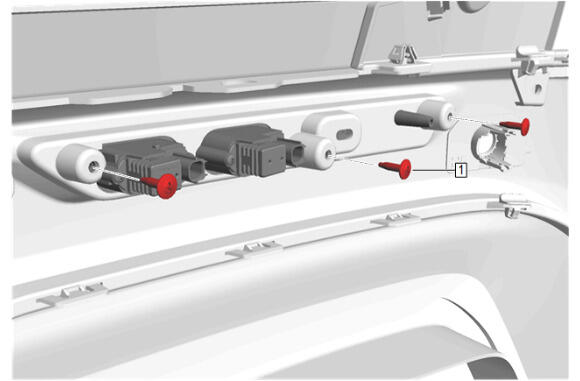

Rear Fascia Signal Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Fascia Signal Lamp Screw [3x] | - | - | 9 N.m (80 lb in) | Rear Fascia Signal Lamp Replacement |
