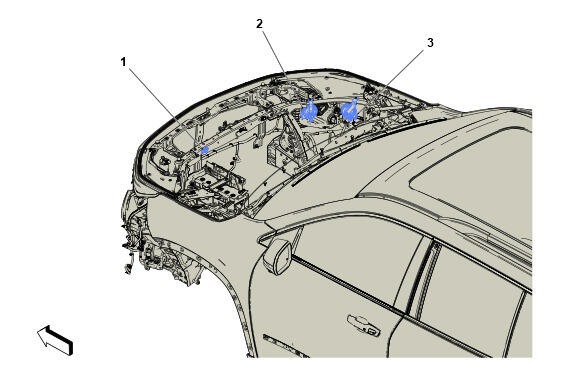

Left Front of Engine Compartment Components

GM6431845Courtesy of GENERAL MOTORS COMPANY
Items
1. B58L Airbag Front End Discriminating Sensor - Left B58L Airbag Front End Discriminating Sensor - Left
2. P12B Horn - Low Note P12B Horn - Low Note
3. P12A Horn - High Note P12A Horn - High Note
