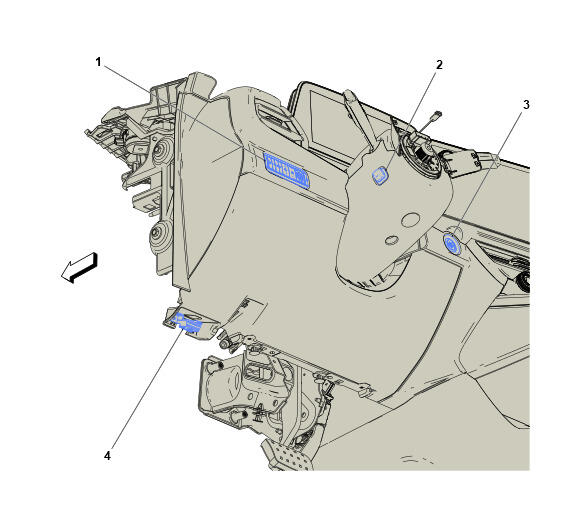

Left Lower of Instrument Panel Components

GM6432574Courtesy of GENERAL MOTORS COMPANY
Items
1. S36 Instrument Panel Dimmer Switch S36 Dimmer Switch
2. S71 Steering Column Tilt and Telescope Switch (N38) S71 Steering Column Tilt Wheel and Telescope Switch
3. S38 Ignition Mode Switch S38 On/Off Vehicle Switch
4. X84 Data Link Connector X84 Data Link Connector
