Installation Procedure

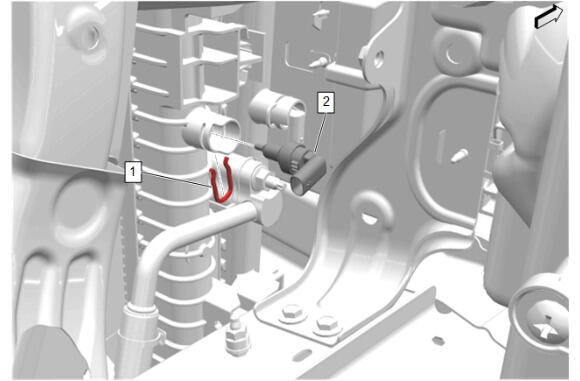

Engine Coolant Temperature Sensor (2) @ Engine Radiator - Install
- Retainer (1) - Install

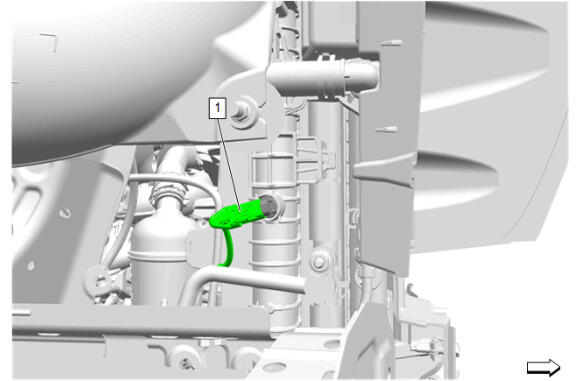

Electrical Connector (1) @ Engine Coolant Temperature Sensor - Connect
- Front Bumper Fascia - Install - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (Z71)
- Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
- Start the engine and check for coolant leaks.
