Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

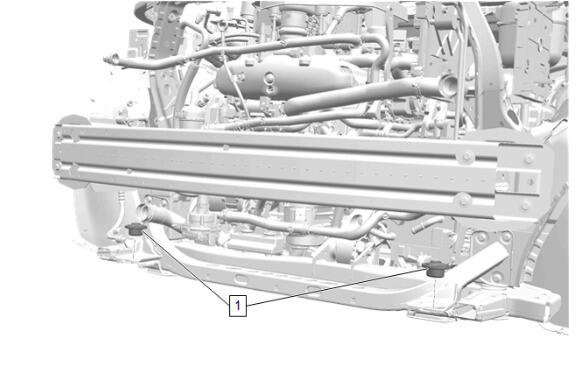

Radiator Lower Insulator (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Engine Radiator (3) - Install
Air Conditioning Condenser (2) - Install
Engine Auxiliary Radiator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

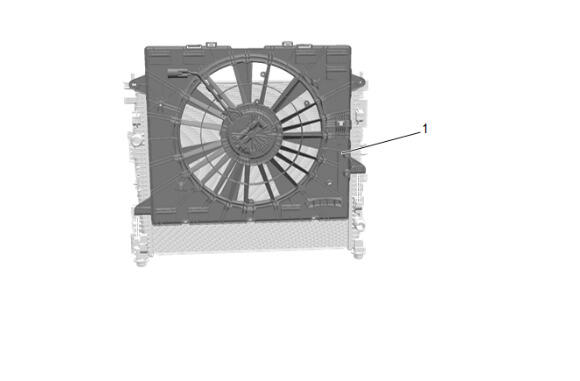

Engine Coolant Fan (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Engine Coolant Fan Shroud Retainer (2) - Install and tighten [3x] - Fastener Specifications
Engine Coolant Fan Bolt (1) - Install and tighten [2x] - Fastener Specifications
Engine Coolant Fan Module Radiator - Install - Engine Coolant Fan Module Radiator Assembly Removal and Installation
