Installation Procedure

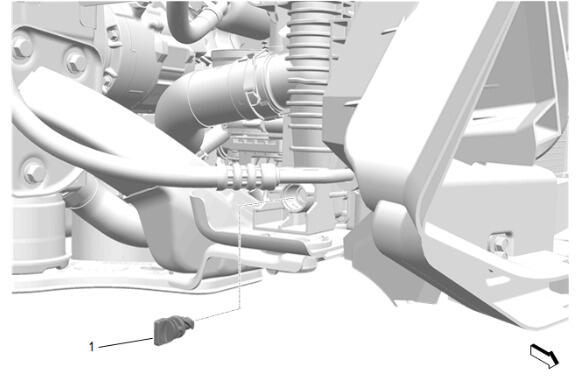

Radiator Drain Cock (1) - Install
- Rotate the radiator drain cock clockwise to close. (1)
- Remove the drain Hose from the radiator drain port.
- Remove the drain pan.
- Front Wheelhouse Liner - Right Side - Install - Front Wheelhouse Liner Replacement
- Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
- Start the engine and check for coolant leaks.
