Removal Procedure
- Disable the SIR system. SIR Disabling and Enabling
- Front Floor Console - Remove - Front Floor Console Removal and Installation

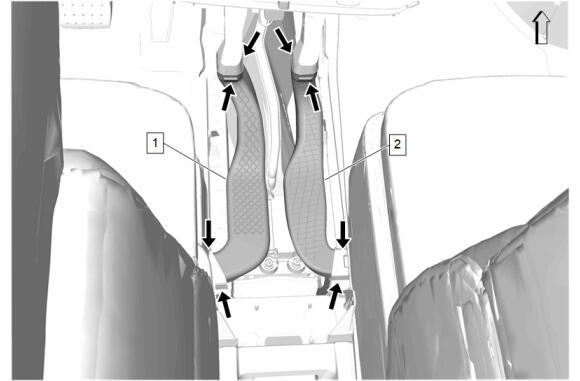

Release the retaining tabs.
- Floor Rear Air Outlet Duct Adapter - Left Side and Right Side (1, 2) - Remove [2x]

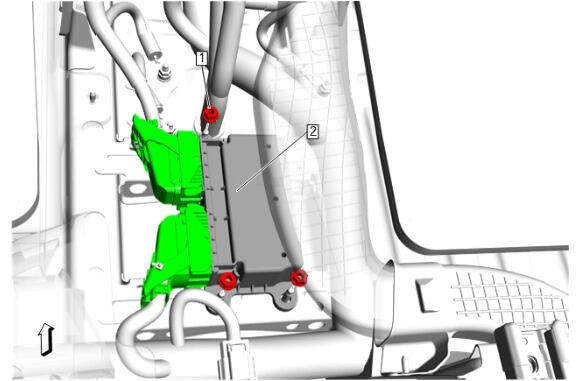

Airbag Sensing and Diagnostic Module Nut (1) - Remove [3x]
- Disconnect the electrical connector.
- Restraints Control Module (2) - Remove
