Removal Procedure

  1. GM6399466Courtesy of GENERAL MOTORS COMPANY

    Quarter Window Trim Finish Panel Bolt Cap - Left Side and Right Side (1) - Remove

  2. Body Rear Corner Upper Garnish Molding Bolt - Left Side and Right Side (2) - Remove
  3. Body Rear Corner Upper Garnish Molding - Left Side and Right Side (3) - Remove
  4. GM6417461Courtesy of GENERAL MOTORS COMPANY

    Release the mini buckle (1).

  5. GM6578562Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tab.

  6. Rear Seat Center Belt Opening Bezel (1) - Remove
  7. GM6578563Courtesy of GENERAL MOTORS COMPANY

    3rd Row Center Seat Belt Retractor Bolt (1) - Remove

  8. GM6578565Courtesy of GENERAL MOTORS COMPANY

    Remove the 2 headlining trim panel retainers.

  9. Lower the headlining trim panel (1) enough to gain access to the bolt.

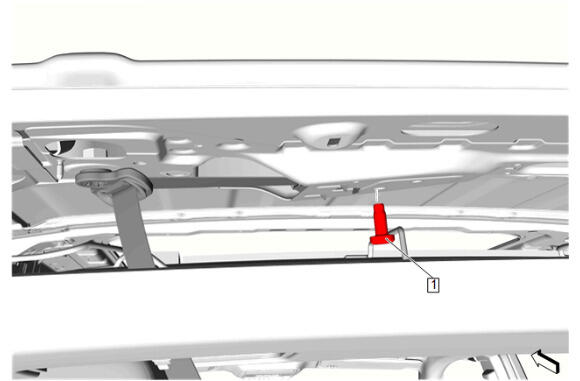

  10. GM6578564Courtesy of GENERAL MOTORS COMPANY

    3rd Row Center Seat Belt Retractor Bolt (1) - Remove

  11. GM6578566Courtesy of GENERAL MOTORS COMPANY

    3rd Row Center Seat Belt Retractor (1) - Remove
