Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

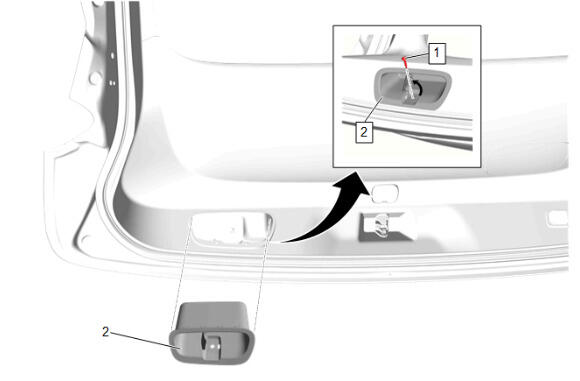

Liftgate Close Switch (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

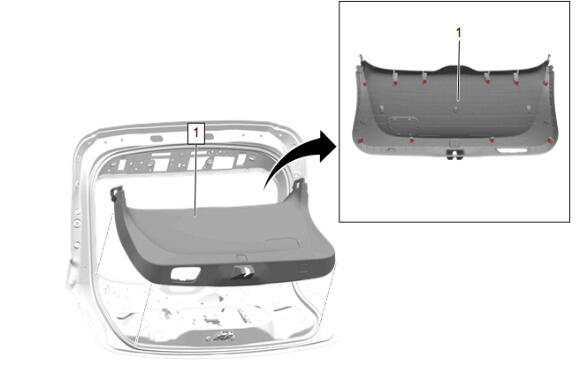

Liftgate Lower Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

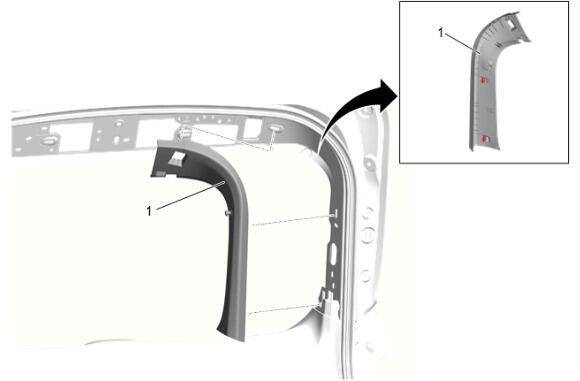

Liftgate Upper Side Trim Finish Panel (1) - Left Side and Right Side - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

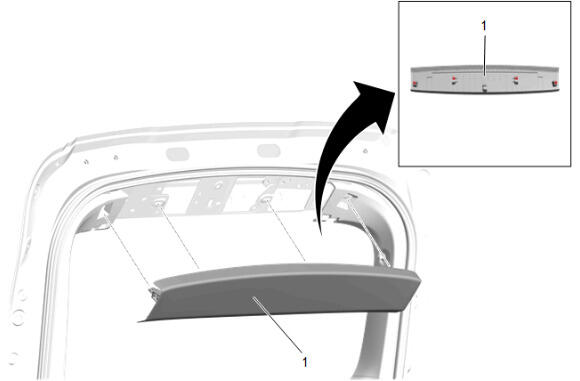

Liftgate Upper Center Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the liftgate trim finish panel pull cup (2).

CAUTION:

Liftgate Lower Trim Finish Panel Bolt (1) - Install and tighten - Fastener Specifications
Close the liftgate.
