Installation Procedure

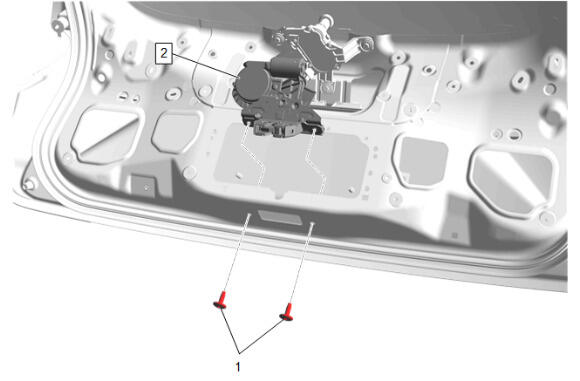

Liftgate Latch (2) - Install
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers (except US, Canada) , or Adhesives, Fluids, Lubricants, and Sealers (US, Canada)
- Liftgate Latch Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector.
- {If equipped} Connect the electrical connector.
Liftgate Lower Trim Finish Panel (1) - Install
Liftgate Upper Side Trim Finish Panel (1) - Left Side and Right Side - Install [2x]
Liftgate Upper Center Trim Finish Panel (1) - Install
Install the liftgate trim finish panel pull cup (2).
- Liftgate Lower Trim Finish Panel Bolt (1) - Install and tighten - Fastener Specifications
- Close the liftgate.
CAUTION:
Refer to Fastener Caution .
