Installation Procedure

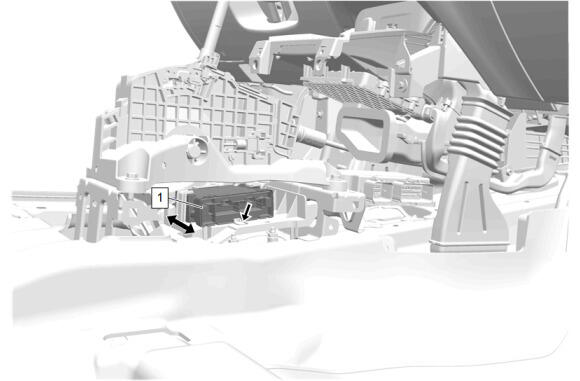

  1. GM5929668Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (1) @ Serial Data Gateway Module Bracket - Install

  2. Secure the retaining tab.

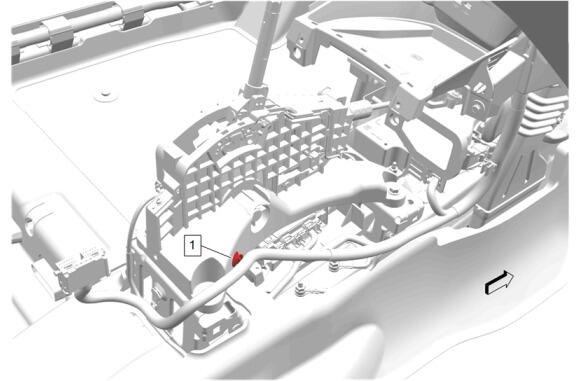

  3. GM5929667Courtesy of GENERAL MOTORS COMPANY

    Position the wiring harness.

  4. Wiring Harness Retainer (1) - Install

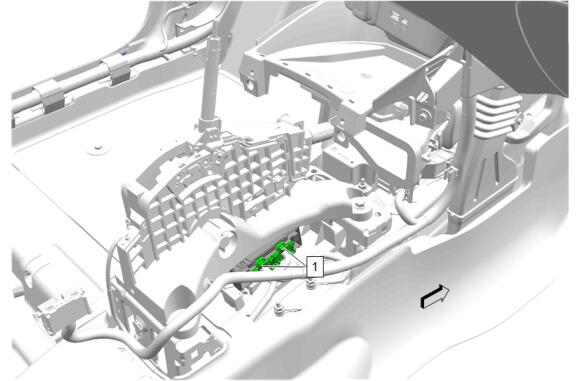

  5. GM5929666Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  6. GM5911448Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation

  7. Perform the necessary programming and setup procedure:Control Module References
