Fastener Specifications

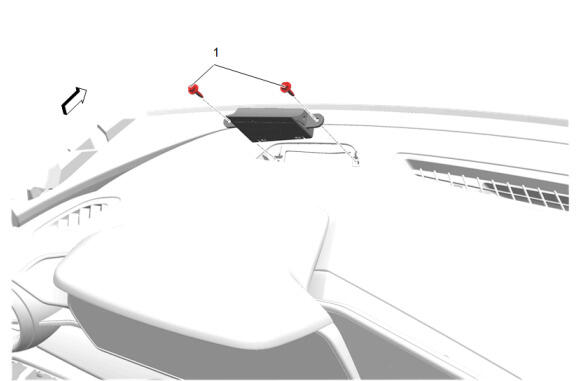

Forward Collision Alert Display
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Collision Alert Display Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Forward Collision Alert Display Replacement |

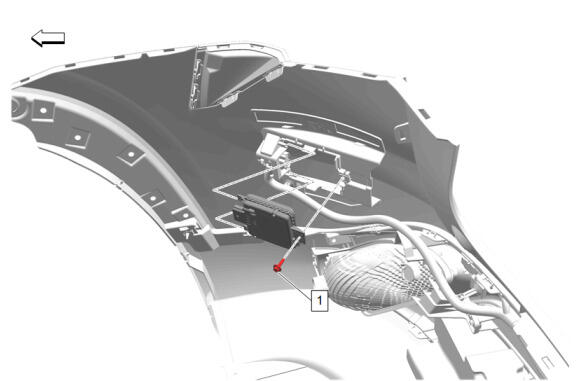

Side Obstacle Detection Control Module
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Side Object Sensing Alert Module Bolt | - | - | 2.5 N.m (22 lb in) | Side Obstacle Detection Control Module Replacement |
