Fastener Specifications

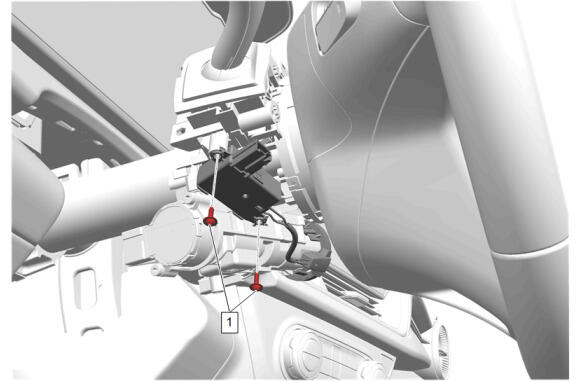

Theft Deterrent Module (with BTM)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Theft Deterrent Module Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Theft Deterrent Module Replacement (BTM) |

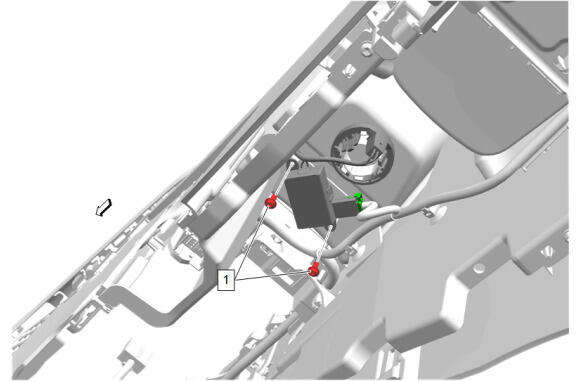

Theft Deterrent Module (without BTM)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Theft Deterrent Module Bolt [2x] | - | - | .45 N.m (4 lb in) | Theft Deterrent Module Replacement (- BTM) |
