Fastener Specifications
Horn
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||

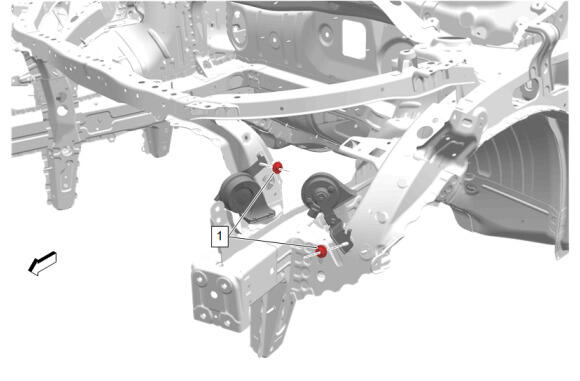

| 1 | Horn Nut [2x] | - | - | 22 N.m (16 lb ft) | Horn Replacement |
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Horn Nut [2x] | - | - | 22 N.m (16 lb ft) | Horn Replacement |
