Installation Procedure

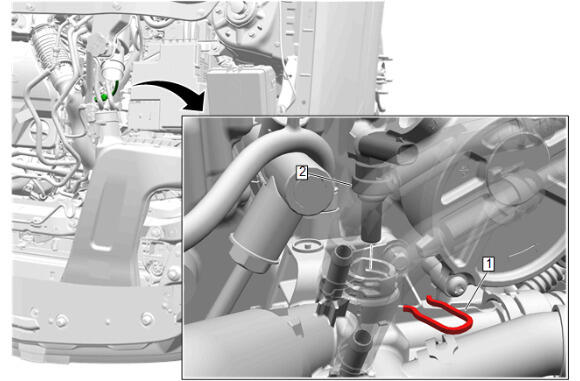

  1. GM6179829Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Temperature Sensor (2) - Install

  2. Engine Coolant Temperature Sensor Retainer Clamp (1) - Install
  3. Connect the engine coolant temperature sensor electrical connector.

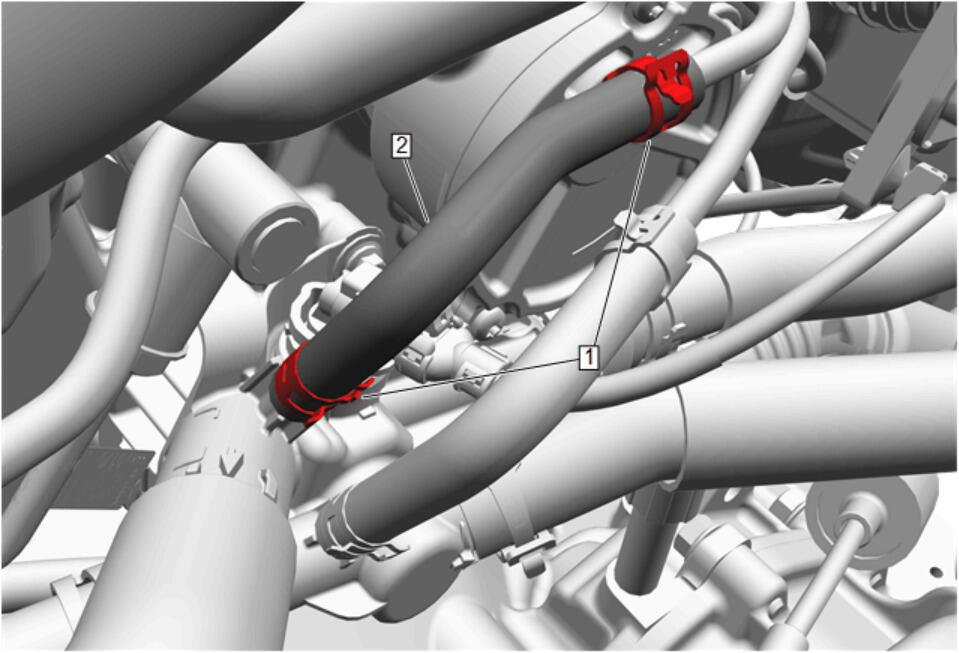

  4. GM5392548Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Coolant Return Hose (2) - Install

  5. Turbocharger Coolant Return Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type

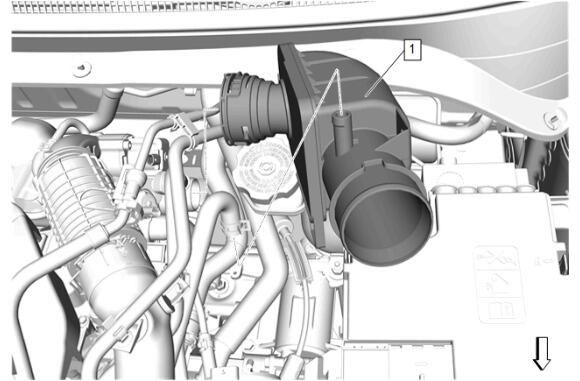

  6. GM6162736Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Rear Duct (1) - Install

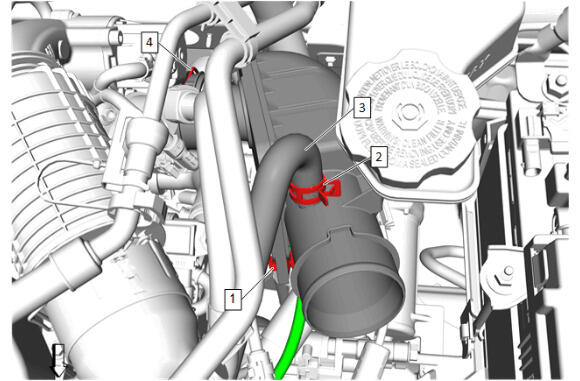

  7. GM6162735Courtesy of GENERAL MOTORS COMPANY

    Retainer Spring (4) - Engage

  8. Positive Crankcase Ventilation Oil Separator Hose (3) @ Air Cleaner Outlet Rear Duct - Install
  9. Hose Clamp (2) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  10. Wiring Harness Retainer (1) - Install
  11. GM6162734Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Front Duct (1) - Install

  12. GM6162733Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Air Cleaner Outlet Duct Clamp (2) - Tighten - Fastener Specifications

  13. Air Cleaner Clamp (1) - Tighten - Fastener Specifications
  14. Fill the cooling system. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static)
  15. Check the cooling system for leaks. Cooling System Leak Testing
