Fastener Specifications

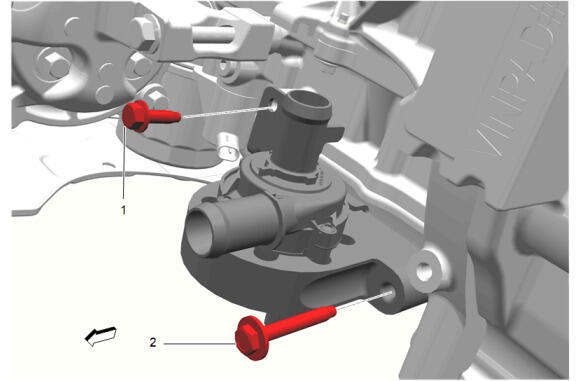

GM6192878Courtesy of GENERAL MOTORS COMPANY
Auxiliary Water Pump

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater Water Auxiliary Pump Bolt - - 9 N.m (80 lb in) Auxiliary Water Pump Replacement (Heater Coolant Pump)
2 Heater Coolant Pump Bracket Bolt - - 9 N.m (80 lb in) Auxiliary Water Pump Replacement (Heater Coolant Pump)

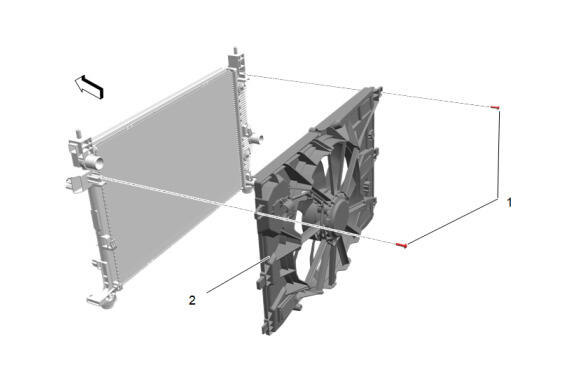

GM6195104Courtesy of GENERAL MOTORS COMPANY
Cooling Fan Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Fan Bolt [2x] - - 3 N.m (27 lb in) Cooling Fan Motor Replacement
GEMPTY001Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Heater

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Heater Bolt - - 22 N.m (16 lb ft) Engine Coolant Heater Replacement

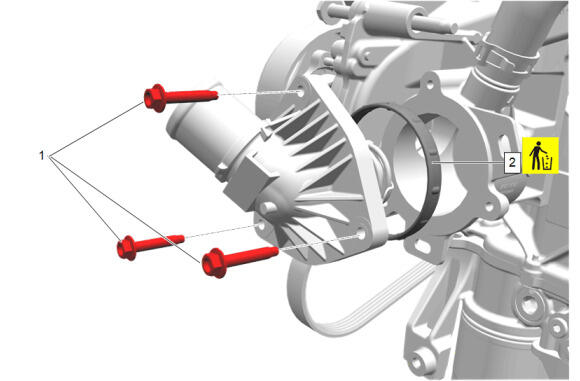

GM6202671Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Thermostat

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Thermostat Bolt [3x] - - 8.5 N.m (75 lb in) Engine Coolant Thermostat Replacement
2 Engine Coolant Thermostat Gasket Yes - - Engine Coolant Thermostat Replacement

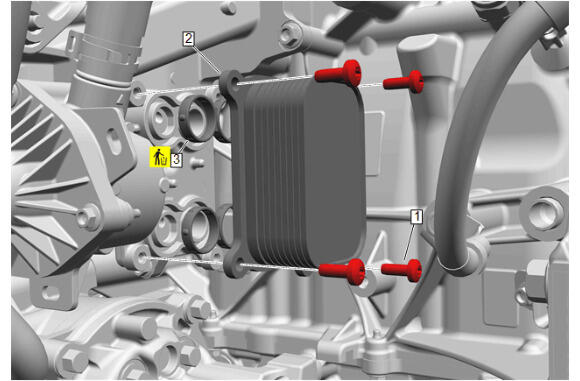

GM5392535Courtesy of GENERAL MOTORS COMPANY
Engine Oil Cooler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Oil Cooler Bolt [3x] - - 8.5 N.m (75 lb in) Engine Oil Cooler Replacement (KL9) , or Engine Oil Cooler Replacement (- KL9)
3 Engine Oil Cooler Gasket Yes - - Engine Oil Cooler Replacement (KL9) , or Engine Oil Cooler Replacement (- KL9)
GM6202529Courtesy of GENERAL MOTORS COMPANY
Engine Radiator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Fan Bolt [2x] - - 3 N.m (27 lb in) Engine Radiator Replacement

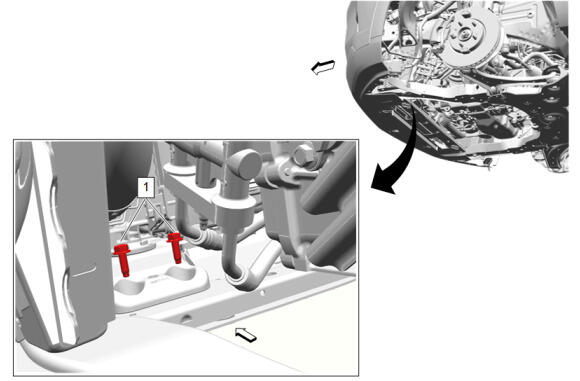

GM6180077Courtesy of GENERAL MOTORS COMPANY
Radiator Lower Bracket - Left Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Lower Bracket Bolt - - 22 N.m (16 lb ft) Radiator Lower Bracket Replacement - Left Side

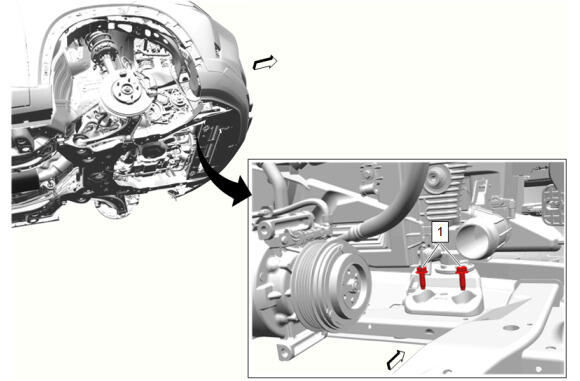

GM6180079Courtesy of GENERAL MOTORS COMPANY
Radiator Lower Bracket - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Lower Bracket Bolt - - 22 N.m (16 lb ft) Radiator Lower Bracket Replacement - Right Side

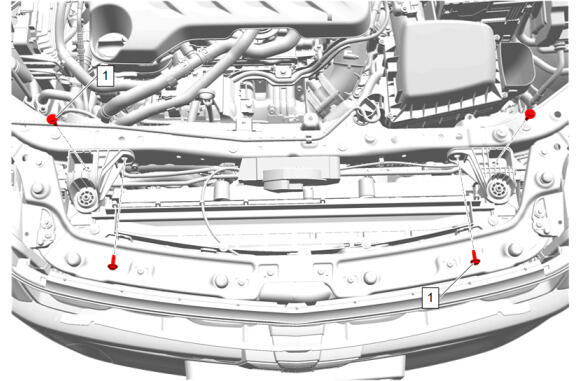

GM5965392Courtesy of GENERAL MOTORS COMPANY
Radiator Upper Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Upper Bracket Bolt [2x] - - 9 N.m (80 lb in) Radiator Upper Bracket Replacement - Left Side
2 Radiator Upper Bracket Bolt [2x] - - 9 N.m (80 lb in) Radiator Upper Bracket Replacement - Right Side

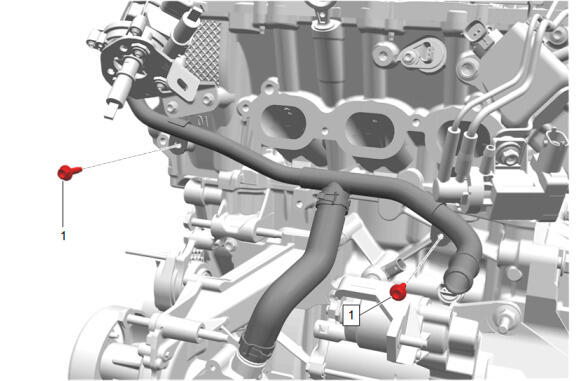

GM6202673Courtesy of GENERAL MOTORS COMPANY
Thermostat Bypass Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Thermostat Bypass Pipe Bolt [2x] - - 8.5 N.m (75 lb in) Thermostat Bypass Pipe Replacement
GM6202680Courtesy of GENERAL MOTORS COMPANY

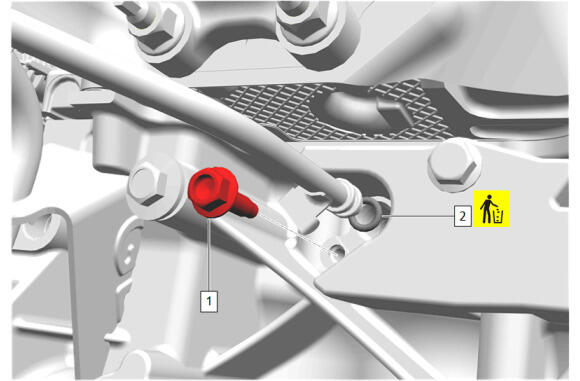

Turbocharger Coolant Feed Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Coolant Feed Pipe Bolt - - 8.5 N.m (75 lb in) Turbocharger Coolant Feed Pipe Replacement
2 Turbocharger Coolant Feed Pipe Seal Yes - - Turbocharger Coolant Feed Pipe Replacement

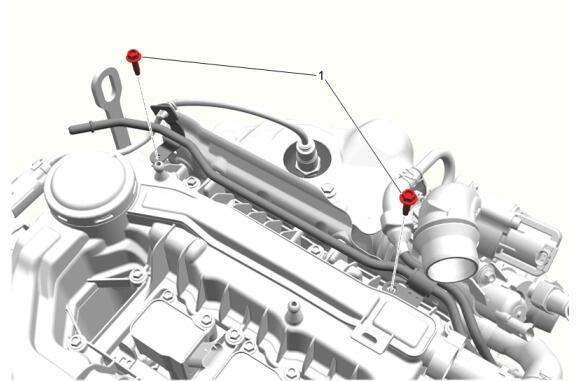

GM6202682Courtesy of GENERAL MOTORS COMPANY
Turbocharger Coolant Return Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Coolant Return Pipe Bolt [2x] - - 8.5 N.m (75 lb in) Turbocharger Coolant Return Pipe Replacement

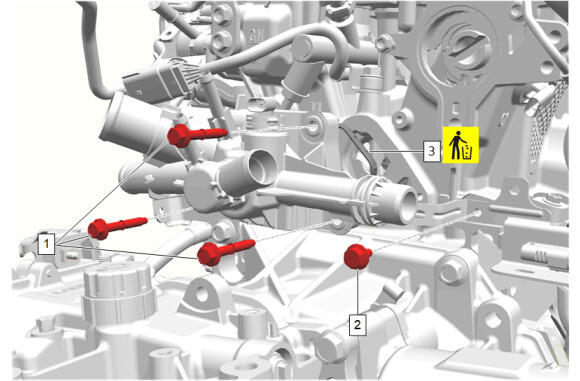

GM6202683Courtesy of GENERAL MOTORS COMPANY
Water Outlet

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Water Outlet Bolt [3x] - - 8.5 N.m (75 lb in) Water Outlet Replacement
2 Engine Wiring Harness Bracket Bolt - - 9 N.m (80 lb in) Water Outlet Replacement
3 Water Outlet Gasket Yes - - Water Outlet Replacement

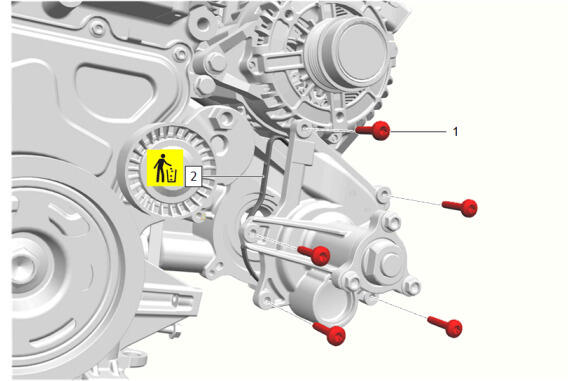

GM6202684Courtesy of GENERAL MOTORS COMPANY
Water Pump Housing

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Water Pump Housing Bolt [5x] - - 6 N.m (53 lb in) Water Pump Housing Replacement
2 Water Pump Gasket Yes - - Water Pump Housing Replacement

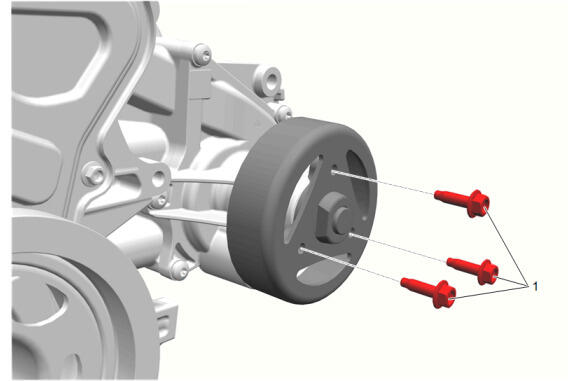

GM6202686Courtesy of GENERAL MOTORS COMPANY
Water Pump Pulley

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Water Pump Pulley Bolt [3x] - - 15 N.m (11 lb ft) Water Pump Pulley Replacement

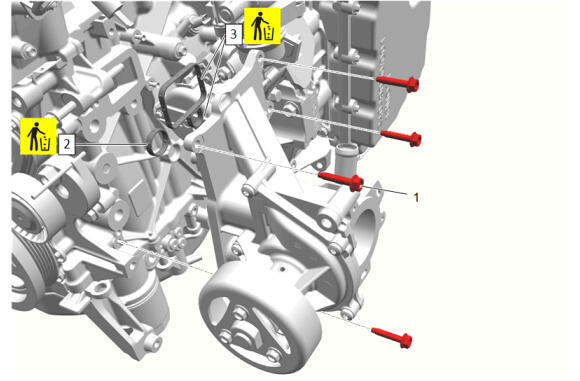

GM6202687Courtesy of GENERAL MOTORS COMPANY
Water Pump

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Water Pump Bolt [4x] - - 15 N.m (11 lb ft) Water Pump Replacement
2 Water Pump Housing Gasket Yes - - Water Pump Replacement
3 Water Pump Housing Gasket Yes - - Water Pump Replacement
