Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Drivetrain and Front Suspension Cradle - Remove - Drivetrain and Front Suspension Cradle Removal and Installation
- Place match marks on the steering linkage tie rod adjuster nut and the steering linkage inner tie rod.
Steering Linkage Outer Tie Rod (1) - Remove
Steering Linkage Tie Rod Adjuster Nut (1) - Remove

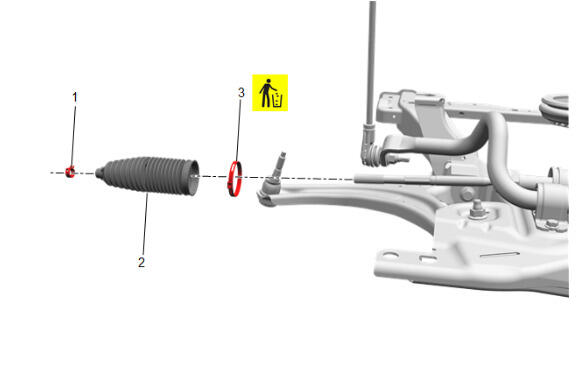

Steering Gear Boot Inner Clamp- Small Clamp (1) - Remove
- Steering Gear Boot Inner Clamp - Large Clamp (3) - Remove and DISCARD
- Steering Gear Boot (2) - Remove
