Float Level

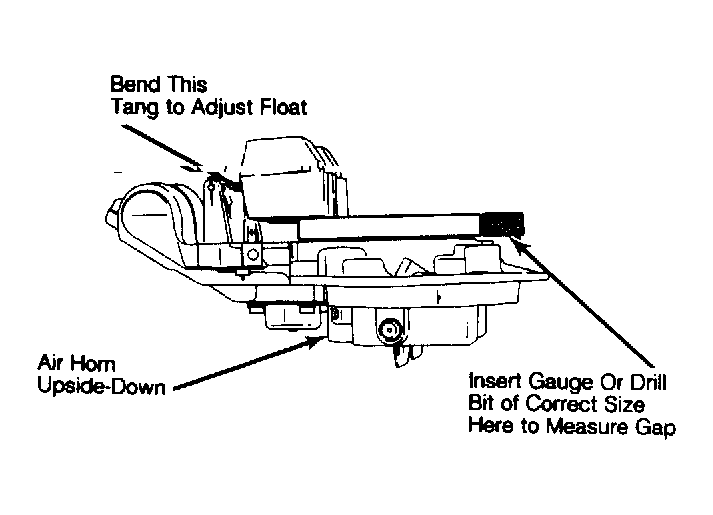

- With air horn removed, turn carburetor upside down. Allow weight of float to press down against float needle valve. See Fig 1 .
- Measure float level specified clearance between top of float and air horn gasket surface. Clearance can be checked using a specified drill or pin gauge.
- Make sure float tang still rests on float needle when clearance is checked. To adjust, bend float tang.
NOTE:
DO NOT
apply pressure to float needle while checking or changing adjustment.
