Oxygen Sensor R & I: Installation

Coat threads of new sensor with nickel-based anti-seize compound. Do not use graphite or other compounds. Start sensor by hand, then tighten to 35 ft. lbs. (47 N.m). Install air cleaner and connect battery cable.

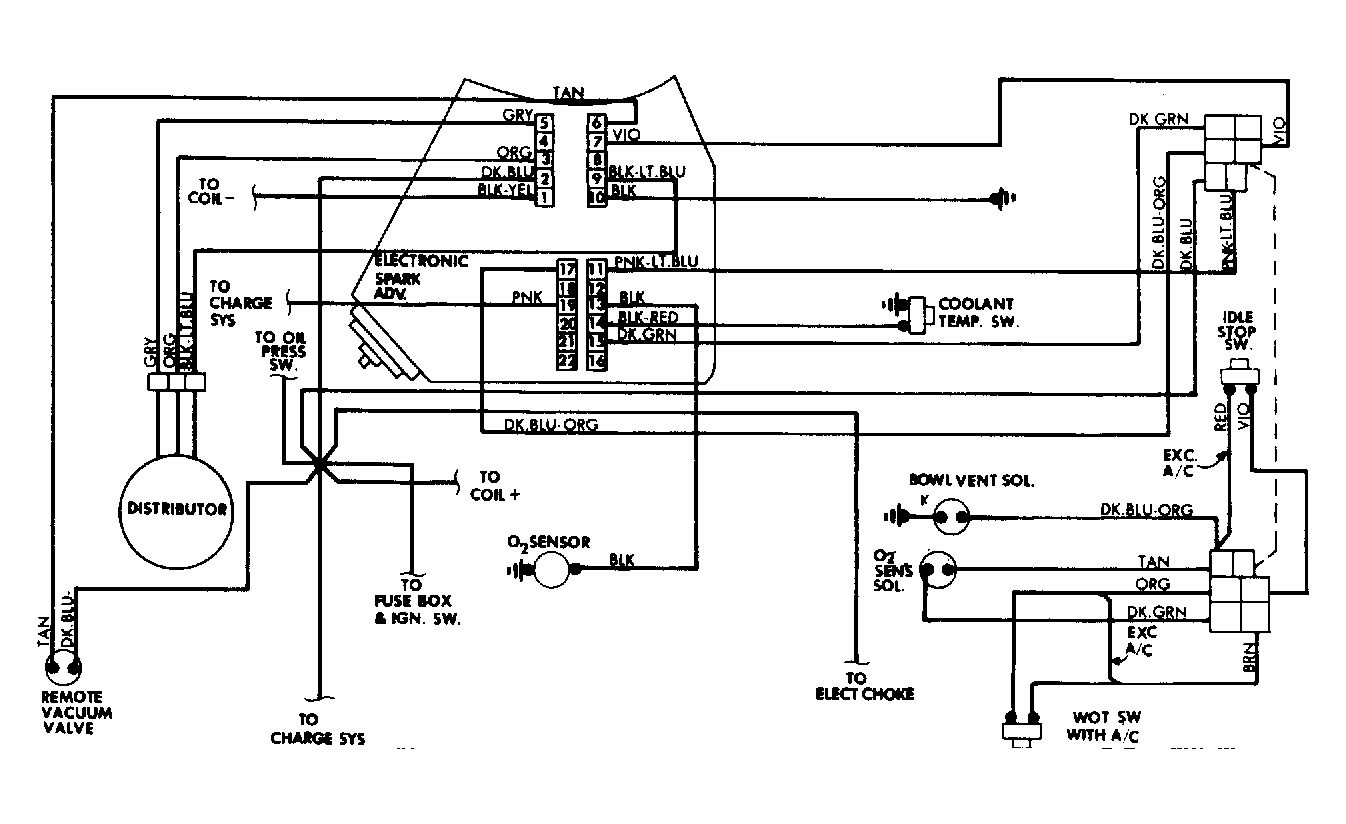

Fig 1: Wiring Diagram for EFC System
G131
