Test Connector Identification

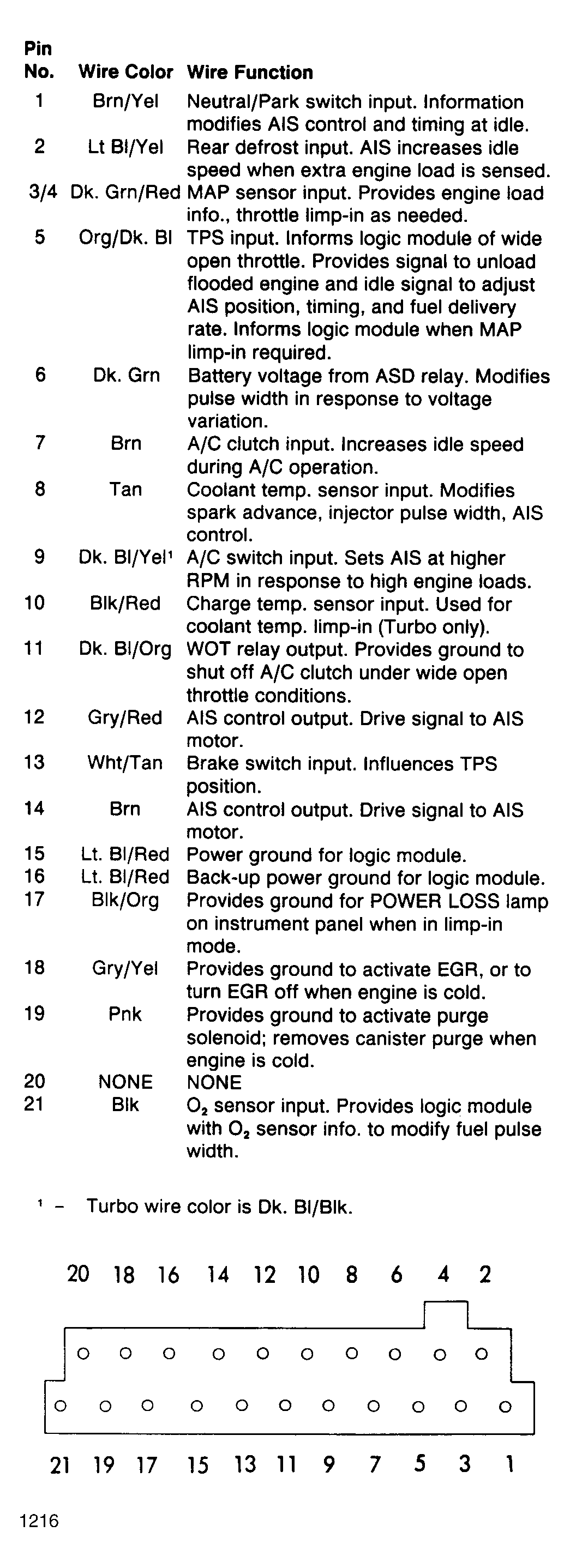

Fig 1: Logic Module Connector No. 1 Pin Identification

Fig 2: Speed Sensor Connector Pin Identification

Fig 3: Logic Module Connector No. 2 Pin Identification

Fig 4: 10-Pin Connector Pin Identification

Fig 5: 12-Pin Connector Pin Identification

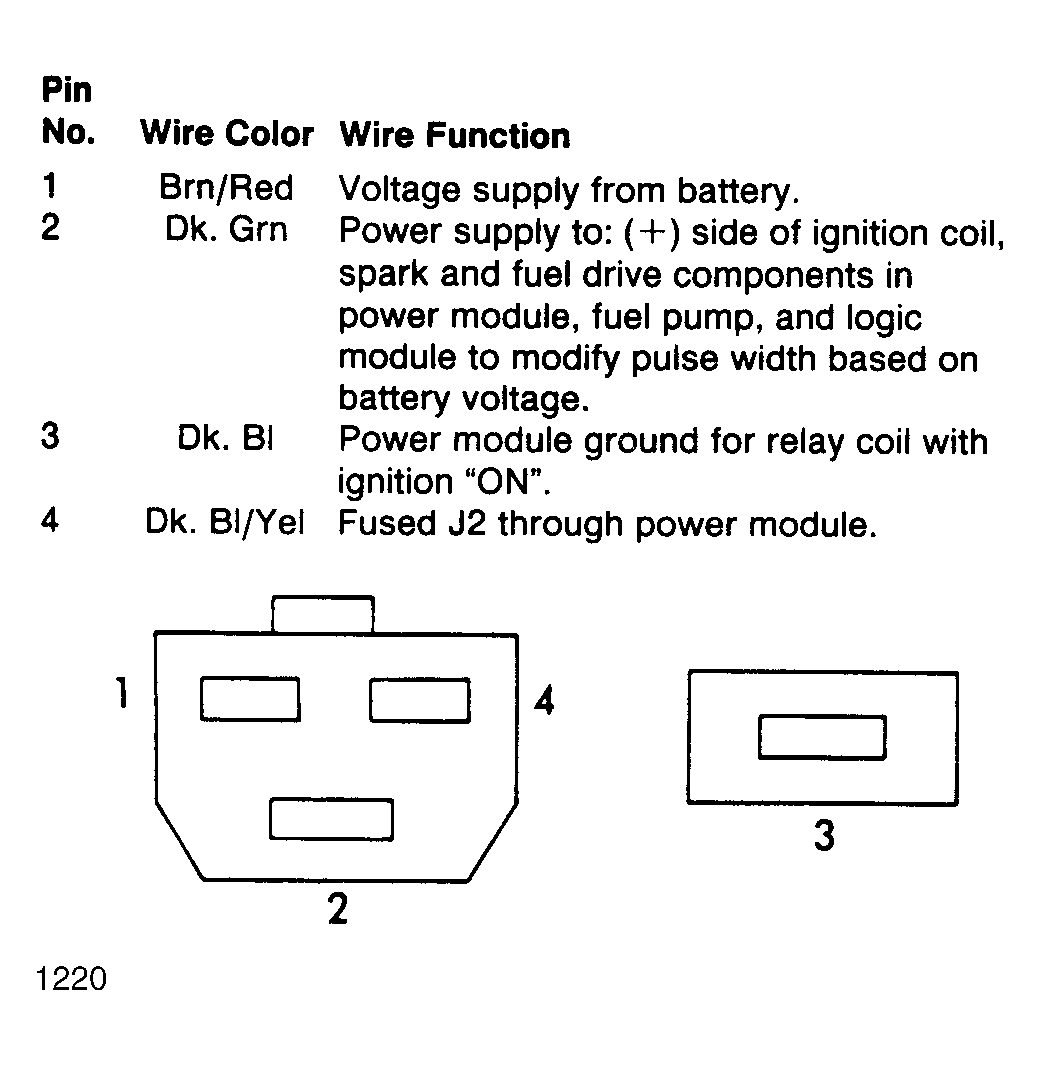

Fig 6: Auto-Shutdown (ASD) Relay Connector Pin Identification

Fig 7: Distributor Connector Pin Identification
