Fuel Injection System - Multi-Point: Wiring Diagram

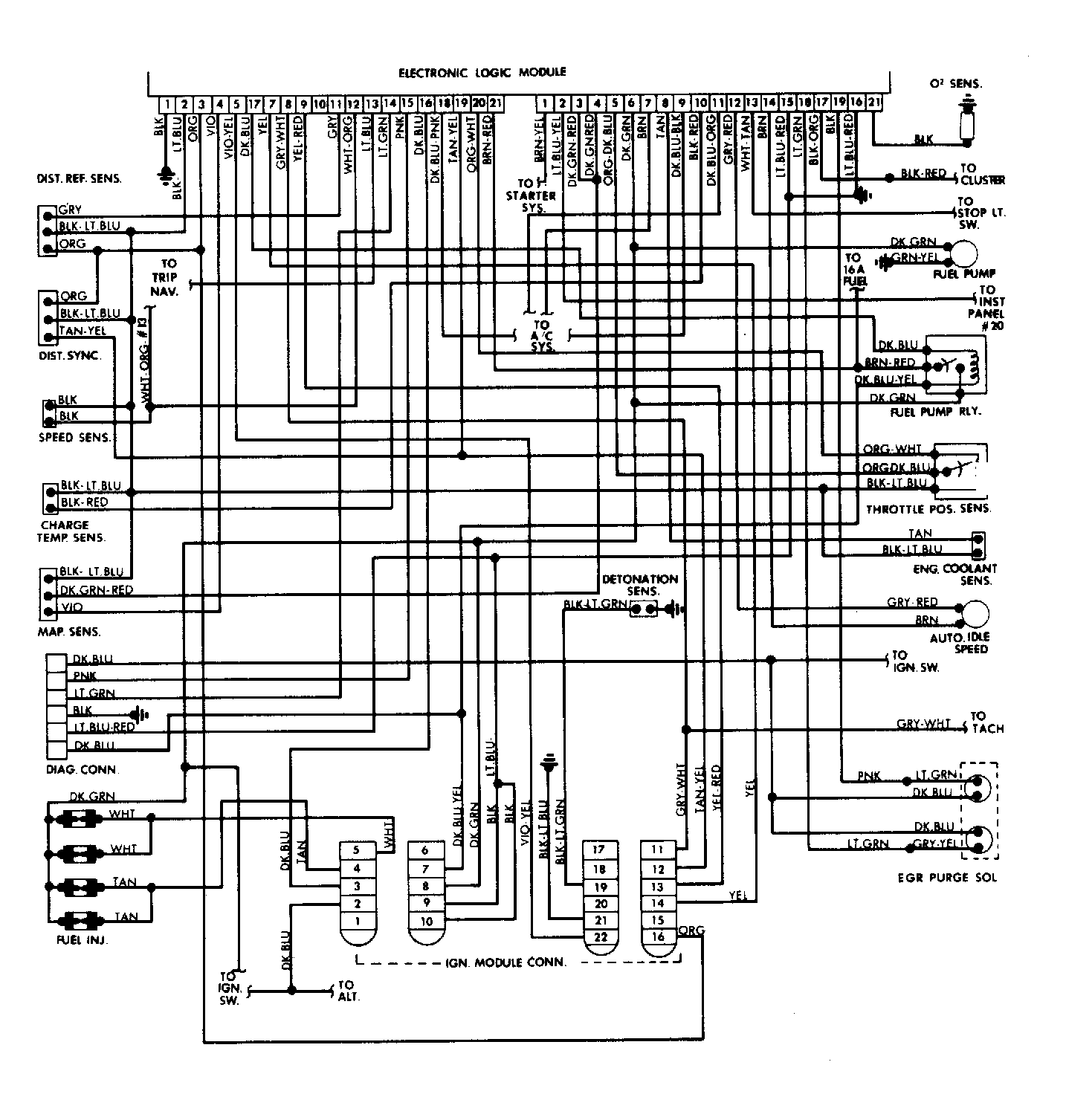

Fig 1: Multi-Point Electronic Fuel Injection System Wiring
G1603
