Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location | |
|---|---|---|
| A/C Clutch Cycling Switch | On expansion valve. See Figure. | |

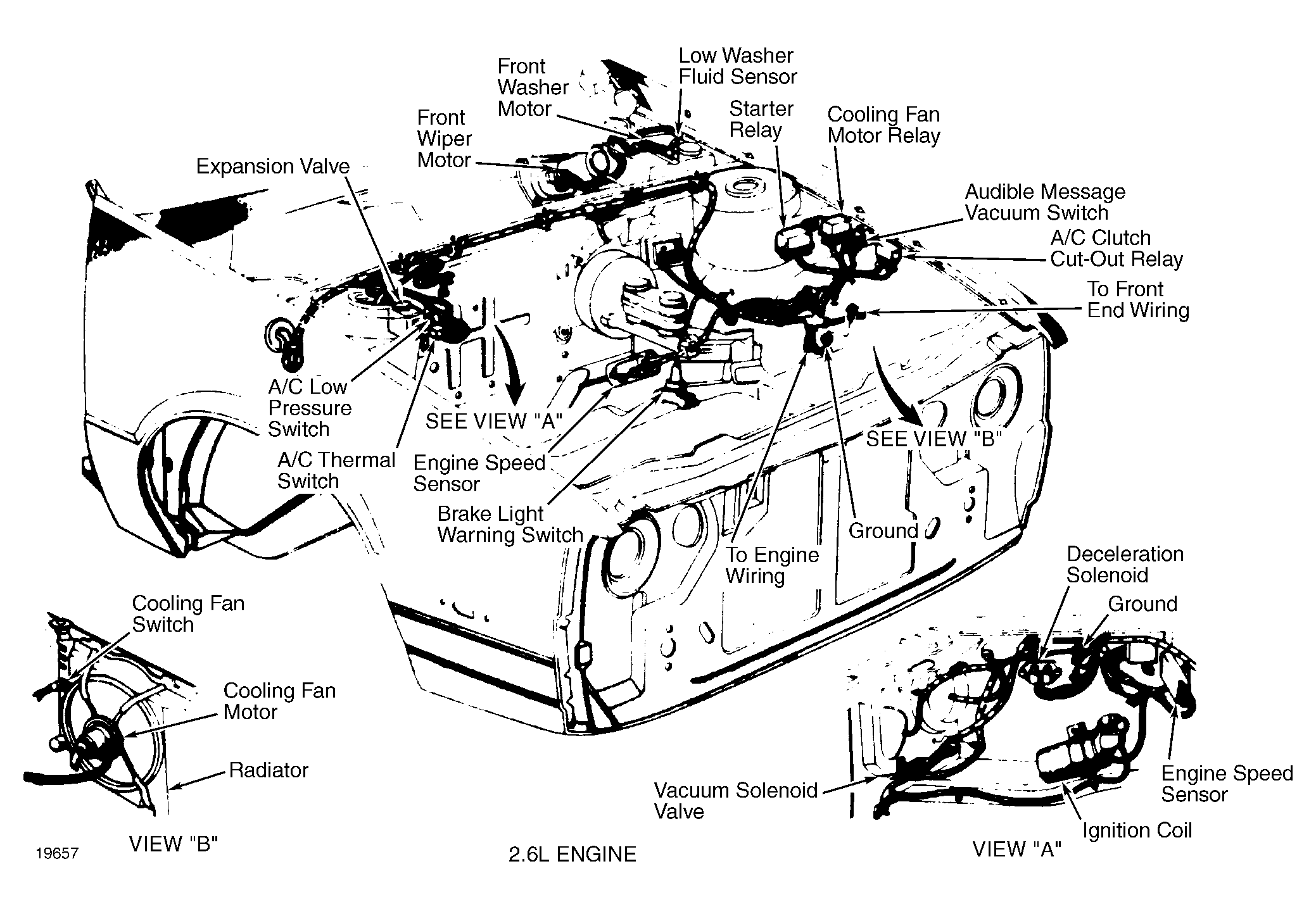

| A/C Low Pressure Switch | On expansion valve at right side of dash panel. See Figure, Figure, Figure & Figure . | |
| A/C Thermal Switch | On expansion valve. See Figure, Figure & Figure . | |
| Audible Message Vacuum Switch | At left inner fender panel. See Figure, Figure & Figure . | |
| Back-Up Light Switch | On side of transaxle case. | |
| Brake/Stop Light Switch | On brake support bracket. | |
| Brake Light Warning Switch | On left side of frame below master cylinder. See Figure, Figure & Figure . | |
| Carburetor Switch | At end of idle stop on carburetor. | |
| Charge Temperature Switch | On top of intake manifold. See Figure. | |
| Coolant Switch | On thermostat housing (behind distributor on 2.6L). See Figure, Figure & Figure . | |
| Cooling Fan Switch | On left side of radiator. See. Figure, Figure & Figure . | |
| Engine Temperature Switch | On upper left side of engine. See Figure & Figure. | |
| Neutral/Start Switch | On side of transaxle case. | |
| Oil Pressure Switch | ||

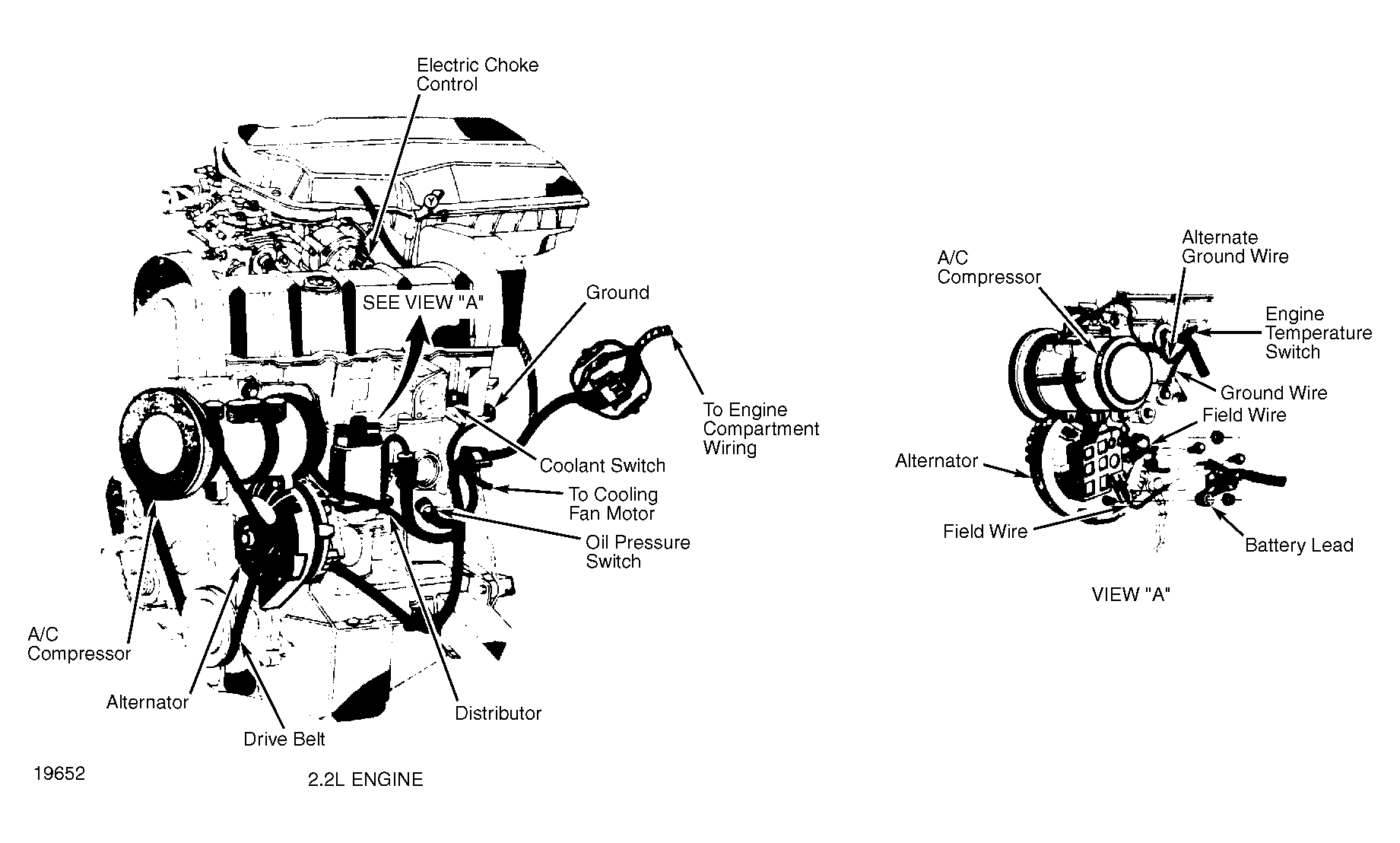

| 2.2L | On lower left side of engine block. See Figure, Figure & Figure . | |
| 2.6L | Near oil filter. See Figure, Figure & Figure . | |
| Parking Brake Switch | On upper left side of cowl. | |
