Control Cables: Notes

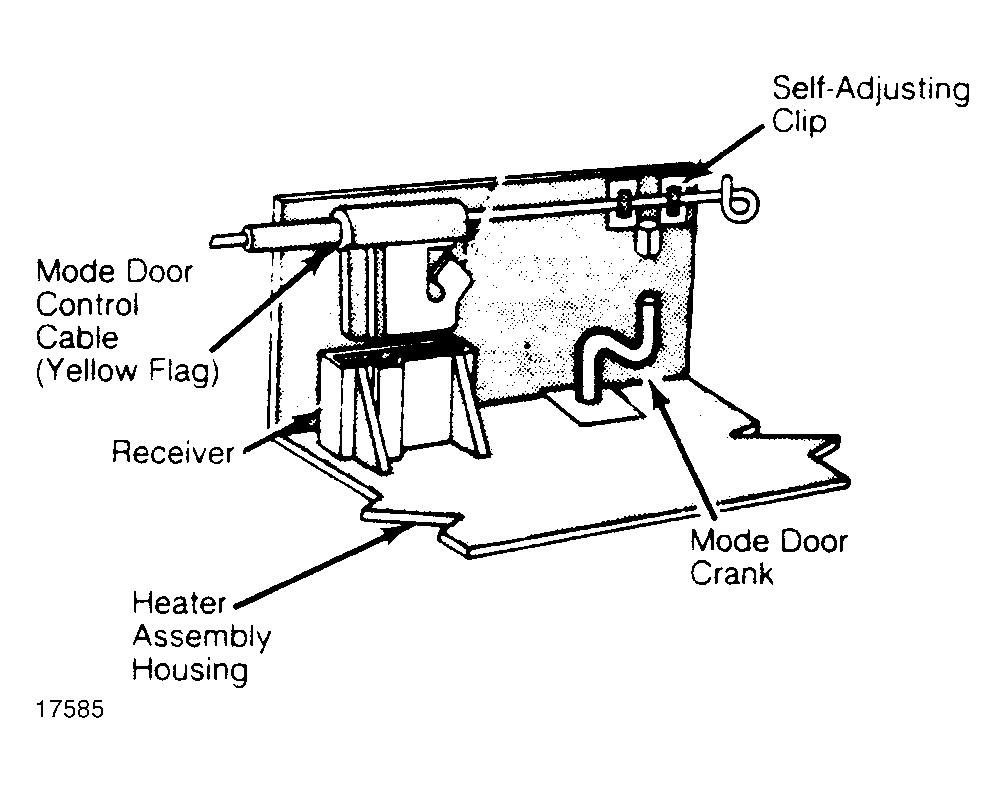

Mode control cable (Front Wheel Drive models only) and temperature control cable (all models) are attached to the heater control by color coded, "T" shaped snap-in flags. A Red flag is used for temperature cable and a Yellow flag (larger than Red flag) for mode control. Control cables attach to the heater assembly by means of a ribbed snap-in flag.
Rib provides installation orientation and retention. Flag may be removed only after tab has been depressed into receiver. Top panel cover, center air duct and heater control panel must be removed to adjust temperature control cable.
