Ignition System: Overhaul

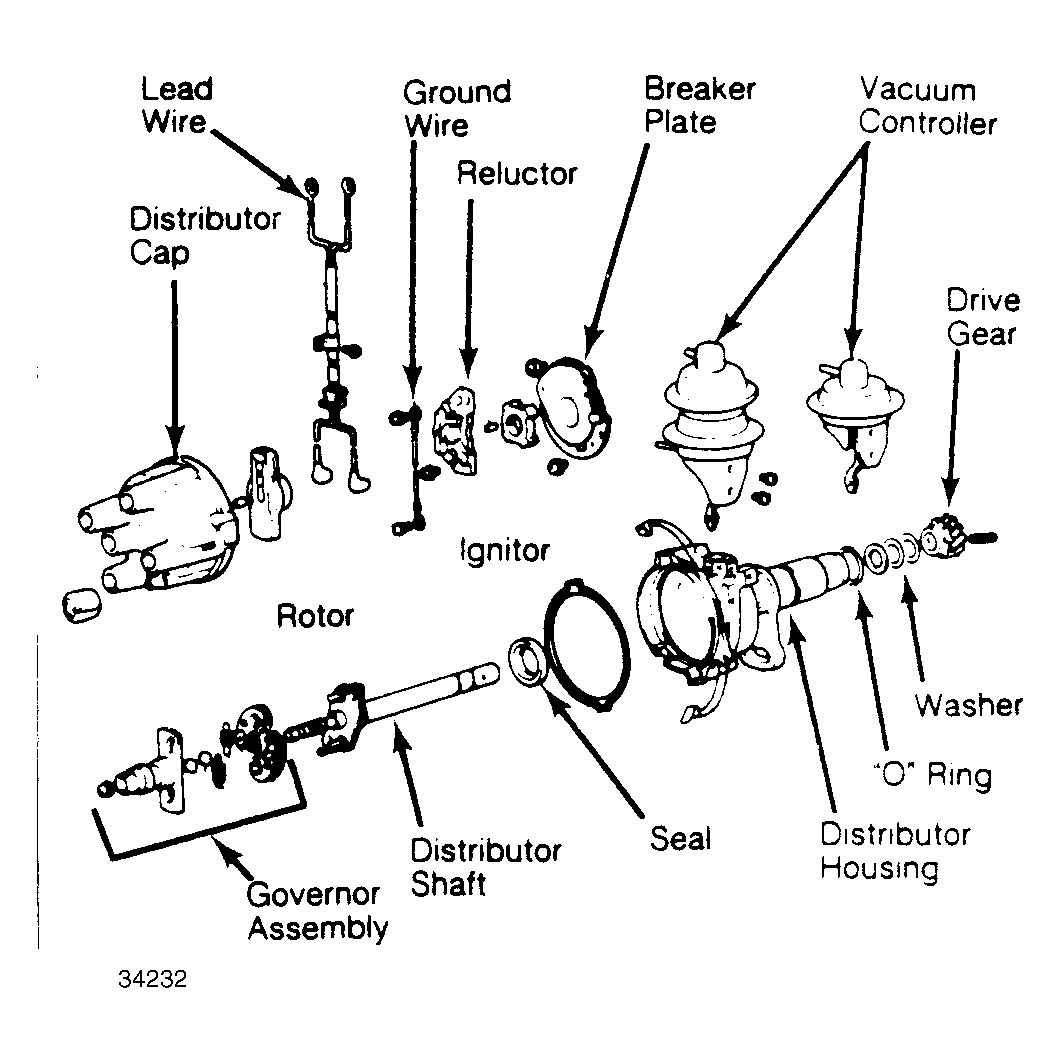

Fig 1: Exploded View of Chrysler Motors 2.6L Engines

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

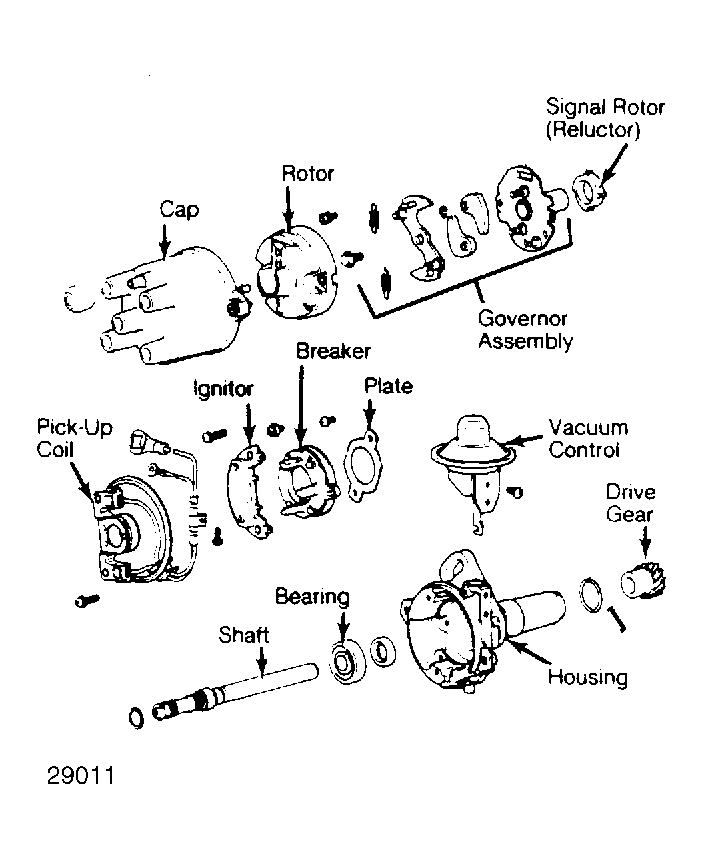

Fig 2: Exploded View of Chrysler Motors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
