Testing (Symptom Tests)

To diagnose by symptom, see Fig 1 , Fig 2 , Fig 3 and Fig 4 . Figures have symptoms numbered 1 through 10. ASC refers to the Automatic Speed Control system.

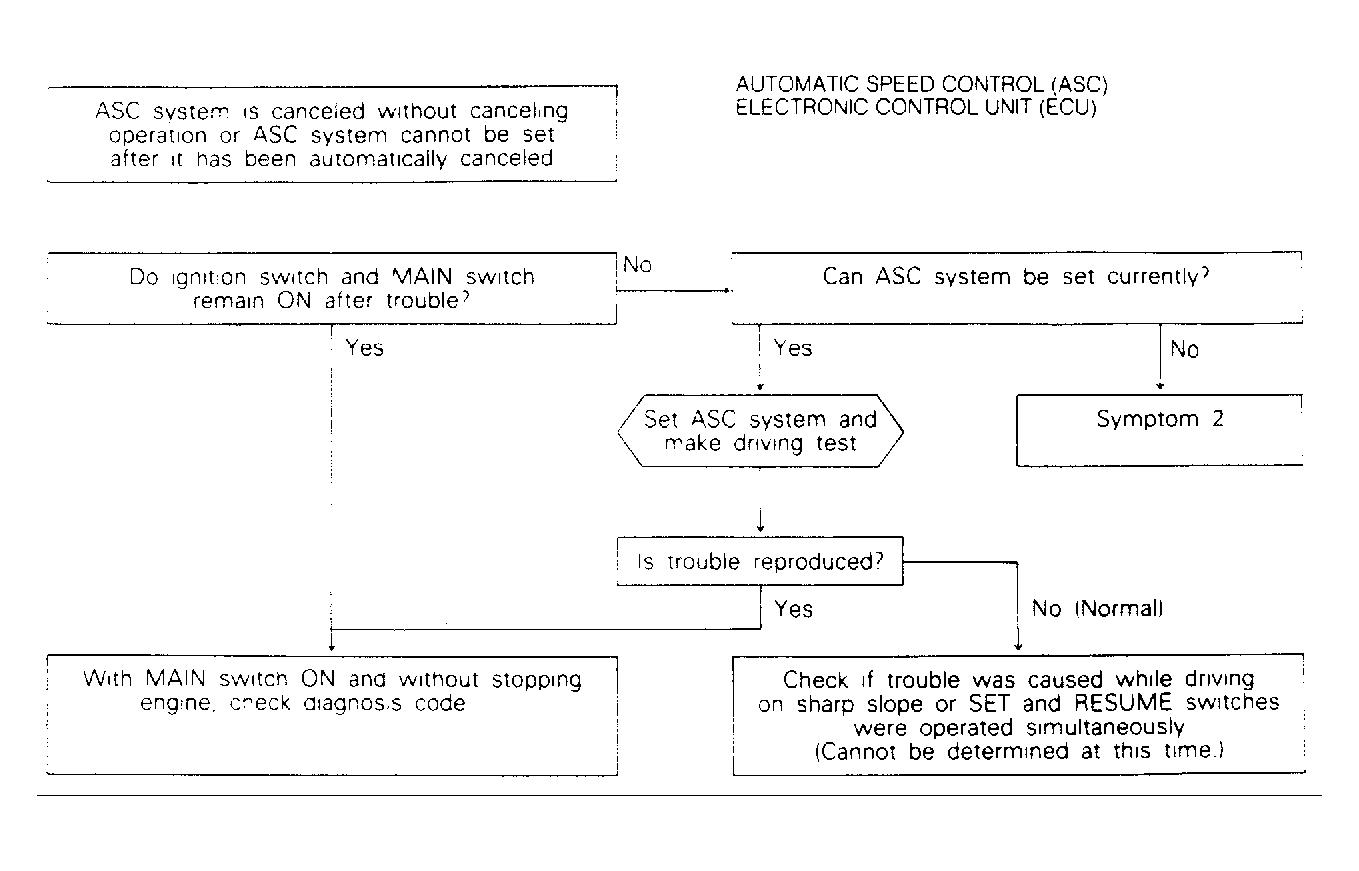

Fig 1: Symptom 1 - ASC Canceled w/o Canceling Operation/ASC Cannot Be Set After Automatically Canceled

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

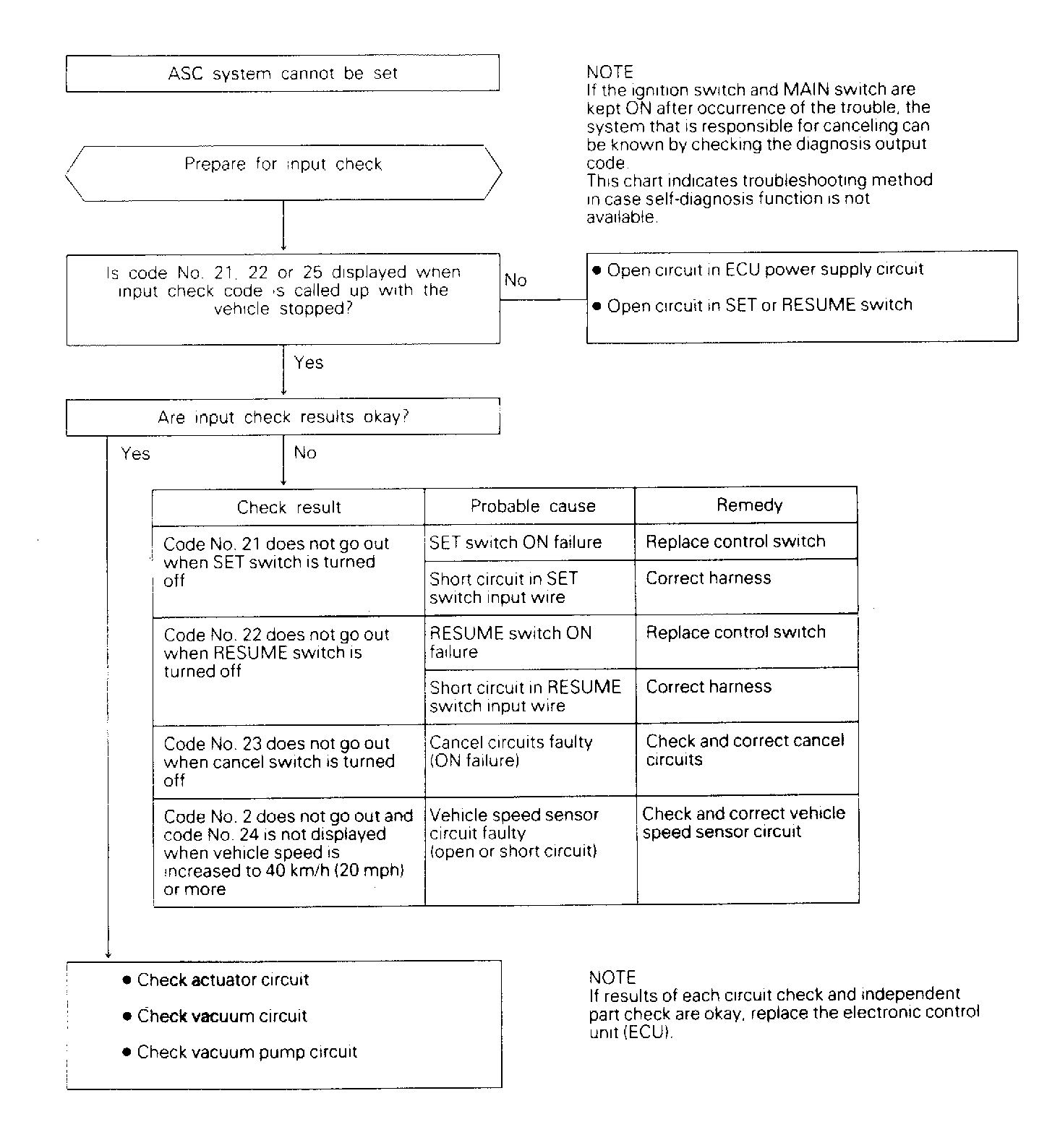

Fig 2: Symptom 2 - ASC Cannot Be Set

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

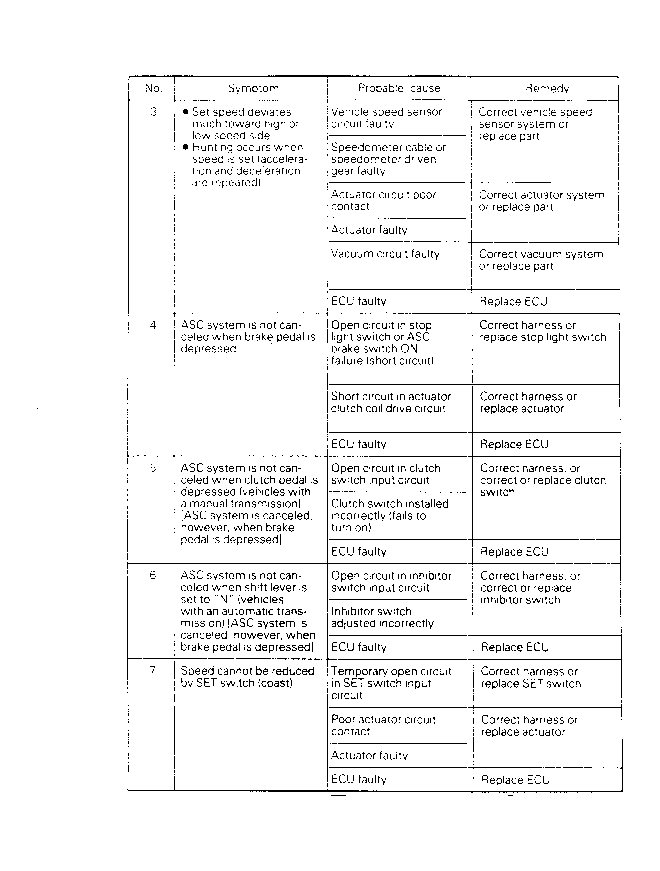

Fig 3: Symptoms 3-7 - Multiple ASC Symptoms (1 of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

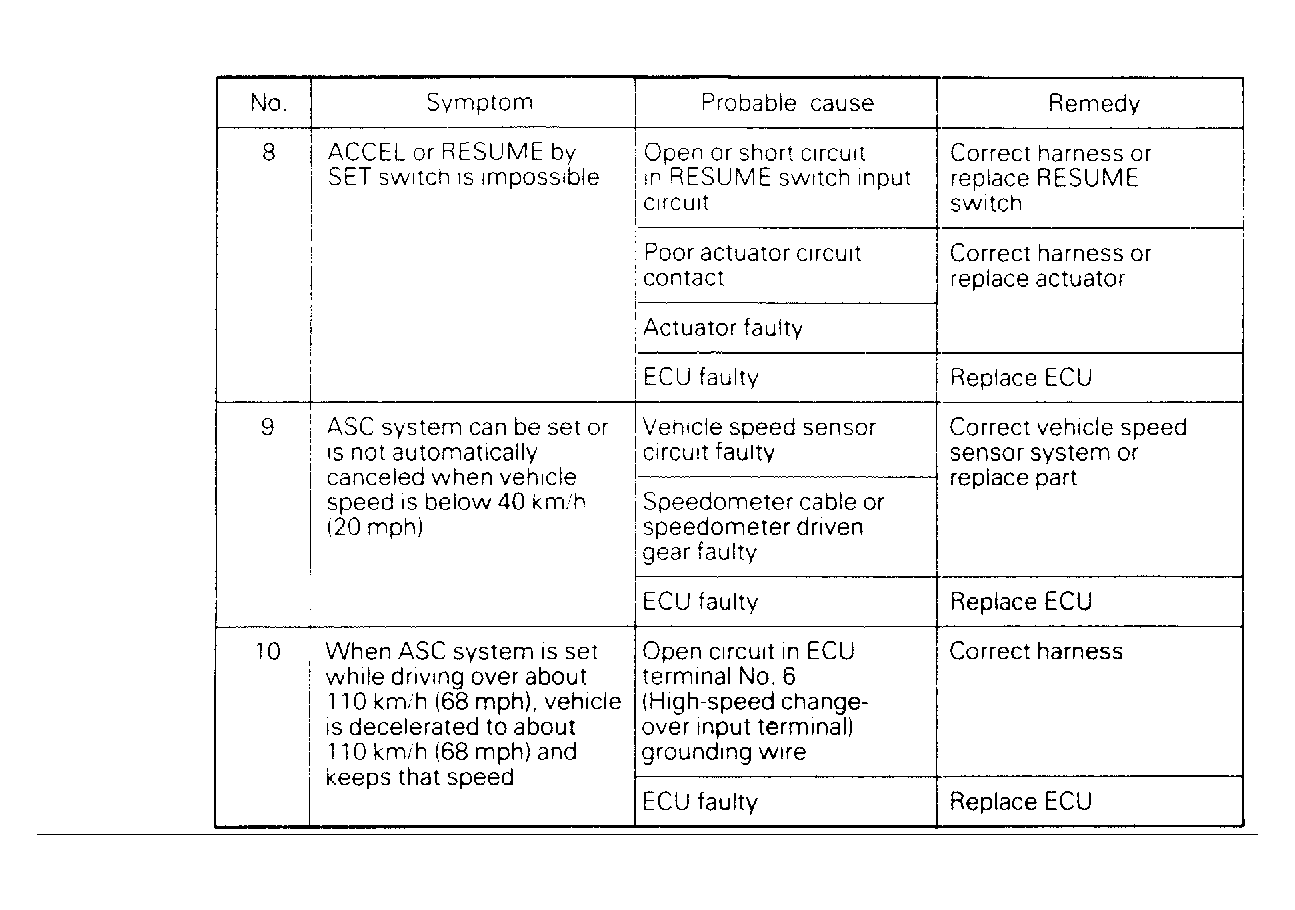

Fig 4: Symptoms 8-10 - Multiple ASC Symptoms (2 of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

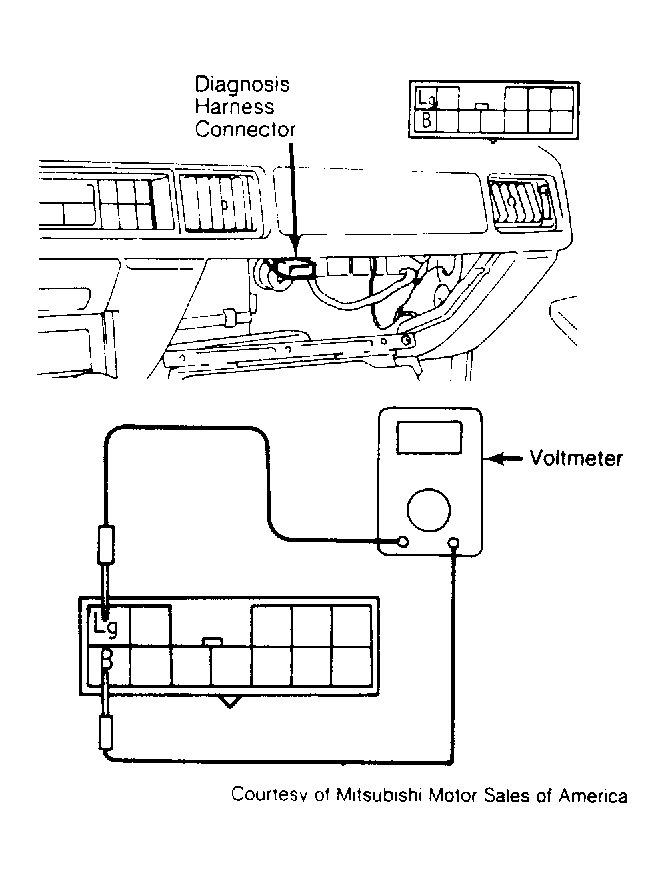

Fig 5: Diagnostic Harness Connector & Terminal Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
