System/Component Tests - TBI
›
Ignition System
›
Ignition Switch
Ignition Switch
Using an ohmmeter, ensure continuity is present in proper switch positions. See
Fig 1
.

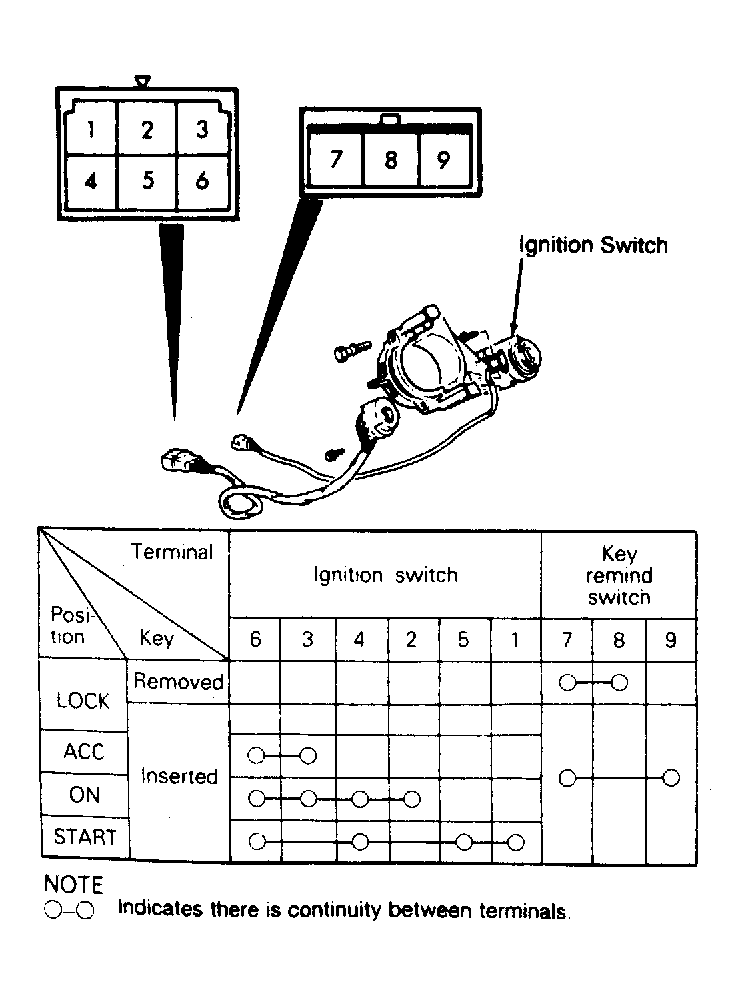

Fig 1: Checking Ignition Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
