Service Point Locations

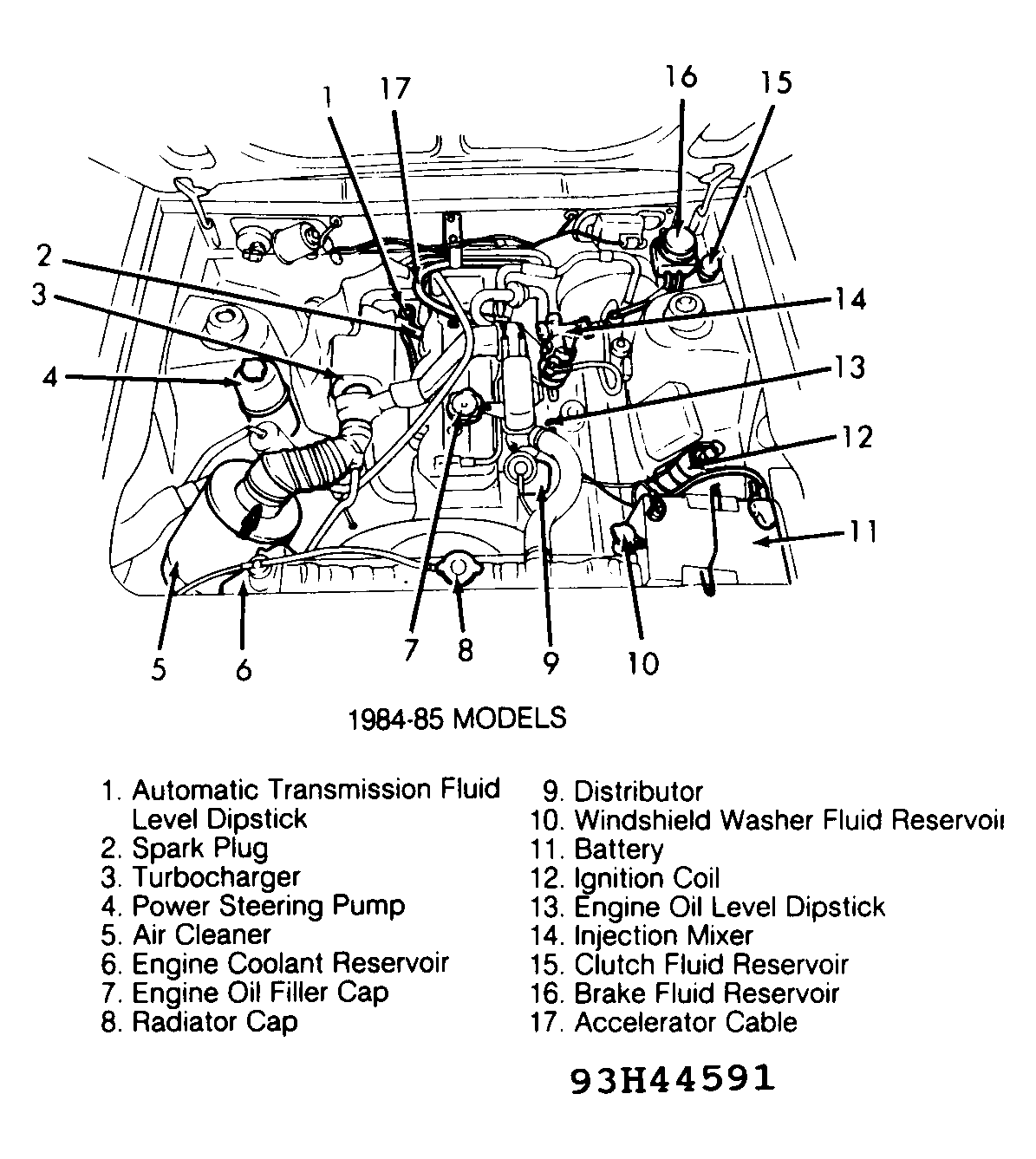

Fig 1: Engine Service Point Locations (1984-85)
G93H44591Courtesy of CHRYSLER CORP.

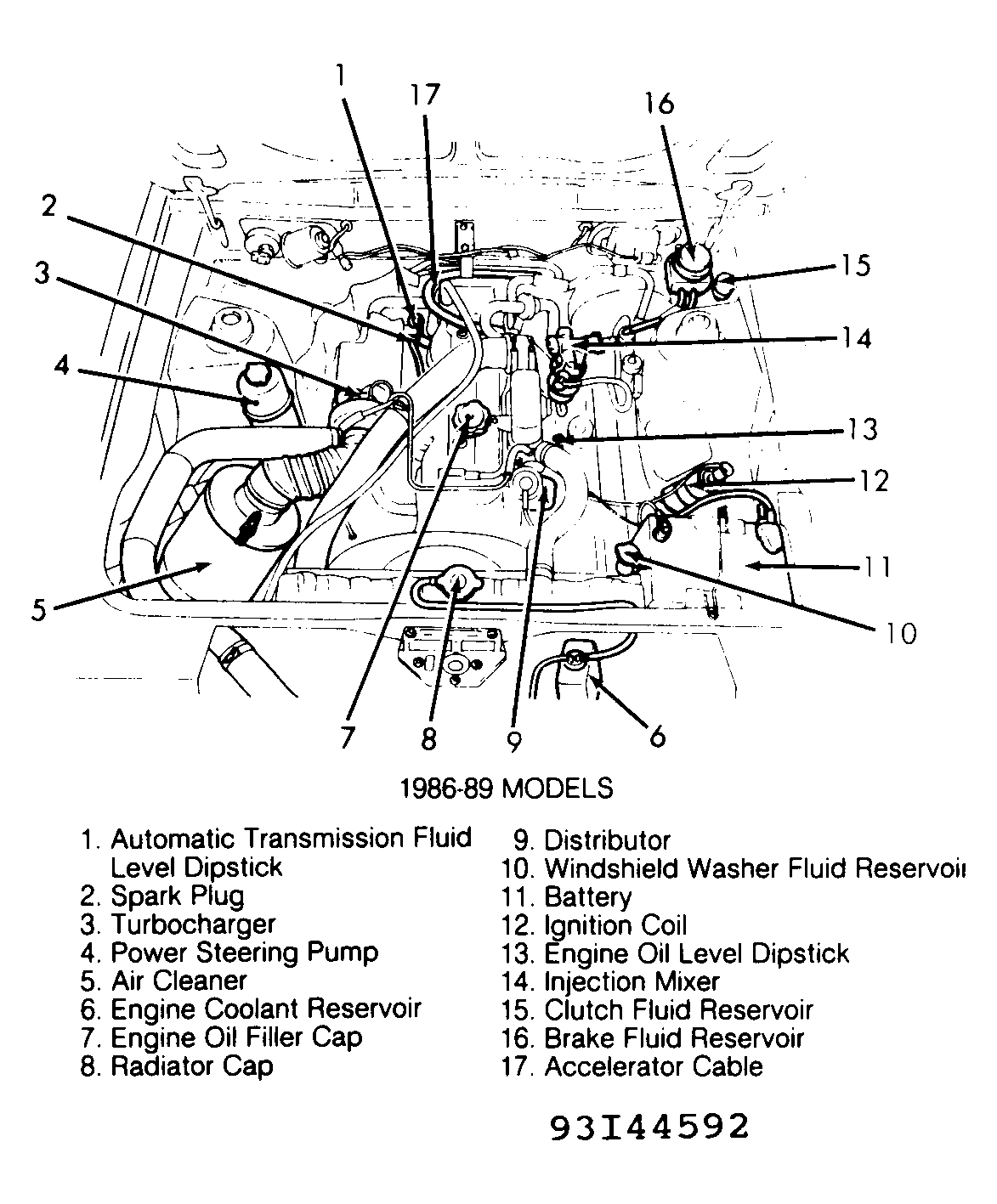

Fig 2: Engine Service Point Locations (1986-89)
G93I44592Courtesy of CHRYSLER CORP.
