Repair and Diagnosis (Single Page)
›
Engine Performance
›
System
›
3.0L MPFI Tests W/Codes
›
Speed Control Test
›
SP-3 - Testing Speed Control Switch
SP-3 - Testing Speed Control Switch

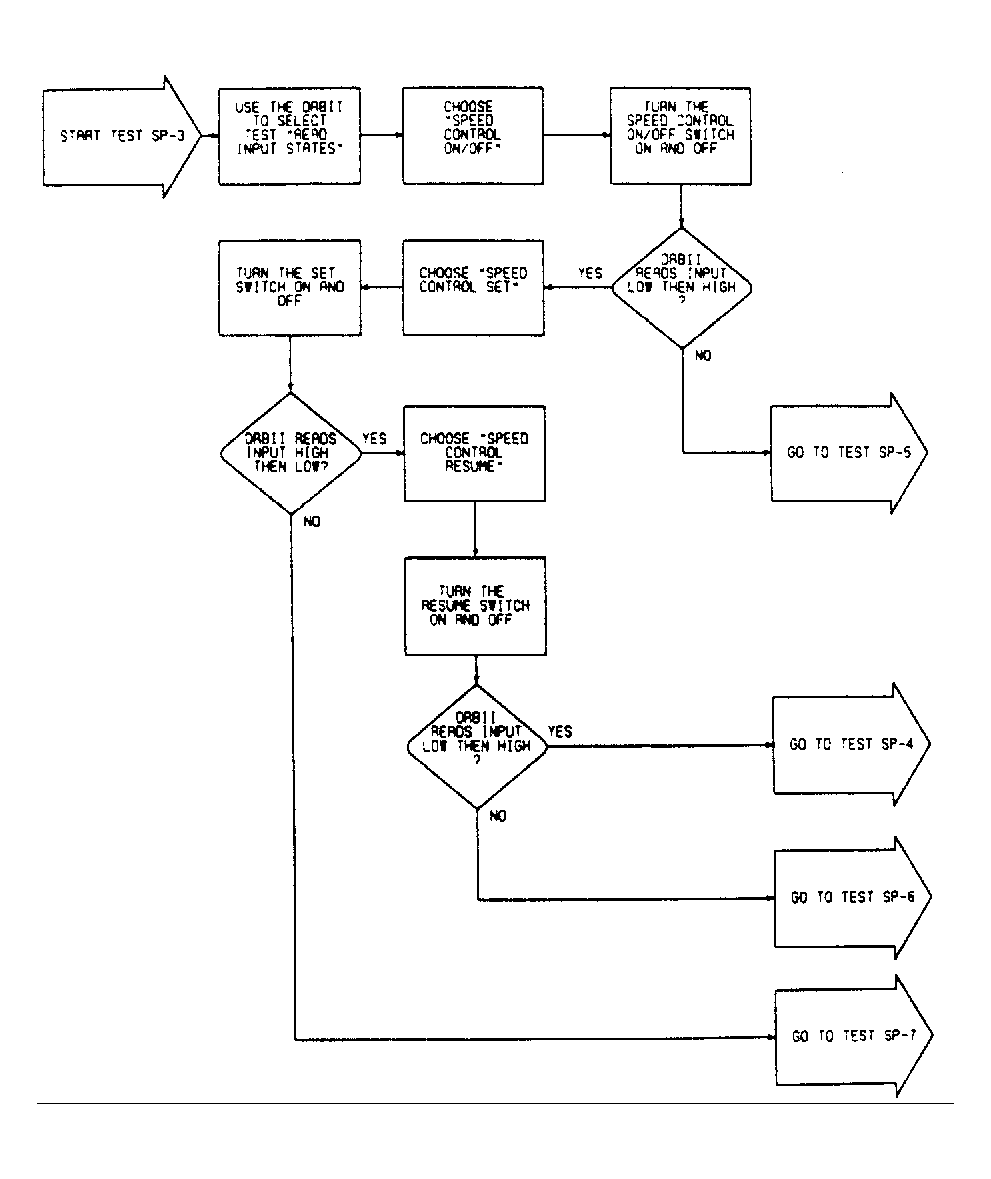

Fig 1: SP-3 - Testing Speed Control Switch
