Ch-6, Checking Charging System With No Codes
Ch-6, Checking Charging System With No Codes

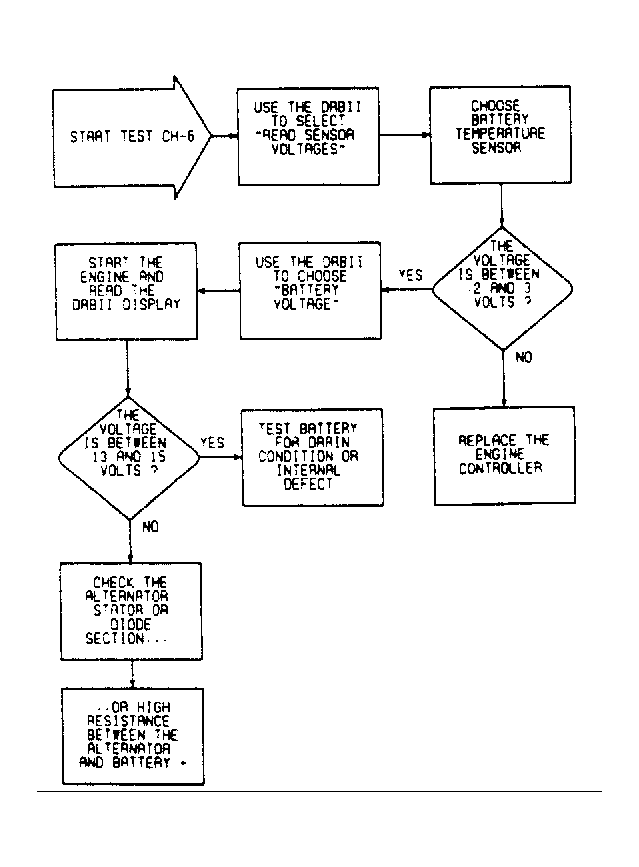

Fig 1: CH-6, Checking Charging System With NO Codes
