Dr-22, Fault Message "EGR System Failure" Check

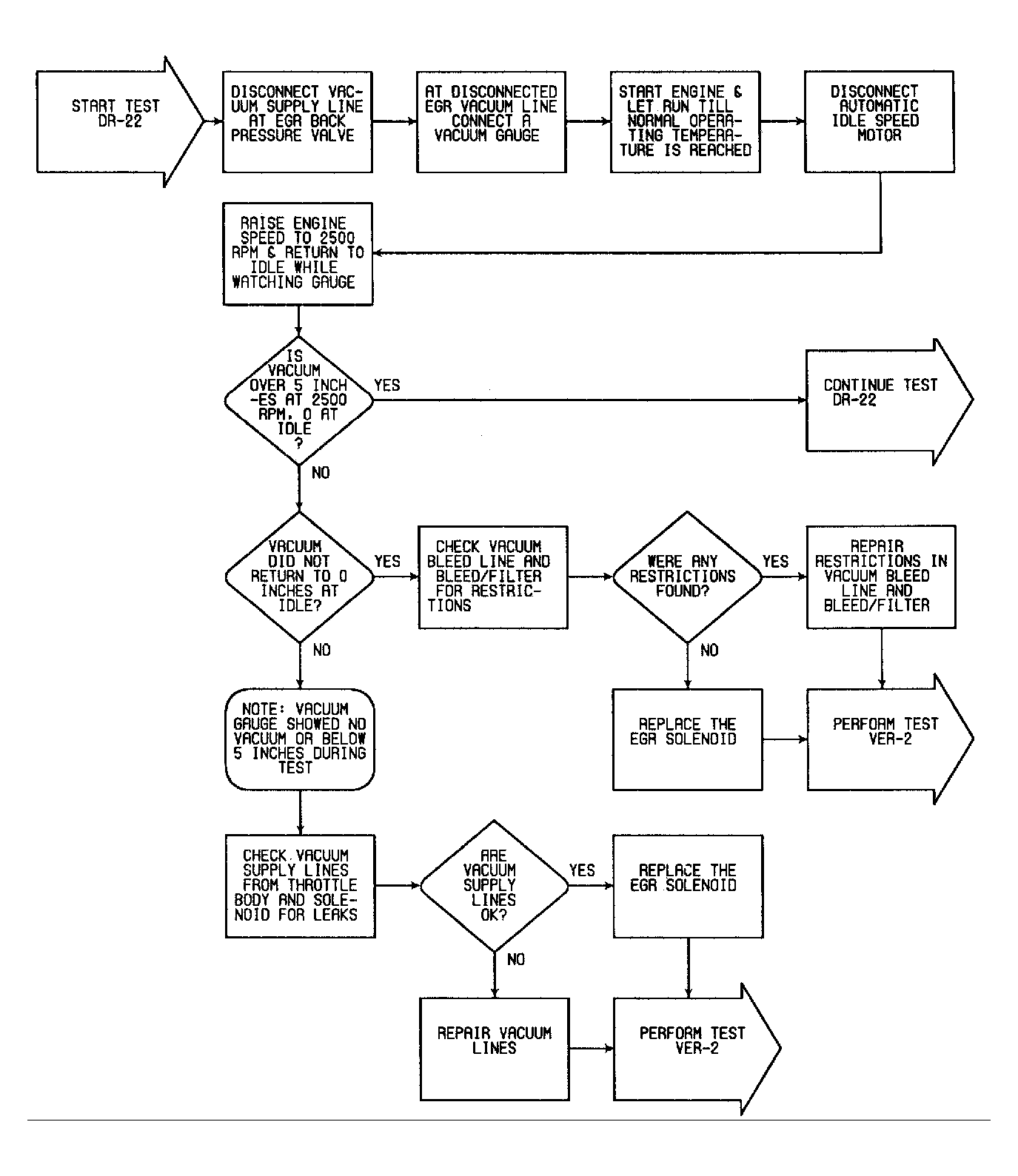

Fig 1: DR-22, Fault Message "EGR System Failure" (1 of 4) Check

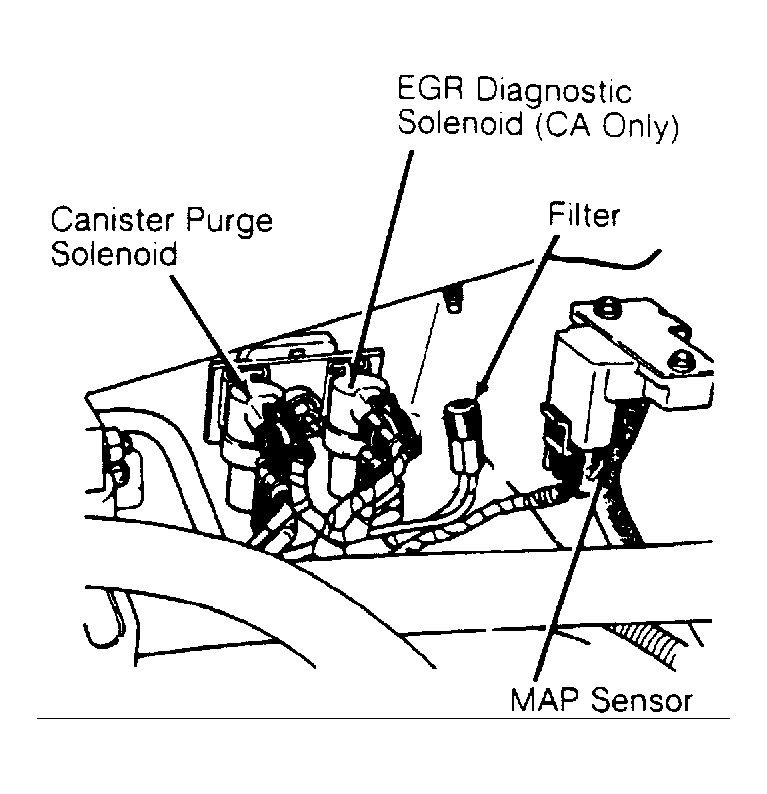

Fig 2: DR-22, Fault Message "EGR System Failure" (2 of 4) Check

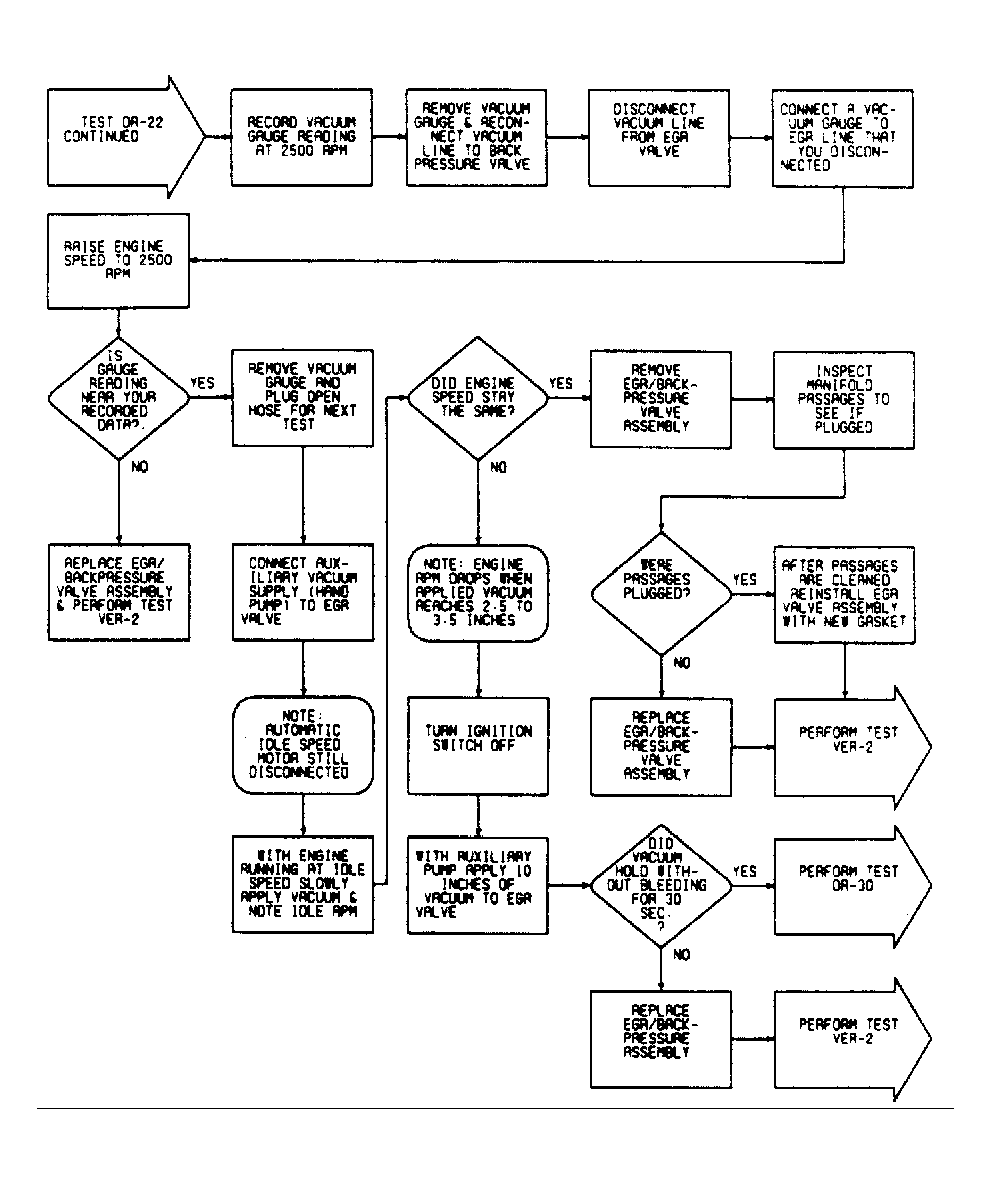

Fig 3: DR-22, Fault Message "EGR System Failure" (3 of 4) Check

Fig 4: DR-22, Fault Message "EGR System Failure" (4 of 4) Check
