Dr-34, Checking Oxygen Sensor

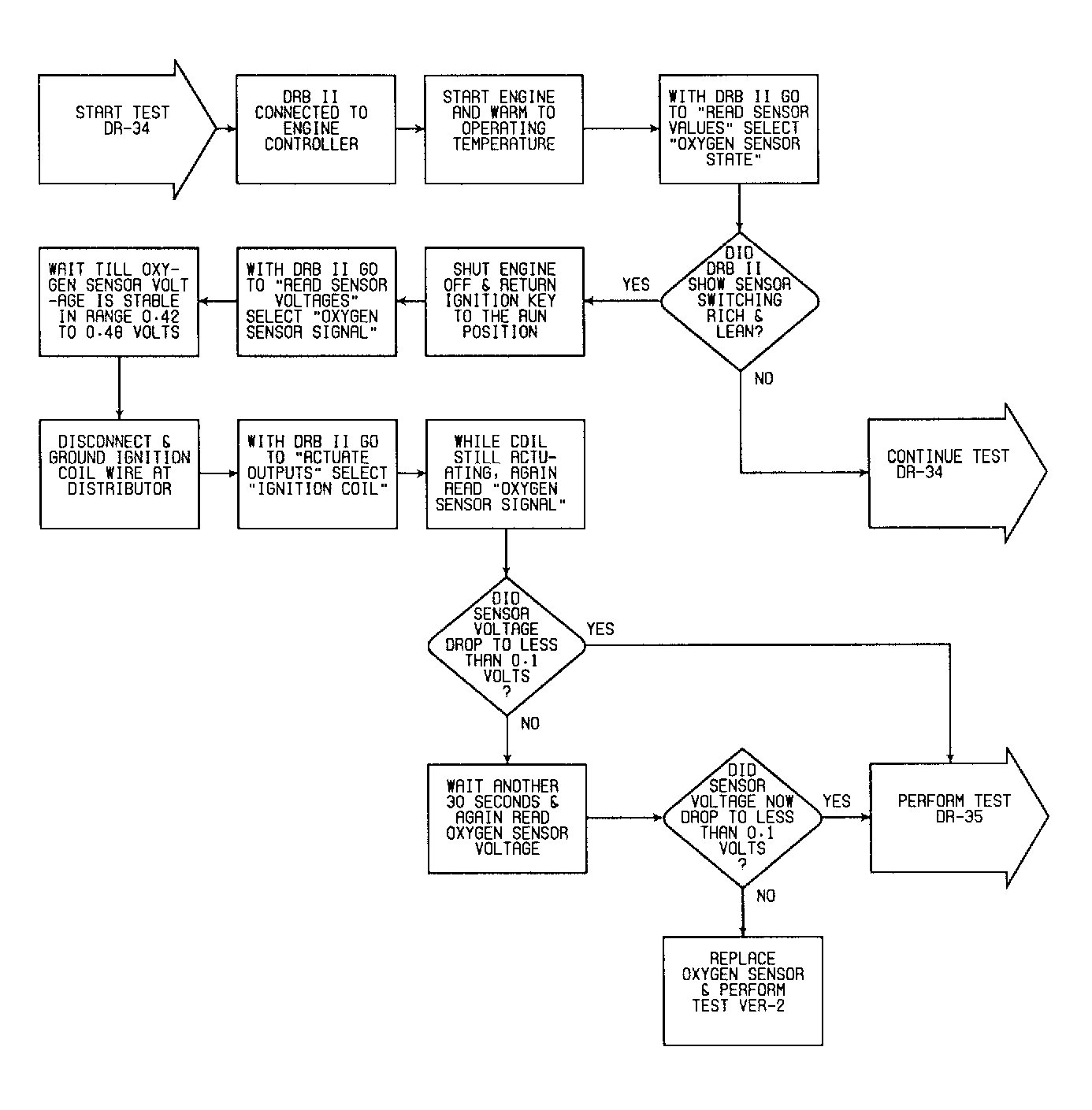

Fig 1: DR-34, Checking Oxygen Sensor (1 of 4)

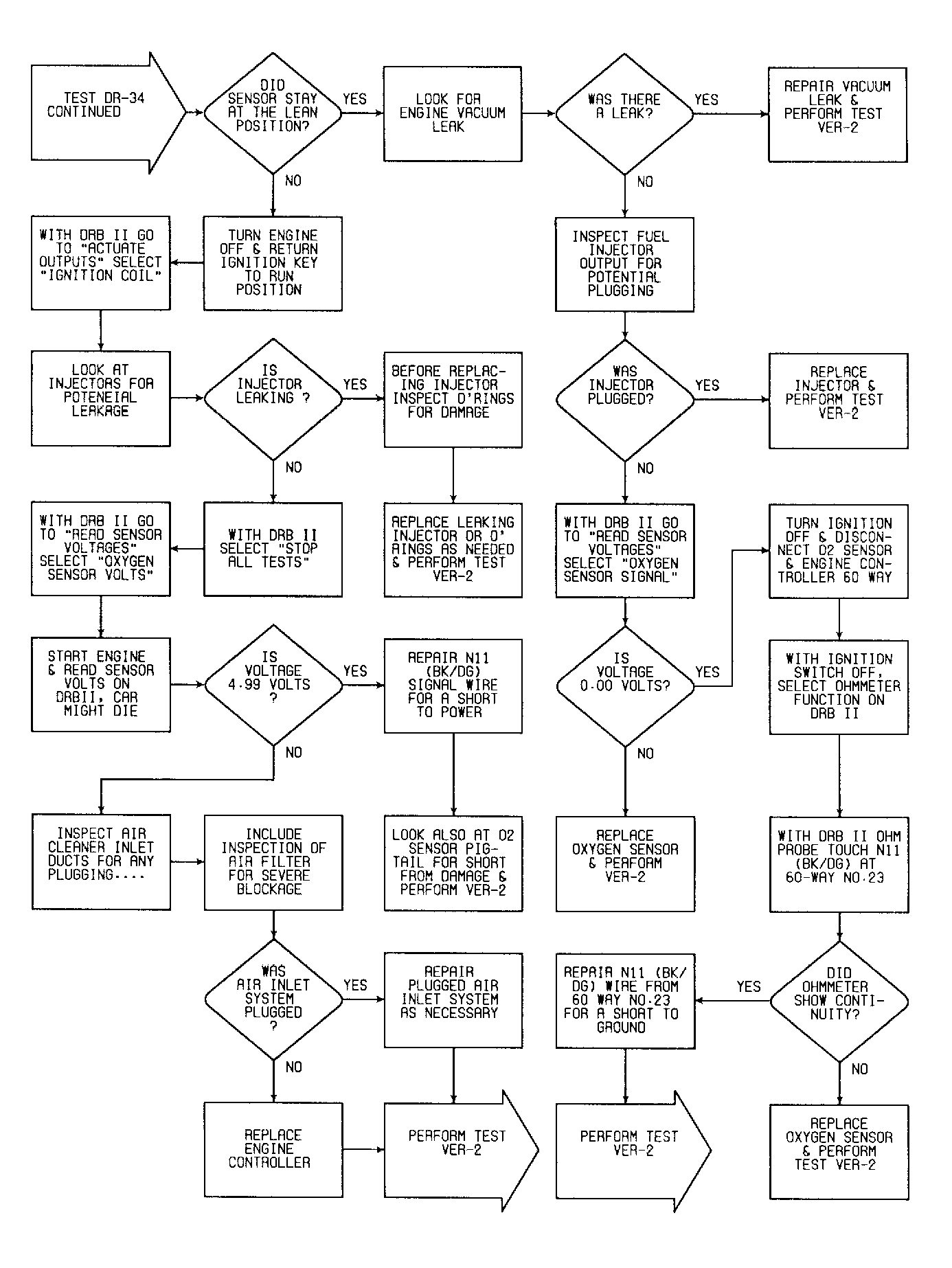

Fig 2: DR-34, Checking Oxygen Sensor (2 of 4)

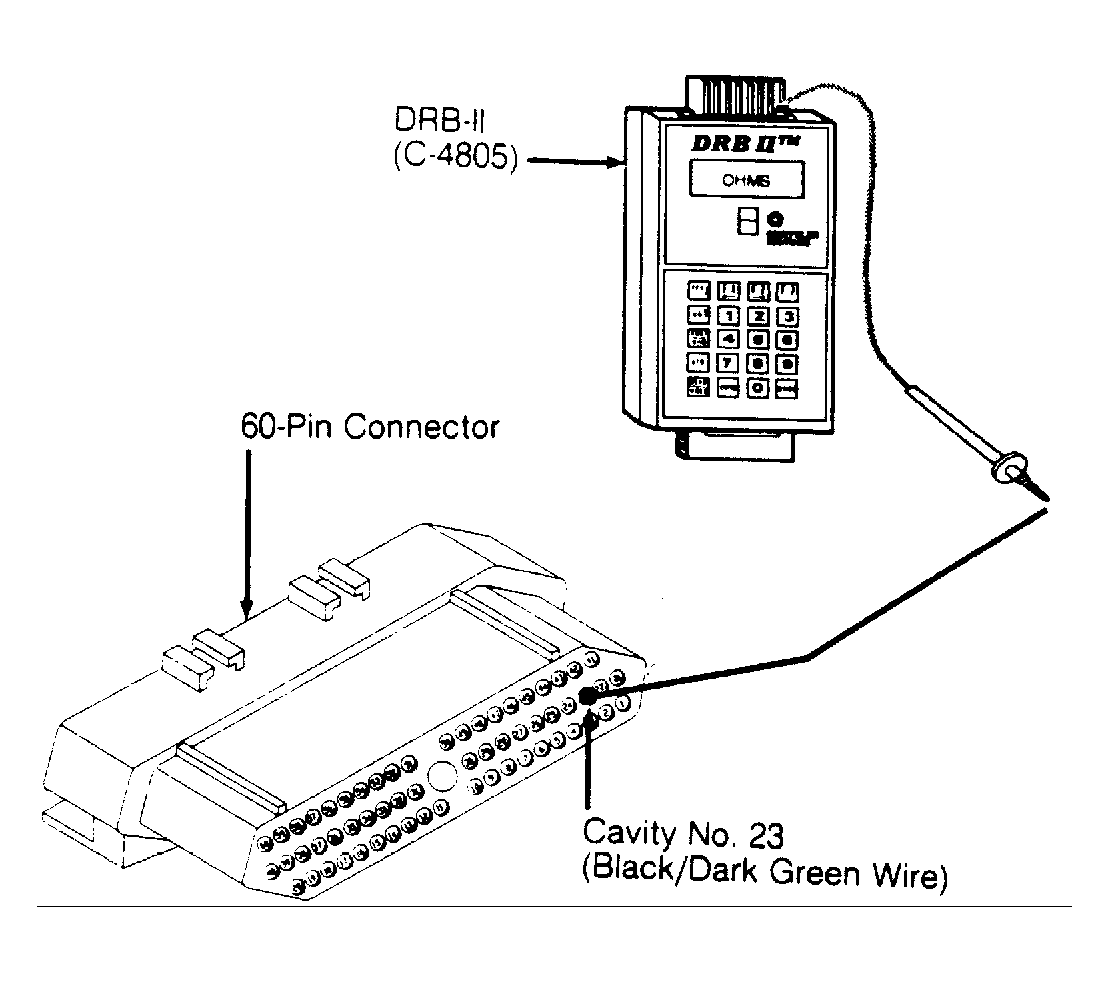

Fig 3: DR-34, Checking Oxygen Sensor (3 of 4)

Fig 4: DR-34, Checking Oxygen Sensor (4 of 4)
