3.0L MPFI Tests W/Codes
›
Charging System Test
›
Ch-1 - Checking Charging System For Fault Messages
Ch-1 - Checking Charging System For Fault Messages

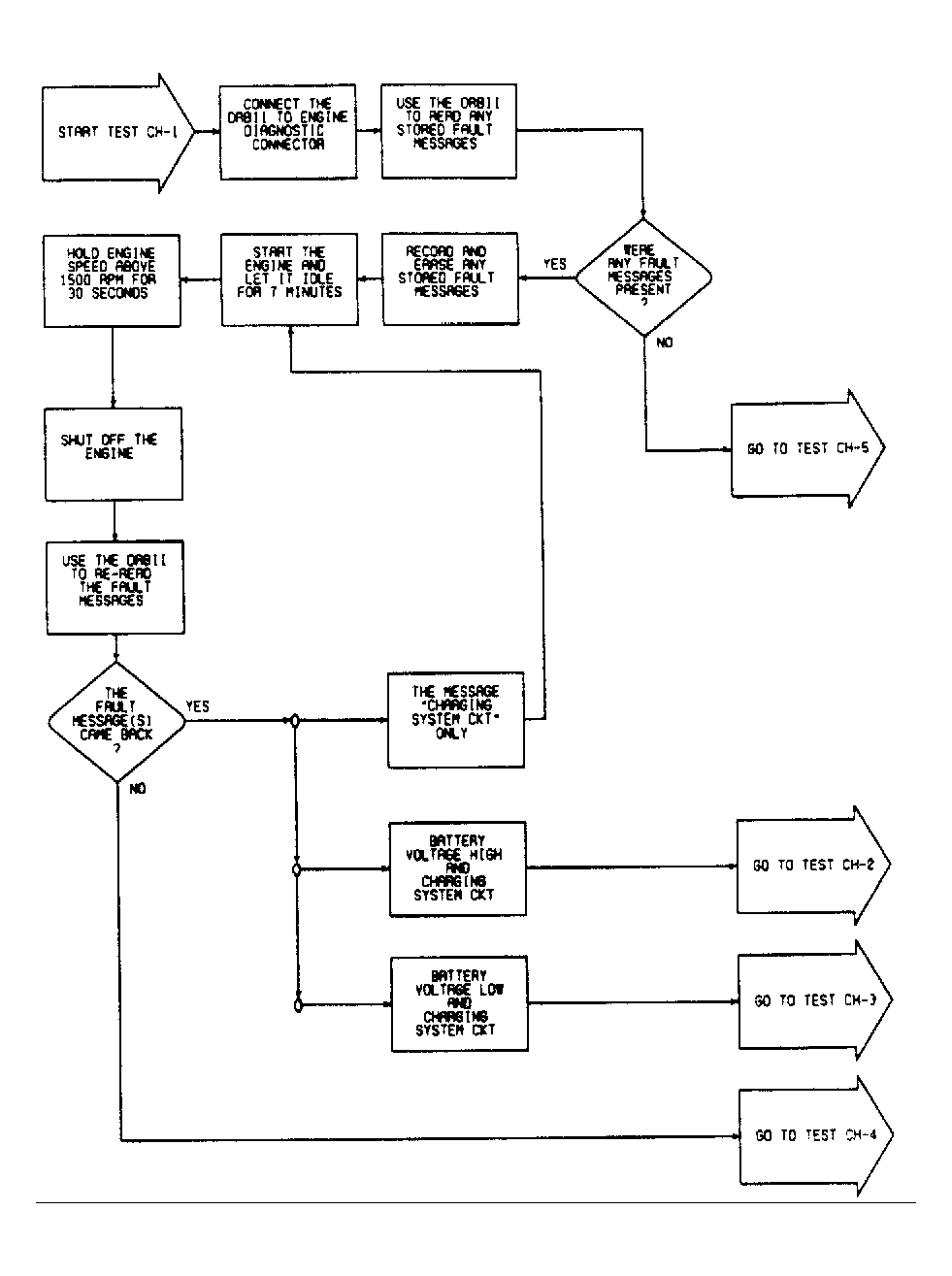

Fig 1: CH-1 - Checking Charging System For Fault Messages
