Dr-2 - Checking For Defective Injectors

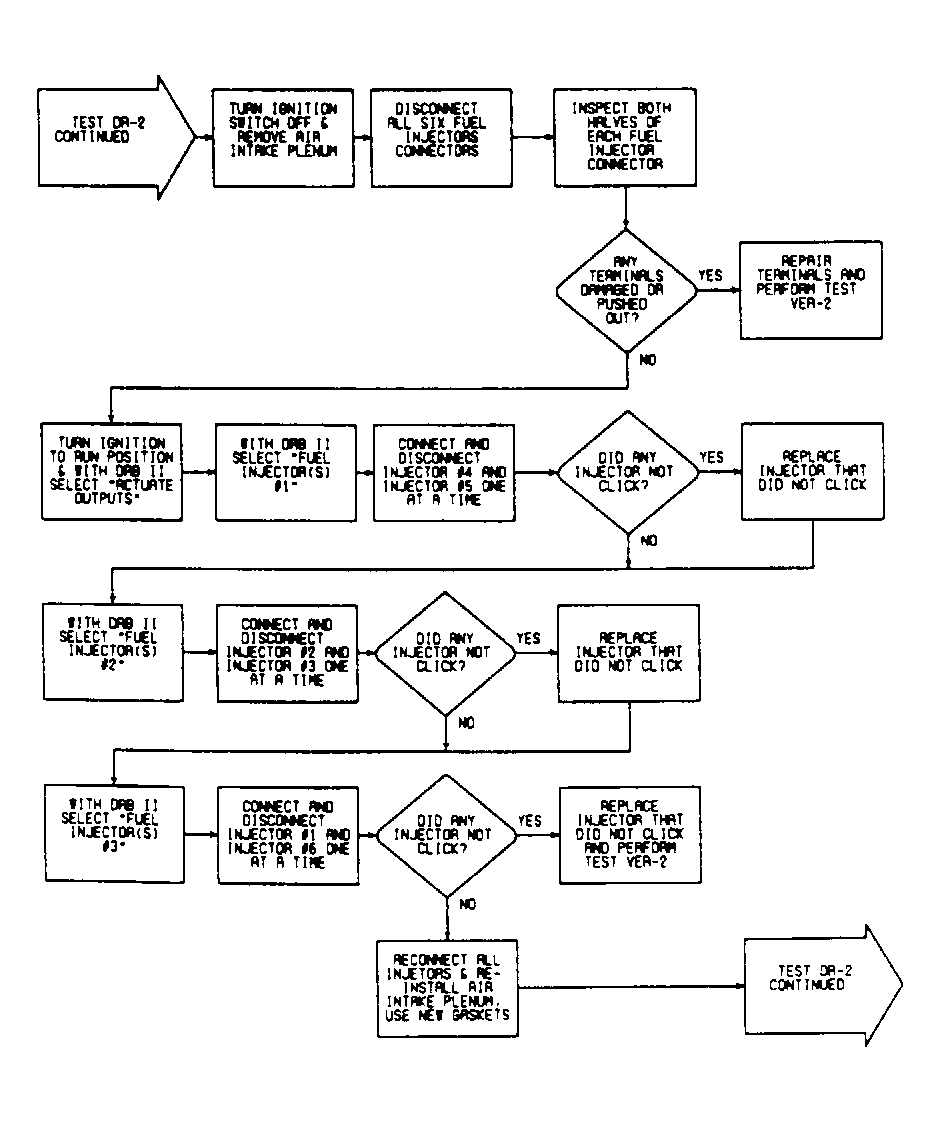

Fig 1: DR-2 - Checking For Defective Injectors

G107522

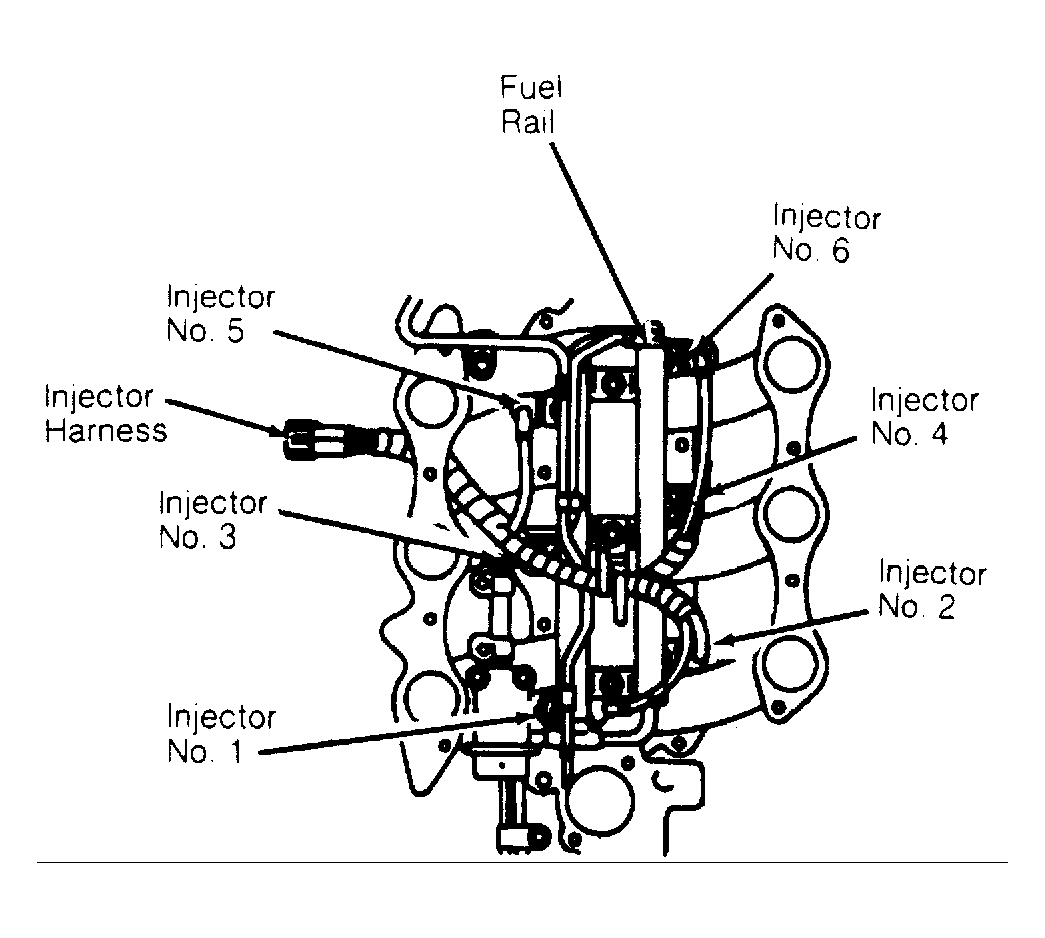

Fig 2: DR-2 - Fuel Injector System Location

G107523
