NS-6 - Checking Injector Control Circuit & Controller

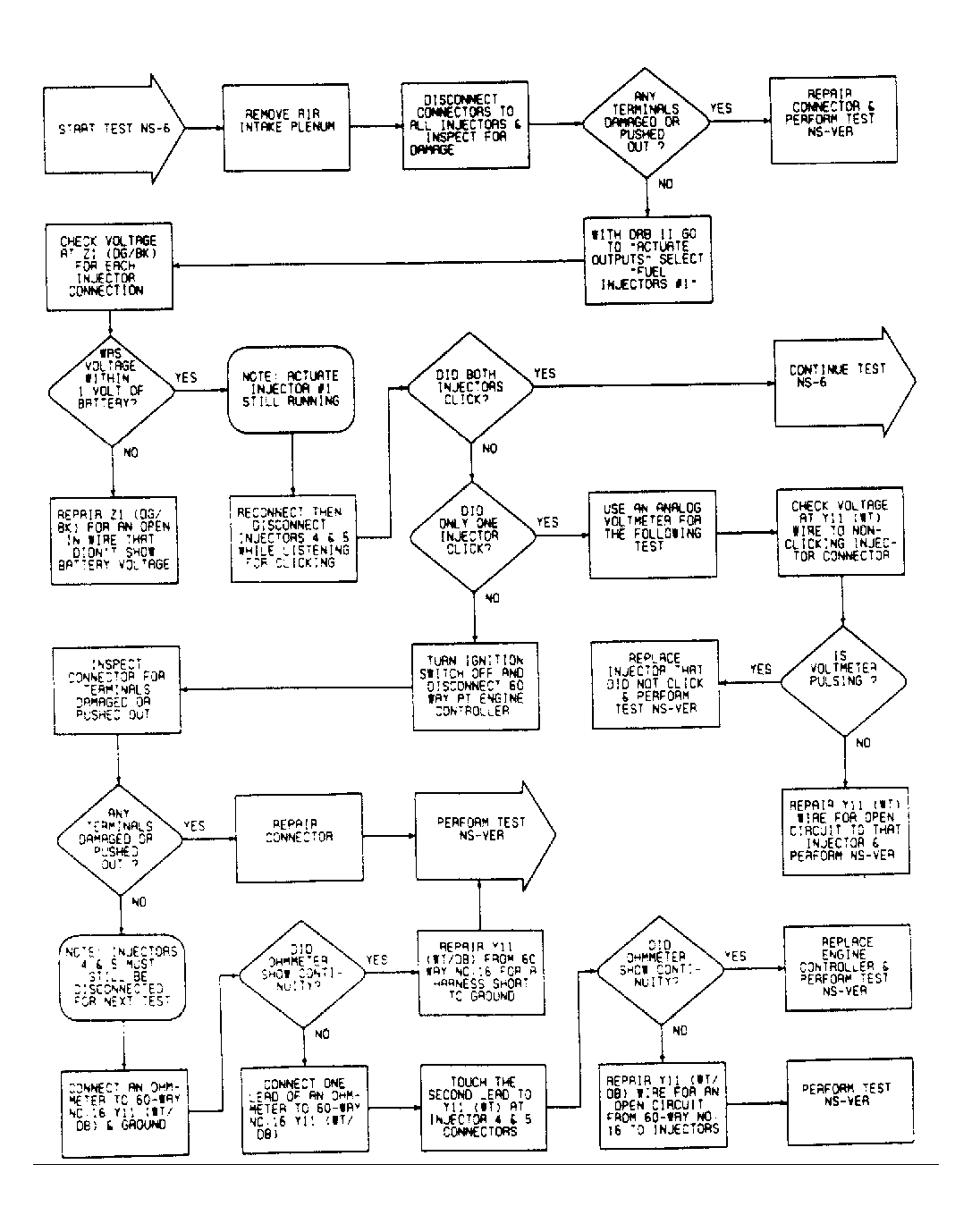

Fig 1: NS-6 - Checking Injector Control Circuit and Controller (1 of 3)

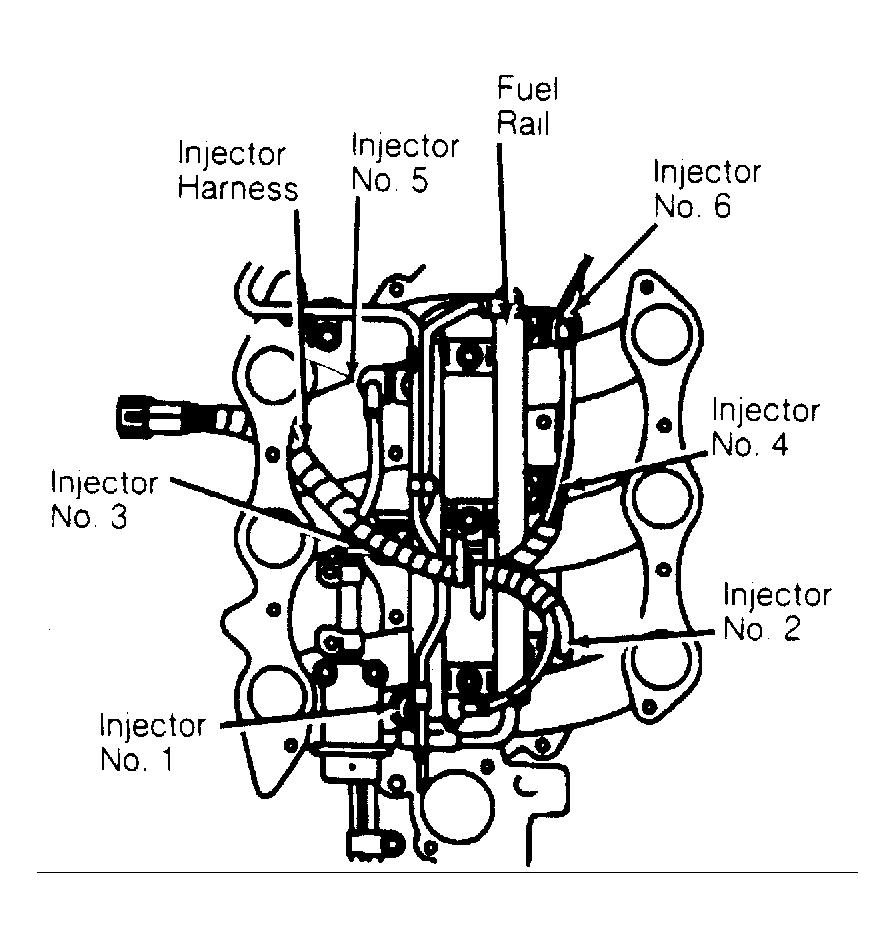

Fig 2: NS-6 - Top View of Fuel Injectors, Fuel Rail & Injector Harness

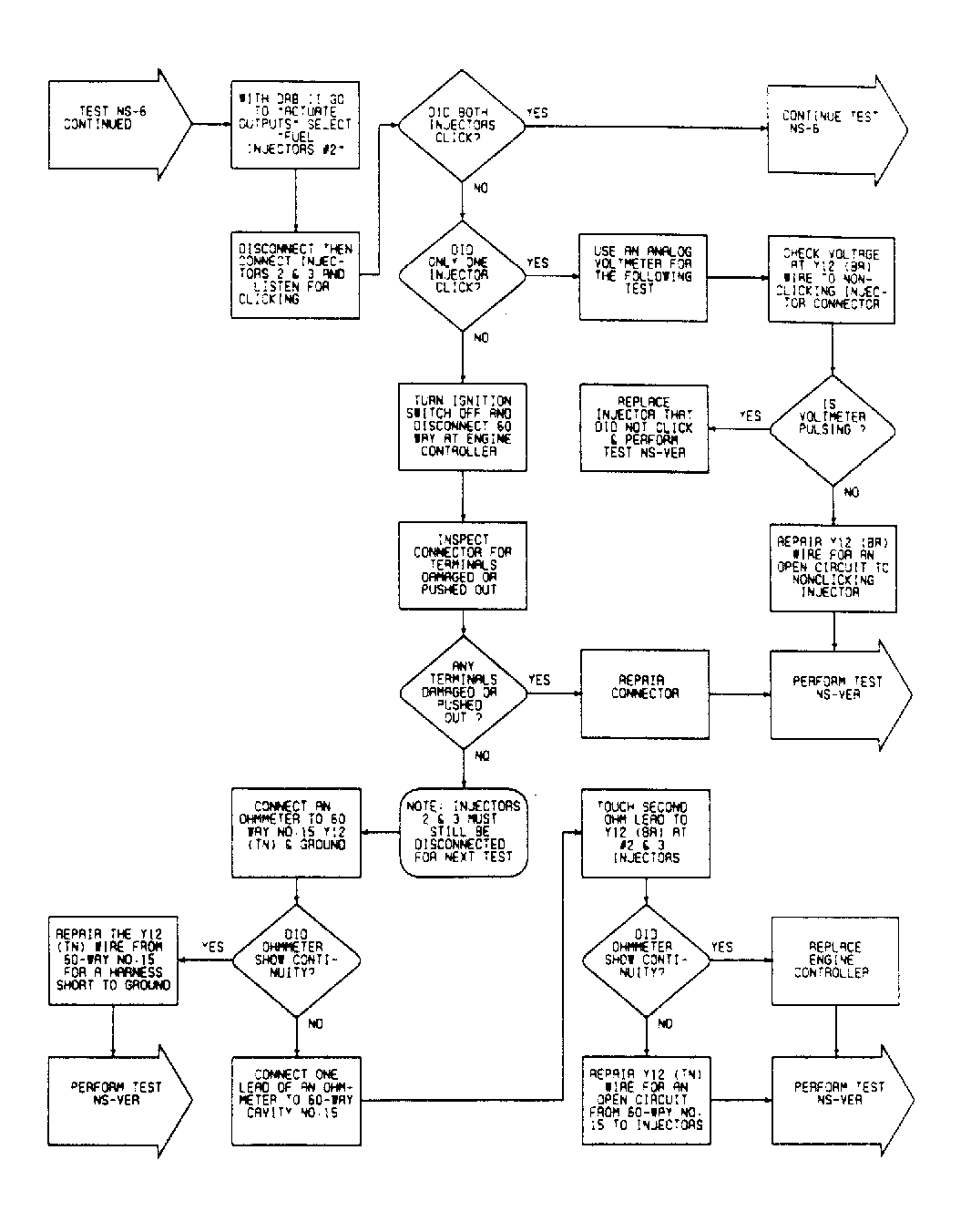

Fig 3: NS-6 - FC (2 of 3), Checking Injector Control Circuit and Controller

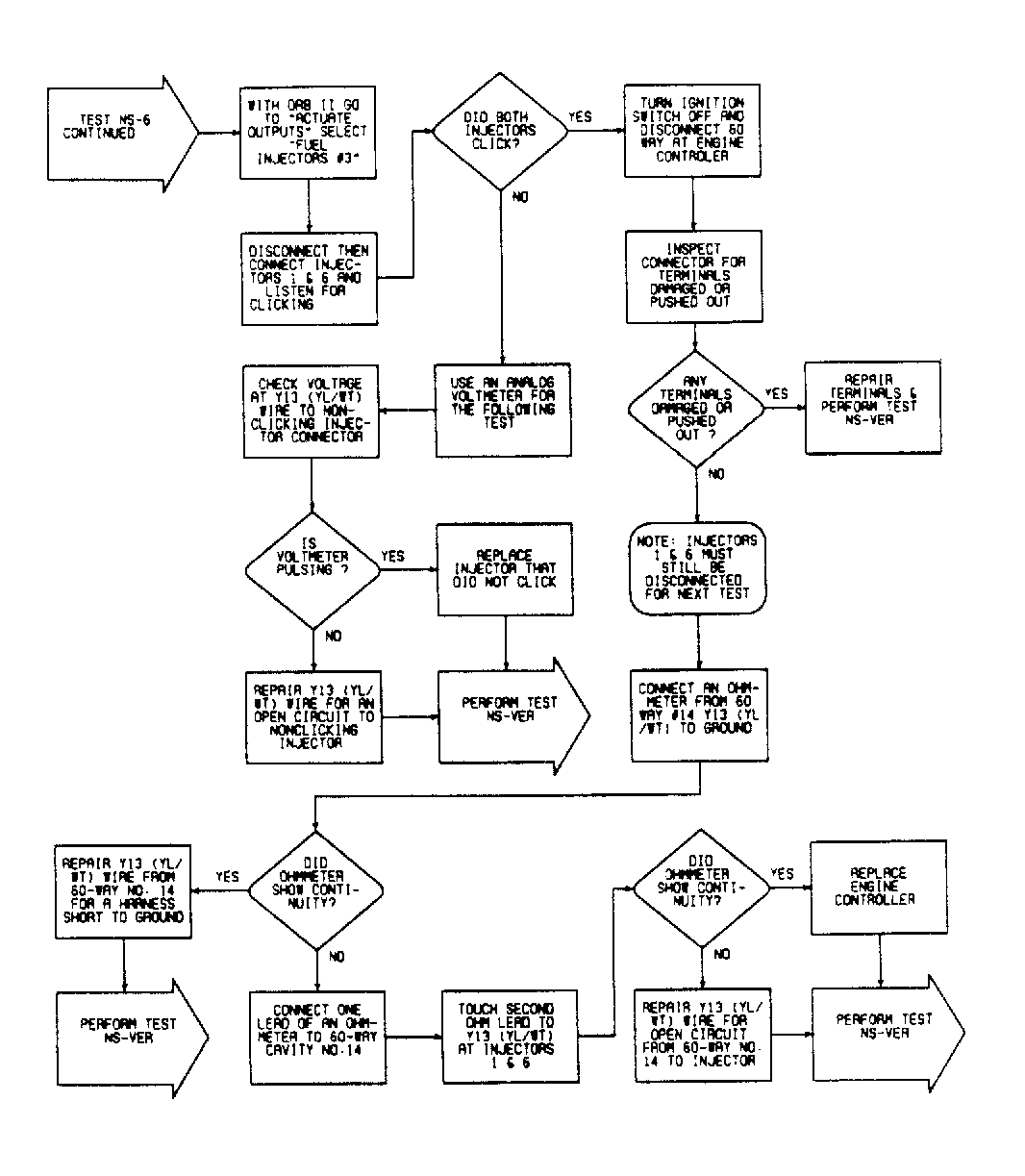

Fig 4: NS-6 - FC (3 of 3), Checking Injector Control Circuit and Controller
