SP-6 - Testing "Resume" Switch

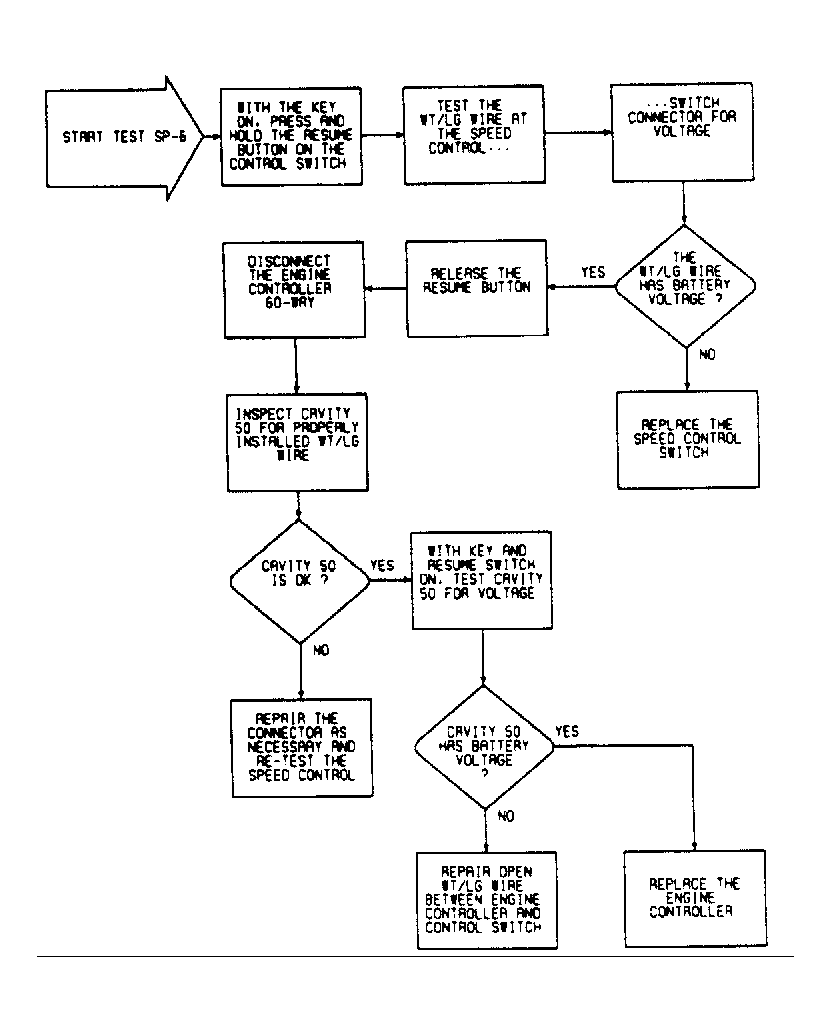

Fig 1: SP-6 - Testing "RESUME" Switch

G107606

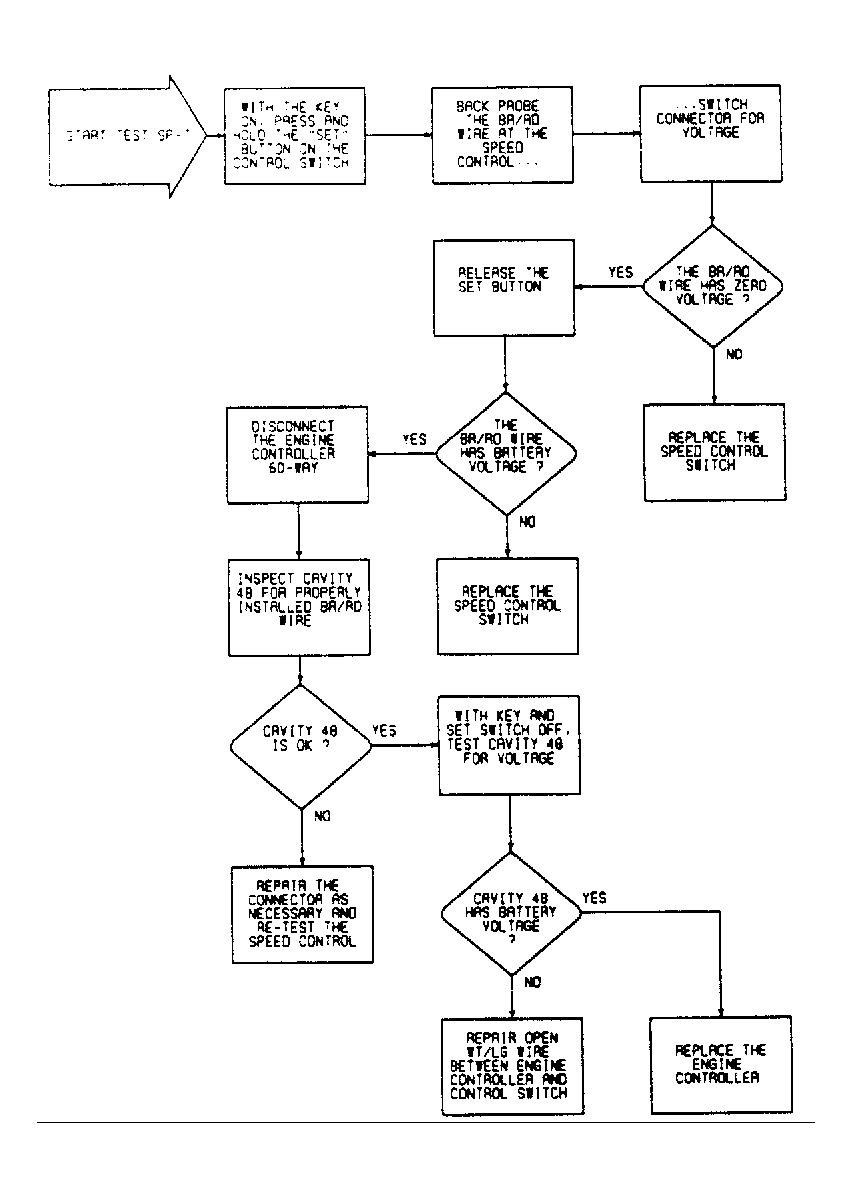

Fig 2: SP-7 - Testing "SET" Switch

G107607
