VER-1 - DRIVEABILITY Verification

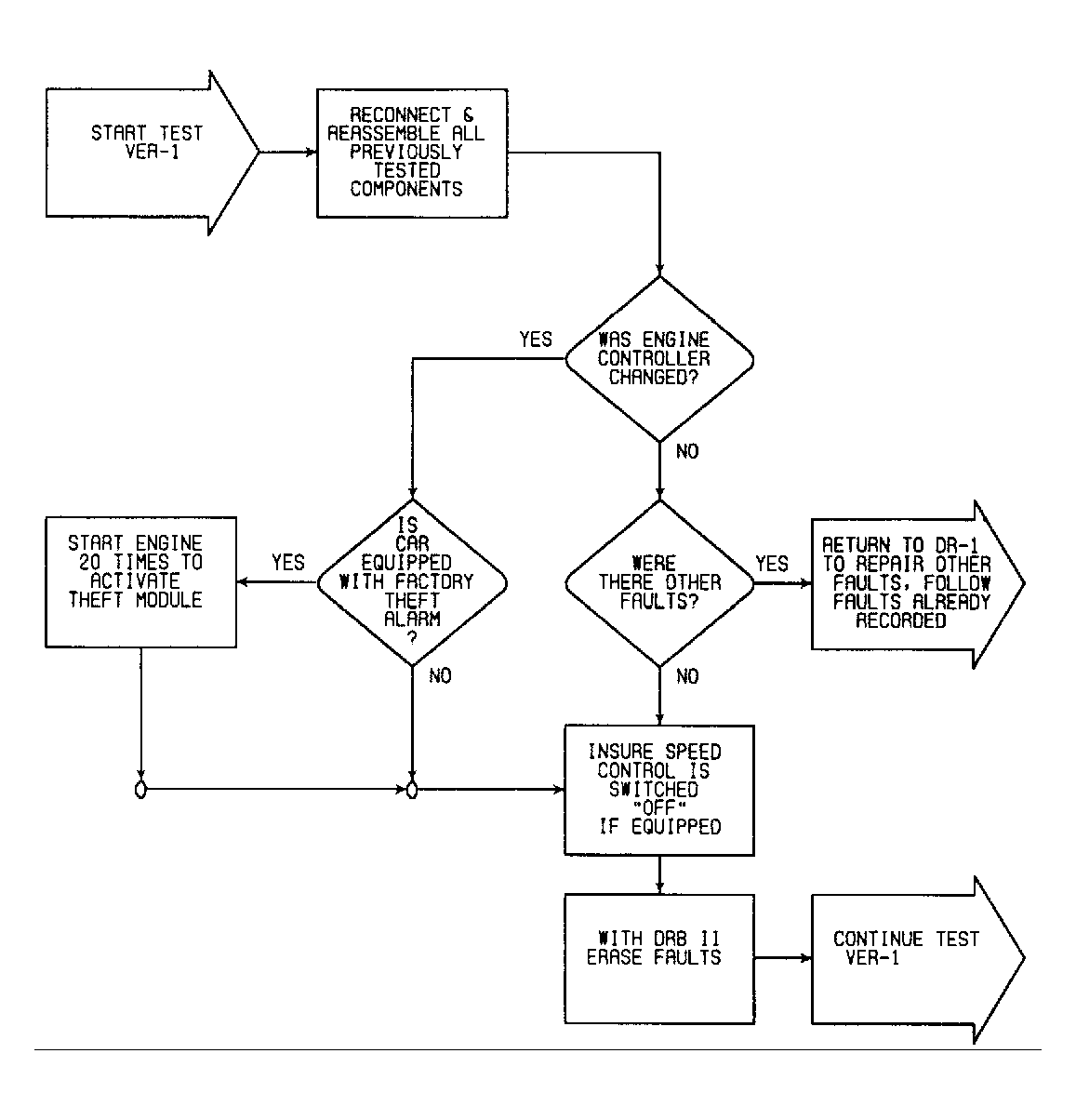

Fig 1: VER-1 - Driveability Verification (1 of 2)

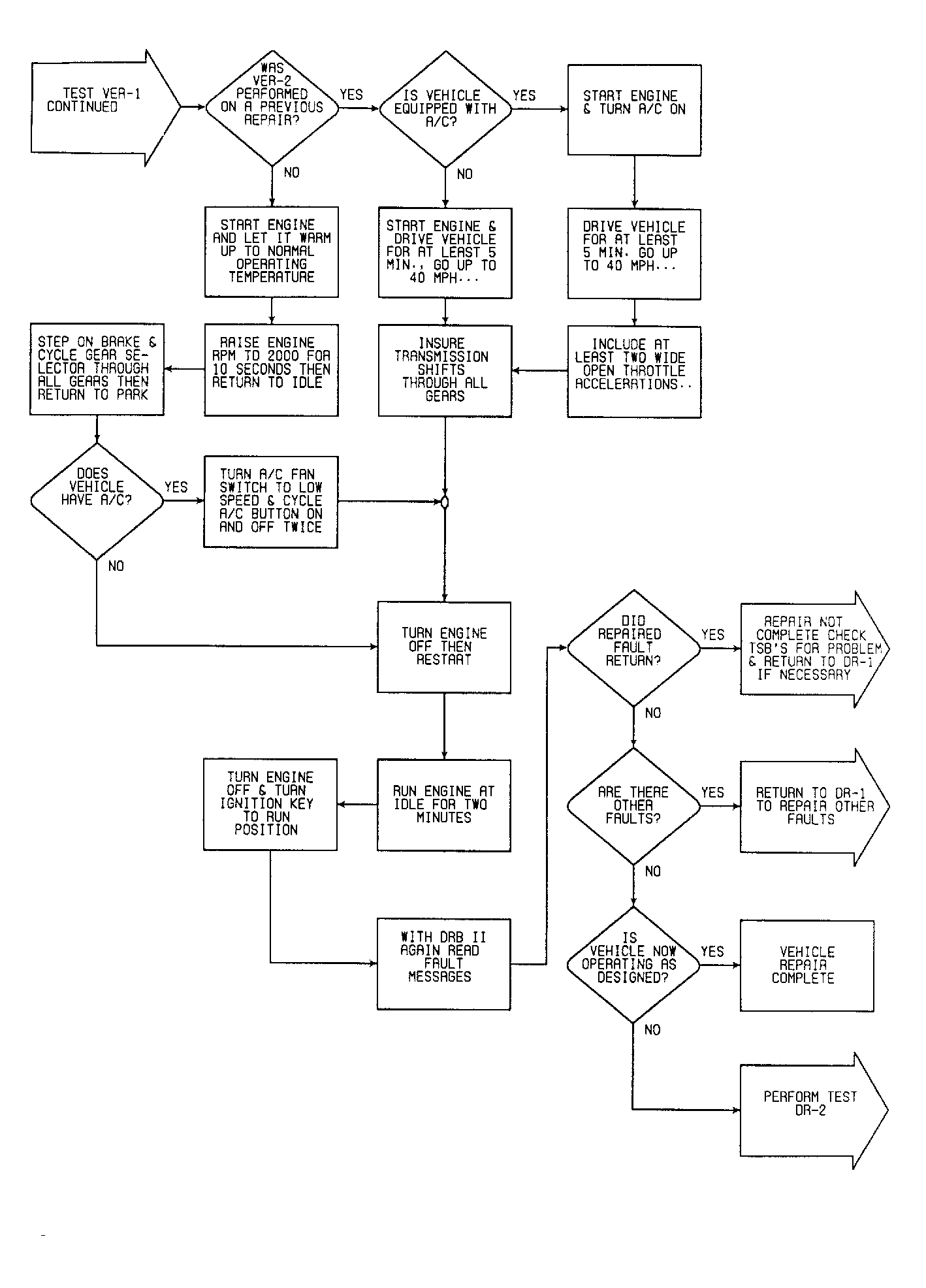

Fig 2: VER-1 - Driveability Verification (2 of 2)

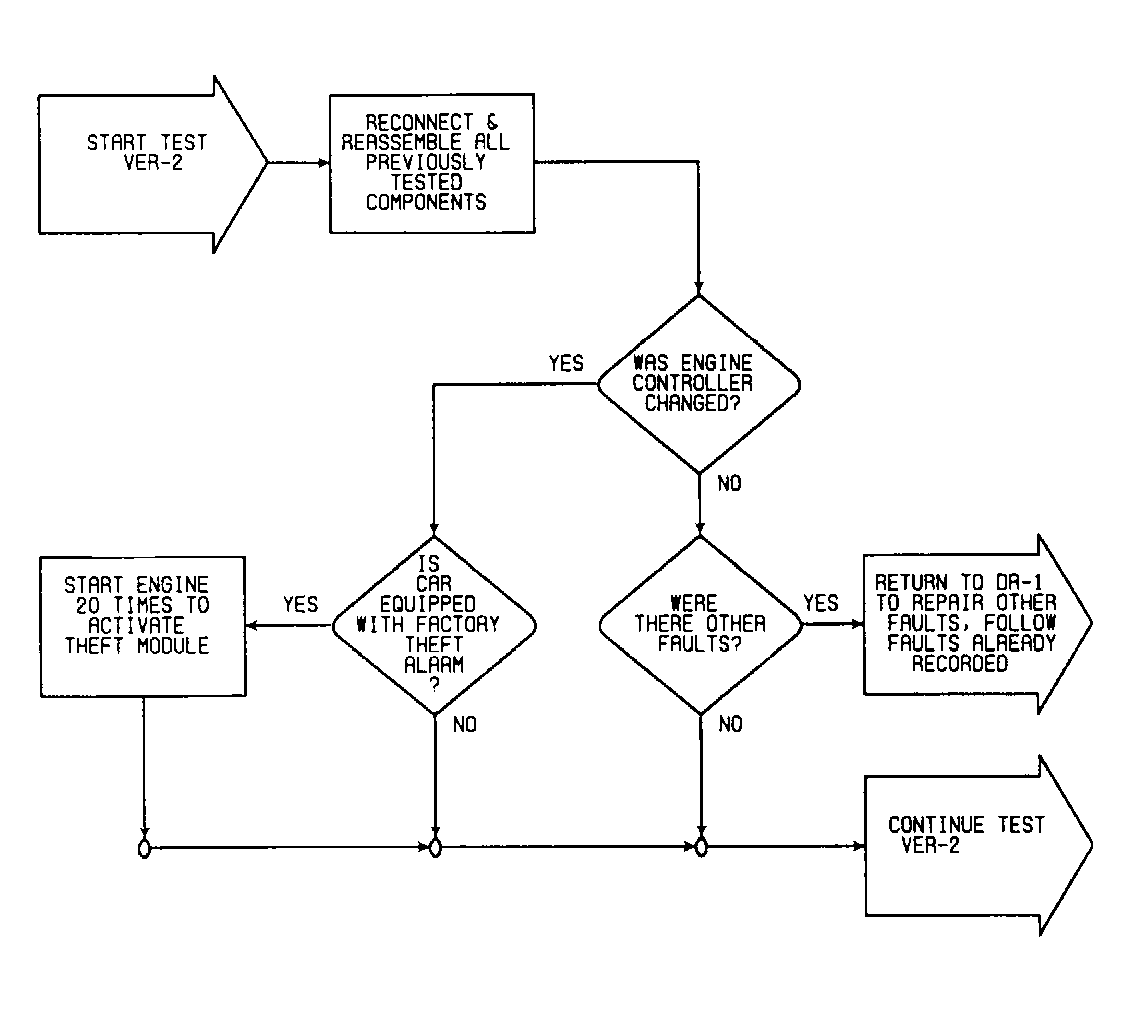

Fig 3: VER-2 - Driveability Verification (1 of 2)

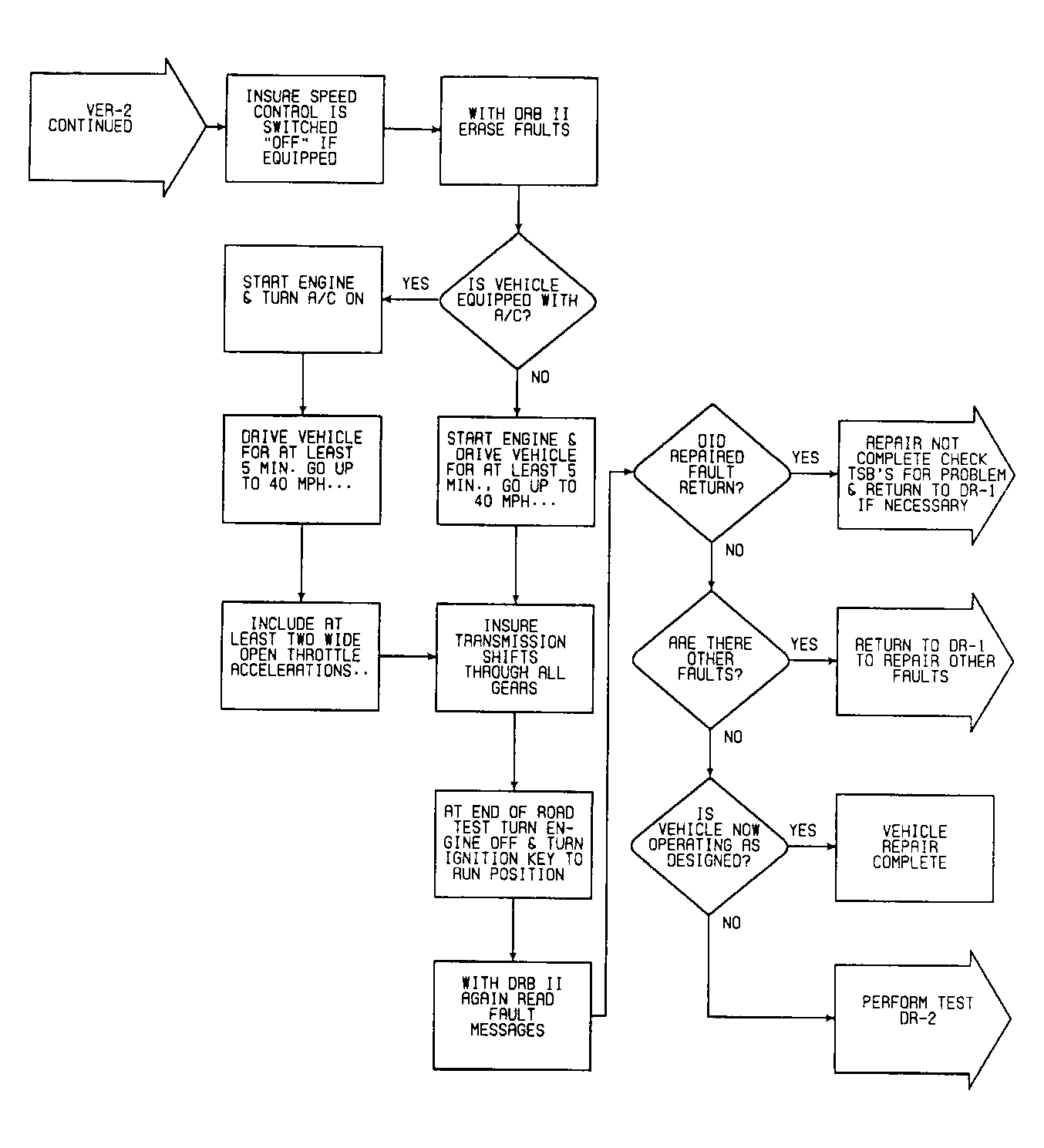

Fig 4: VER-2 - Driveability Verification (2 of 2)
