SP-4 - Testing Park/Neutral Input
SP-4 - Testing Park/Neutral Input

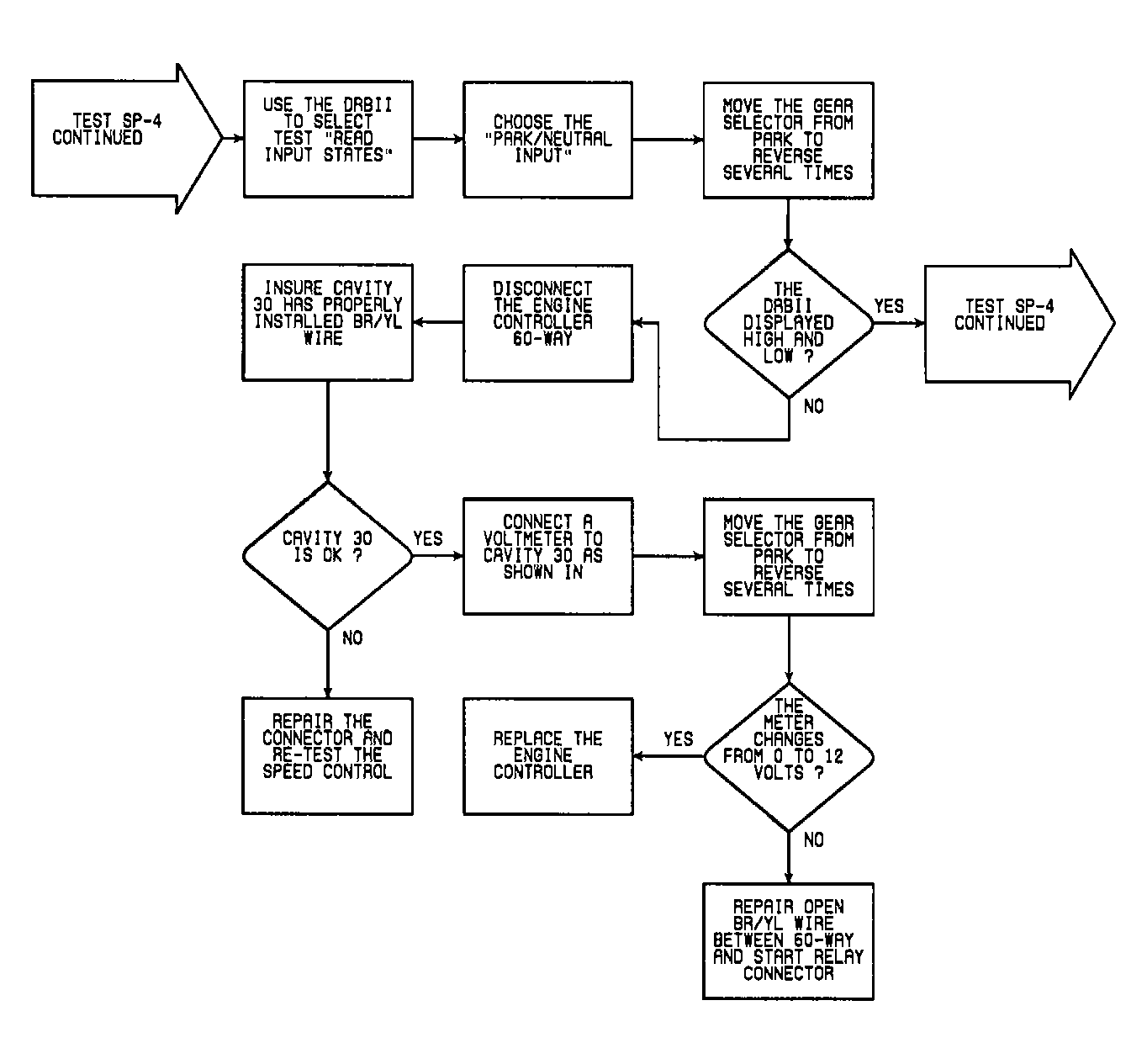

Fig 1: SP-4 - Testing Park/Neutral Input (2 of 4)
