VER3: Verification Procedure 3
VER3: Verification Procedure 3

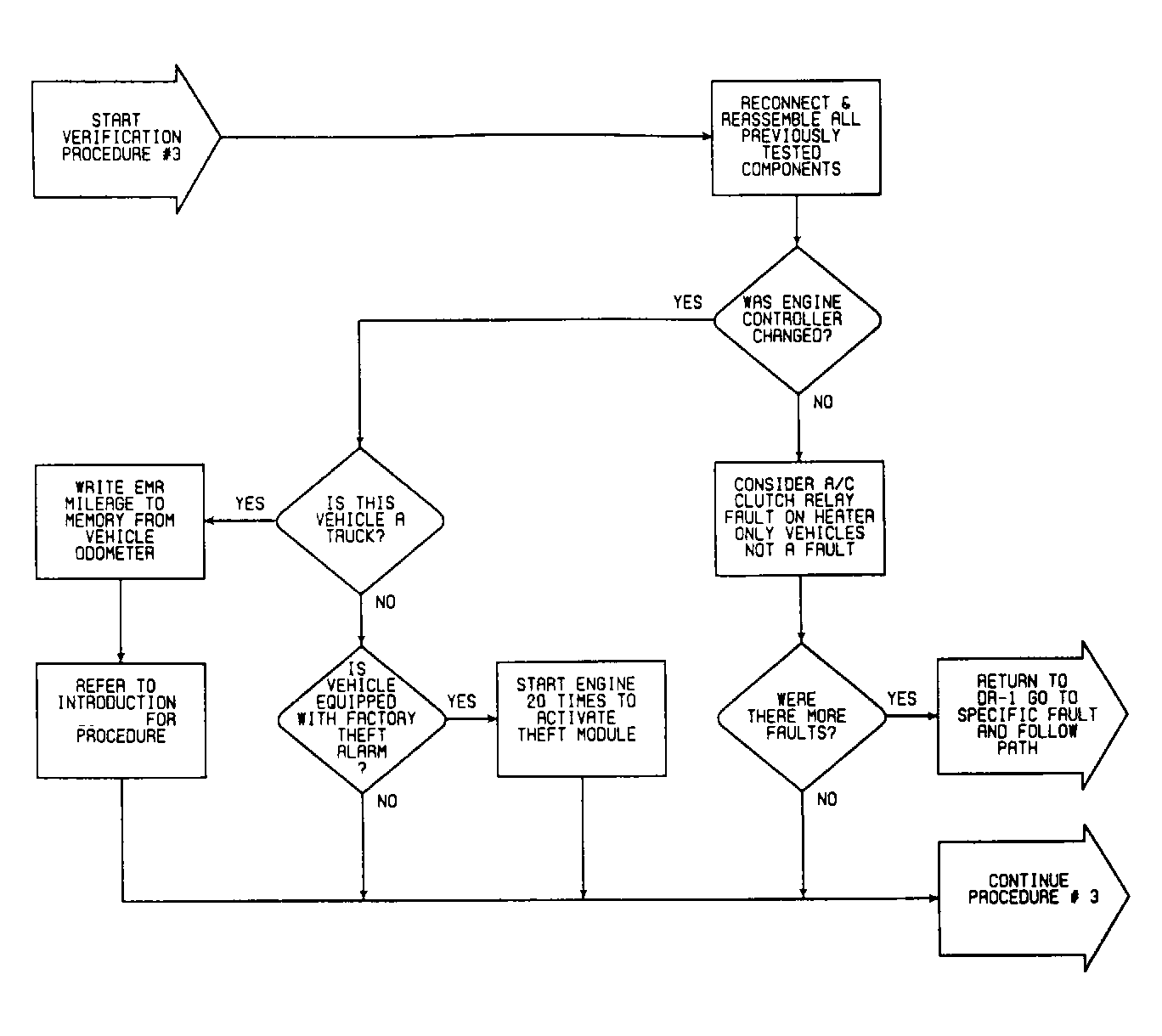

Fig 1: VER3: Flow Chart Verification Procedure 3 (1 of 2)

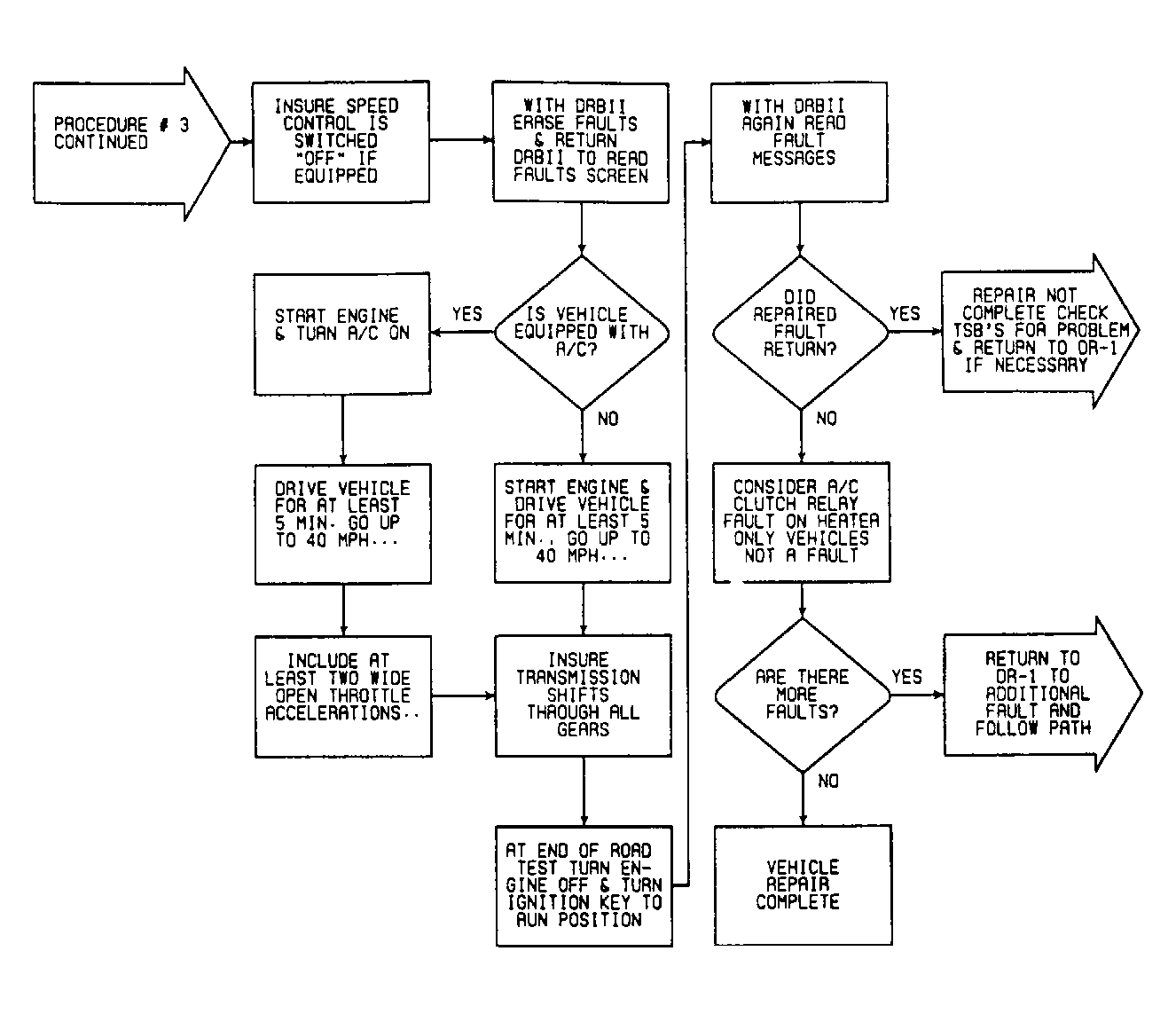

Fig 2: VER3: Flow Chart Verification Procedure 3 (2 of 2)
