Test 21B: Hydraulic Pump/Motor Circuit Test

Fig 1: Test 21B - Hydraulic Pump/Motor Circuit Test, Schematic

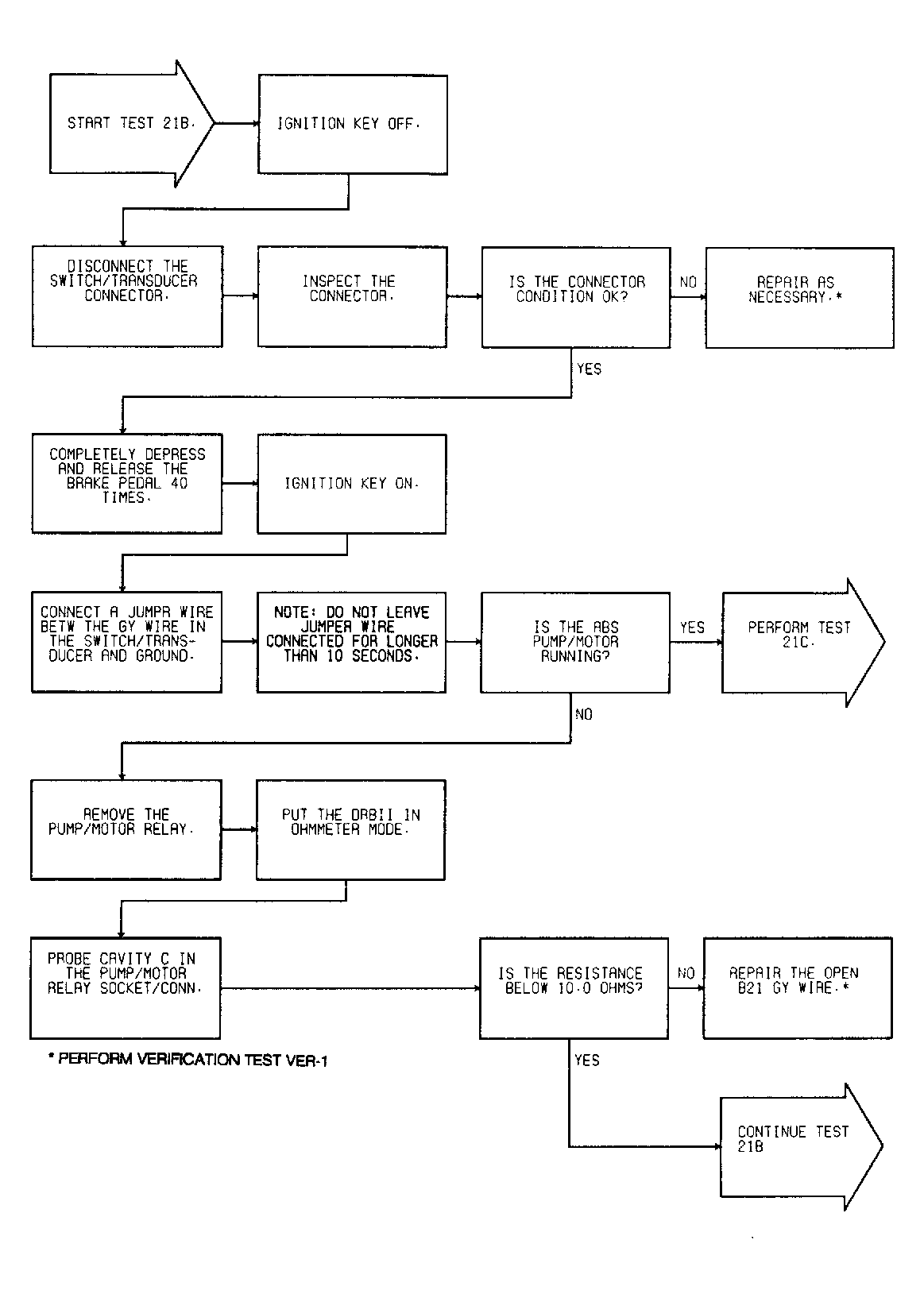

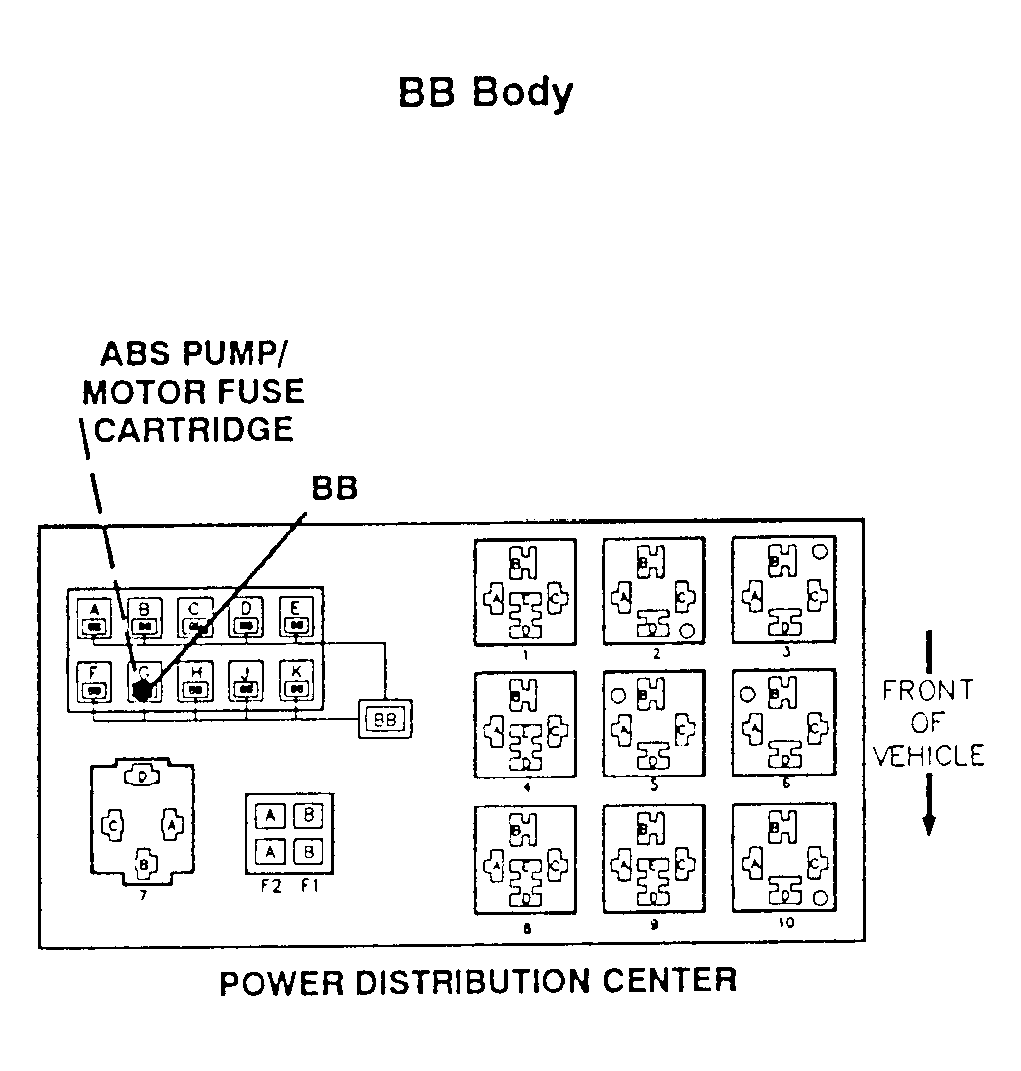

Fig 2: Test 21B - Hydraulic Pump/Motor Circuit Test, Flow Chart

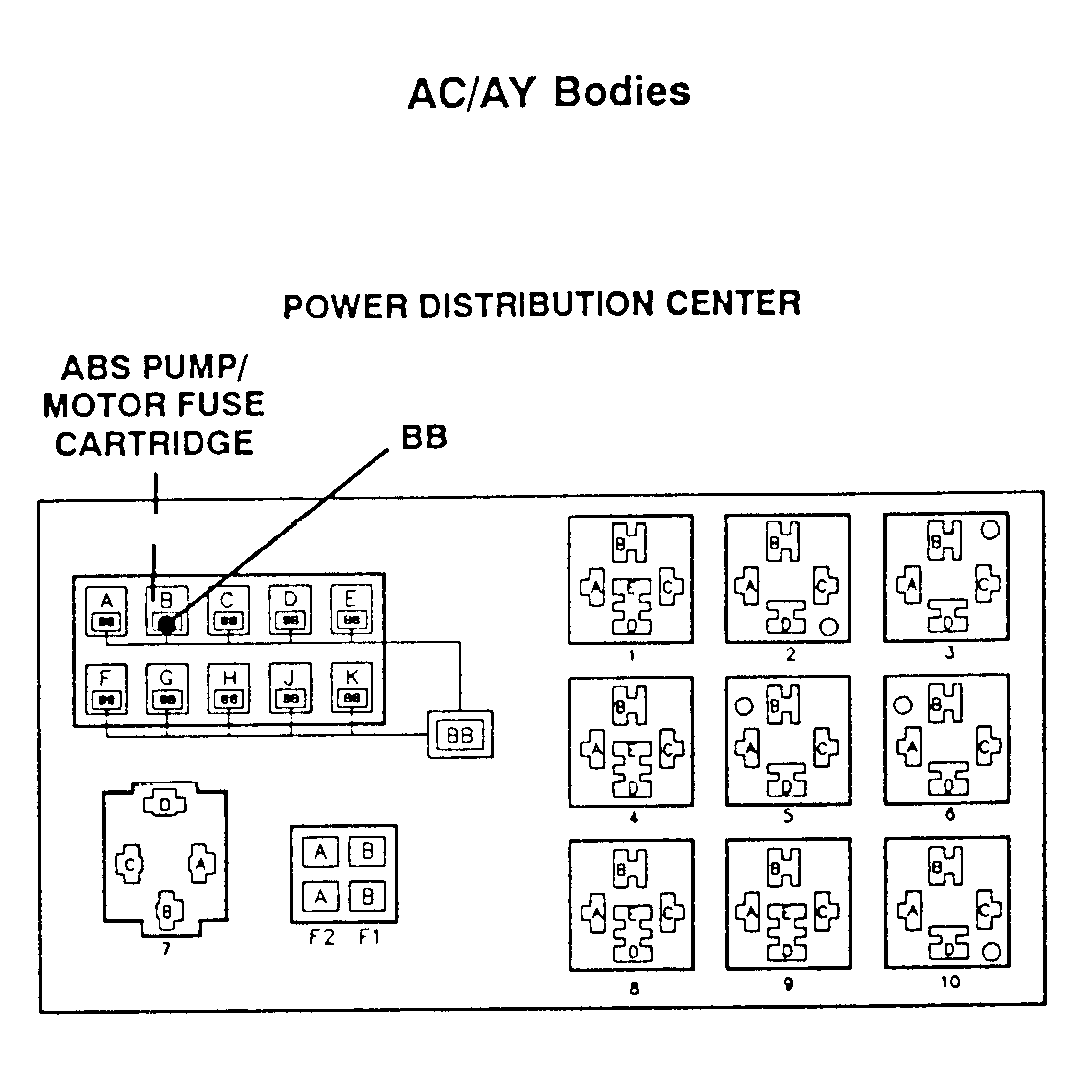

Fig 3: Test 21B - Hydraulic Pump/Motor Circuit Test, Flow Chart

Fig 4: Test 21B - Hydraulic Pump/Motor Circuit Test, Schematic

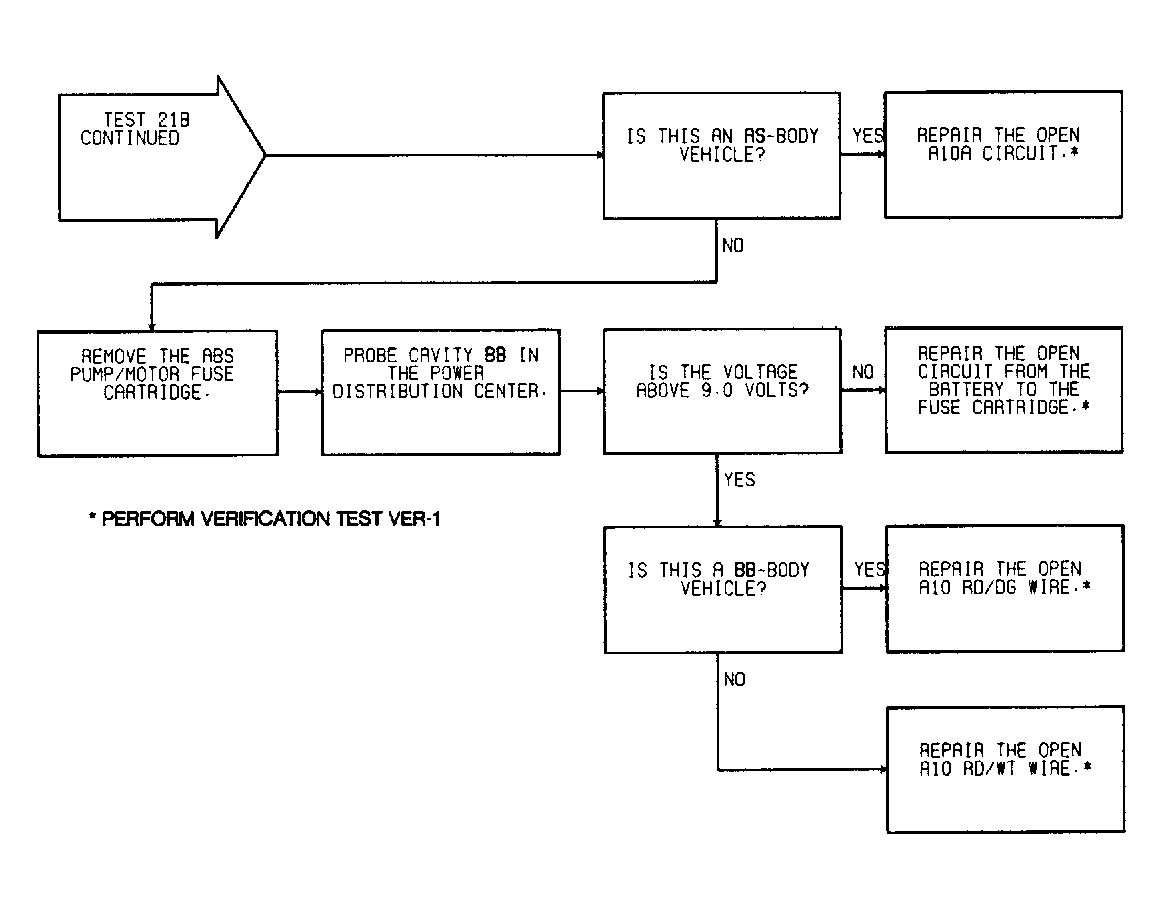

Fig 5: Test 21B - Hydraulic Pump/Motor Circuit Test, Schematic

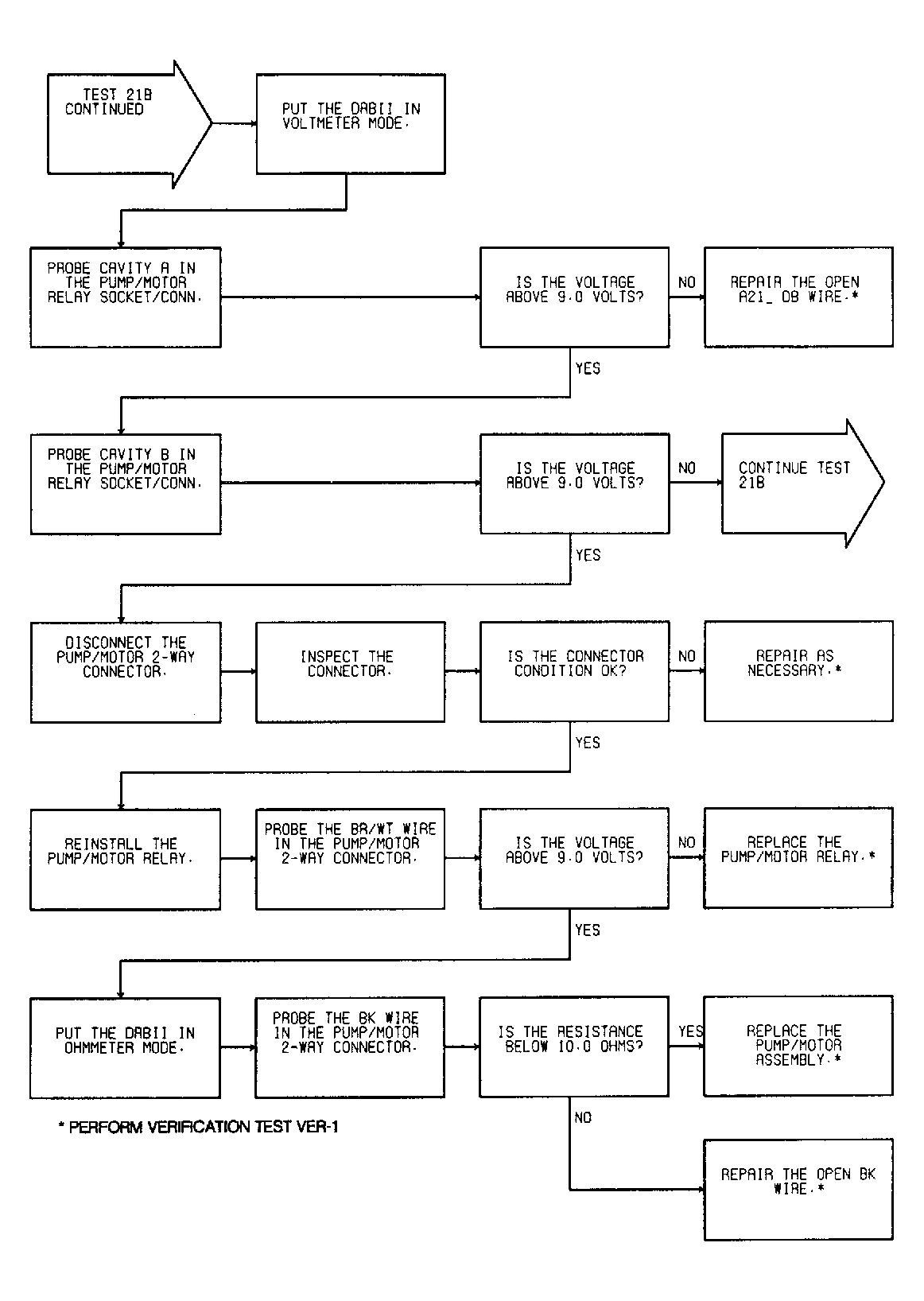

Fig 6: Test 21B - Hydraulic Pump/Motor Circuit Test, Flow Chart
