Test 101: Testing Illuminated Entry System

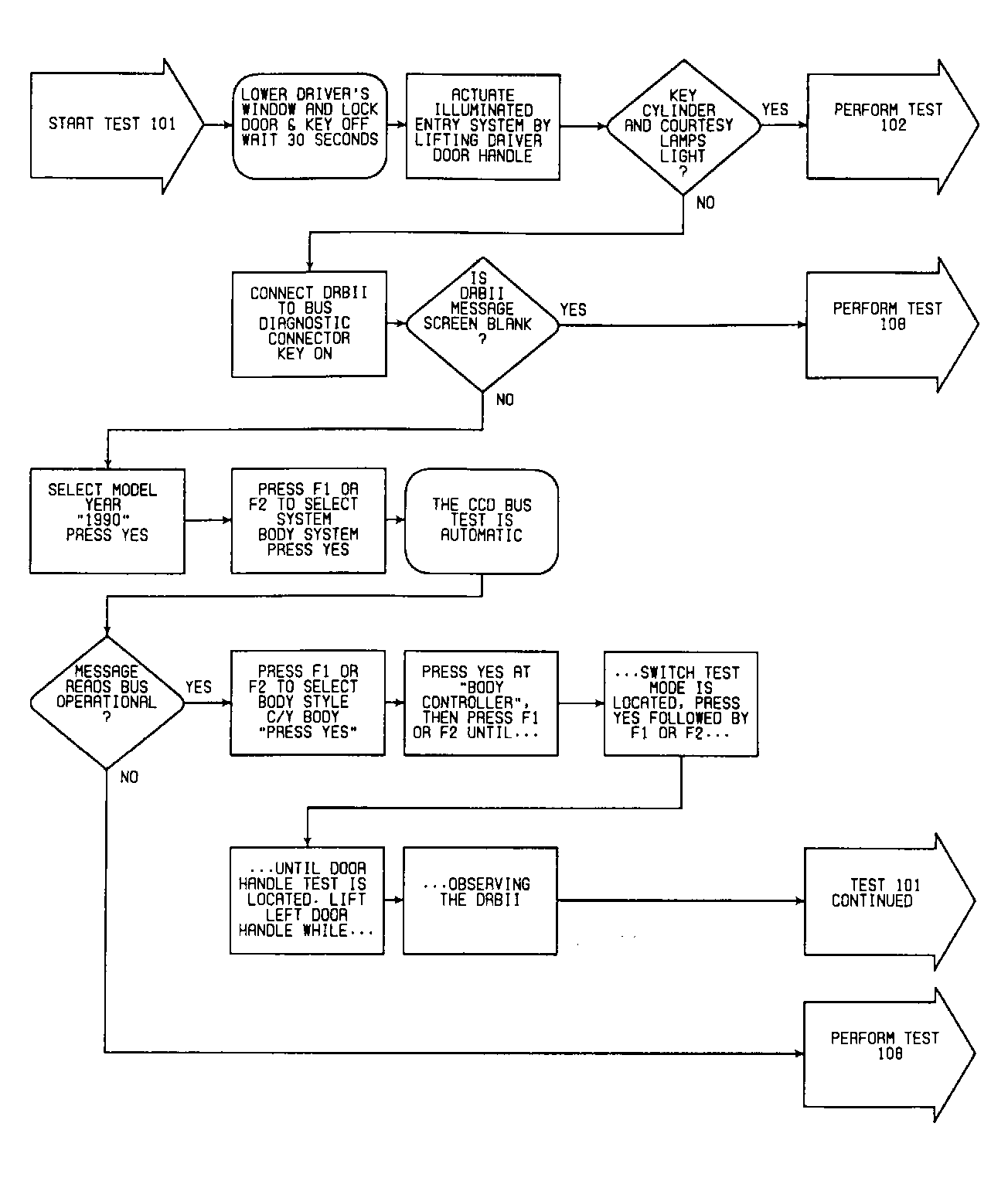

Fig 1: Test 101: Flow Chart (1 of 4)

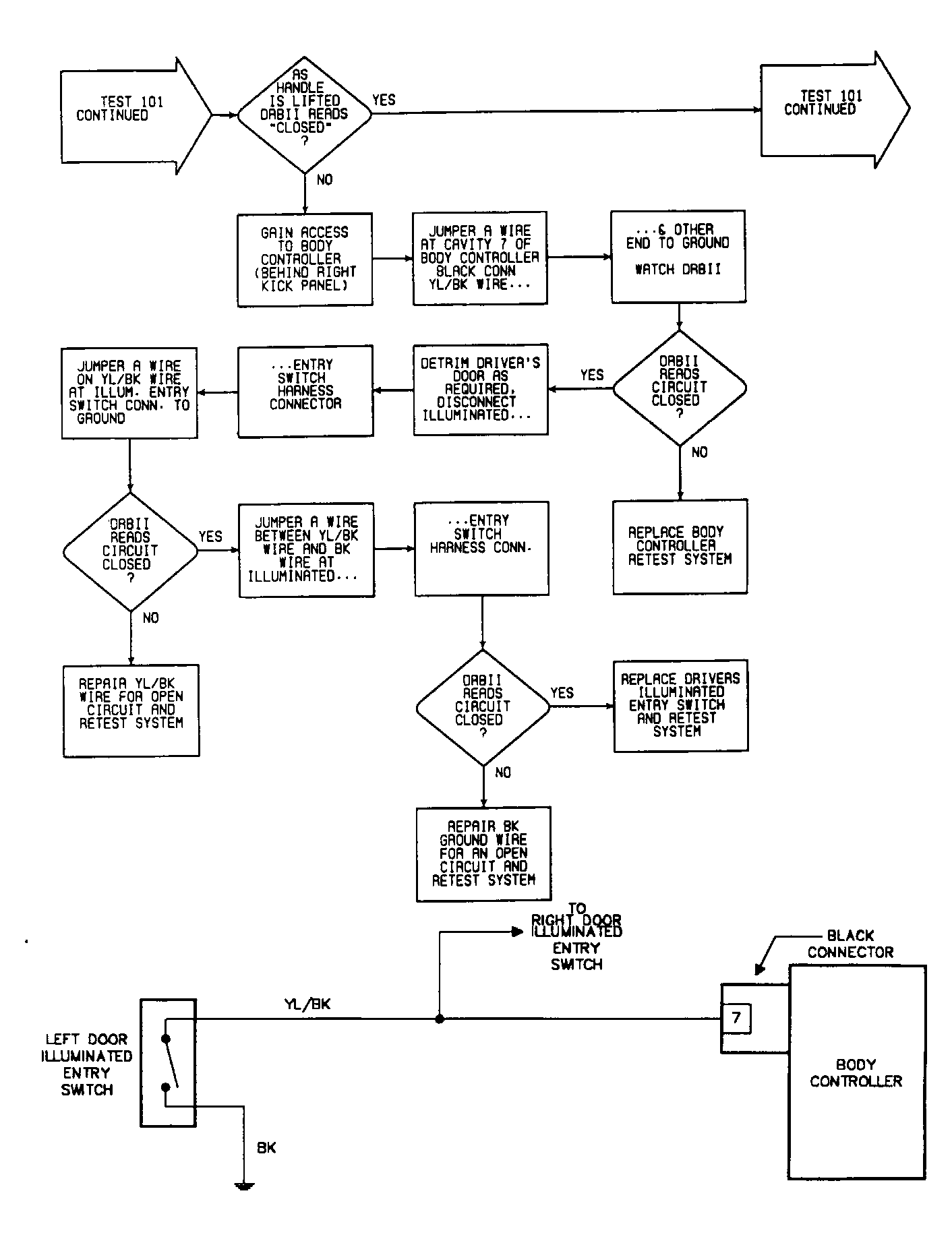

Fig 2: Test 101: Circuit Diagram & Flow Chart (2 of 4)

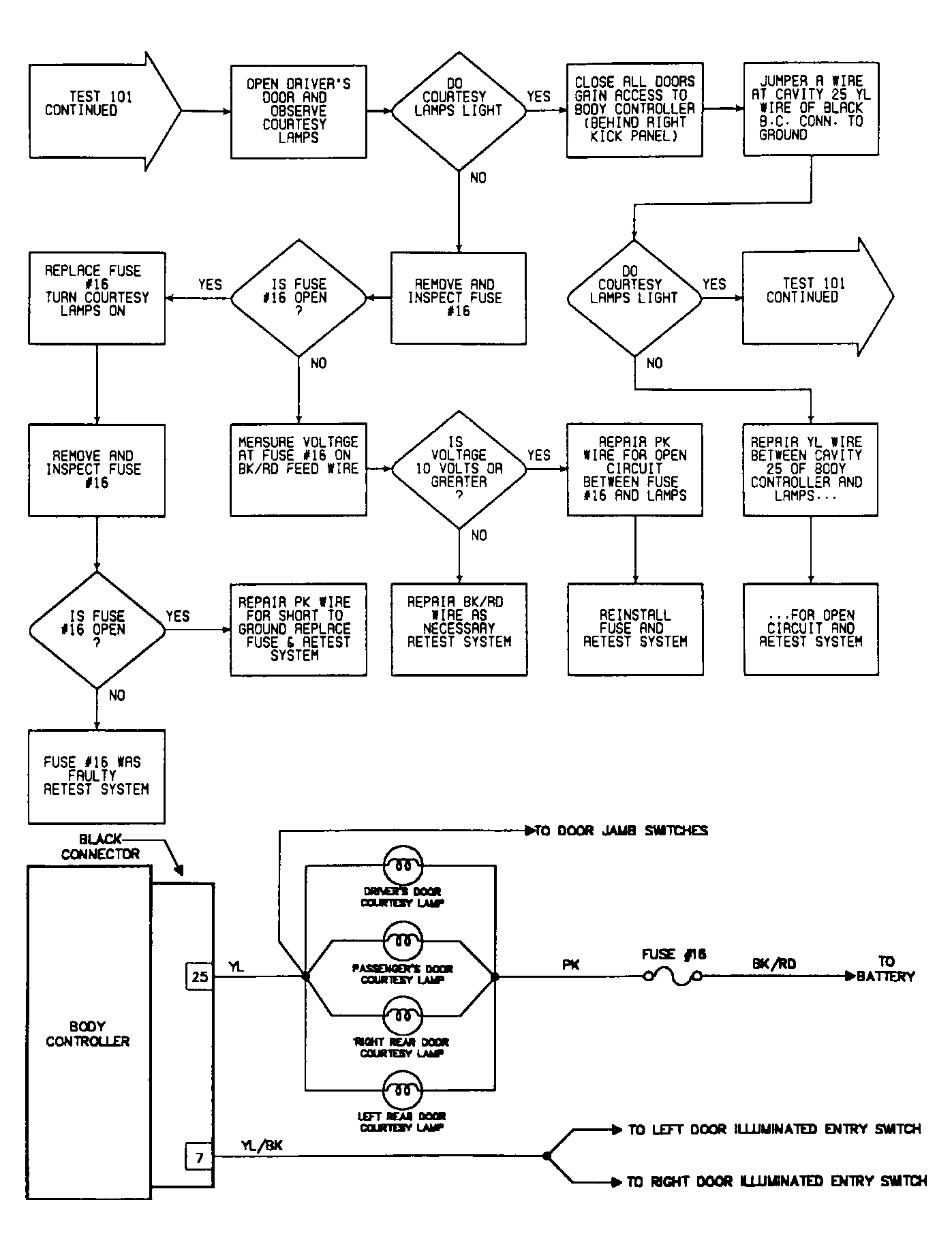

Fig 3: Test 101: Circuit Diagram & Flow Chart (3 of 4)

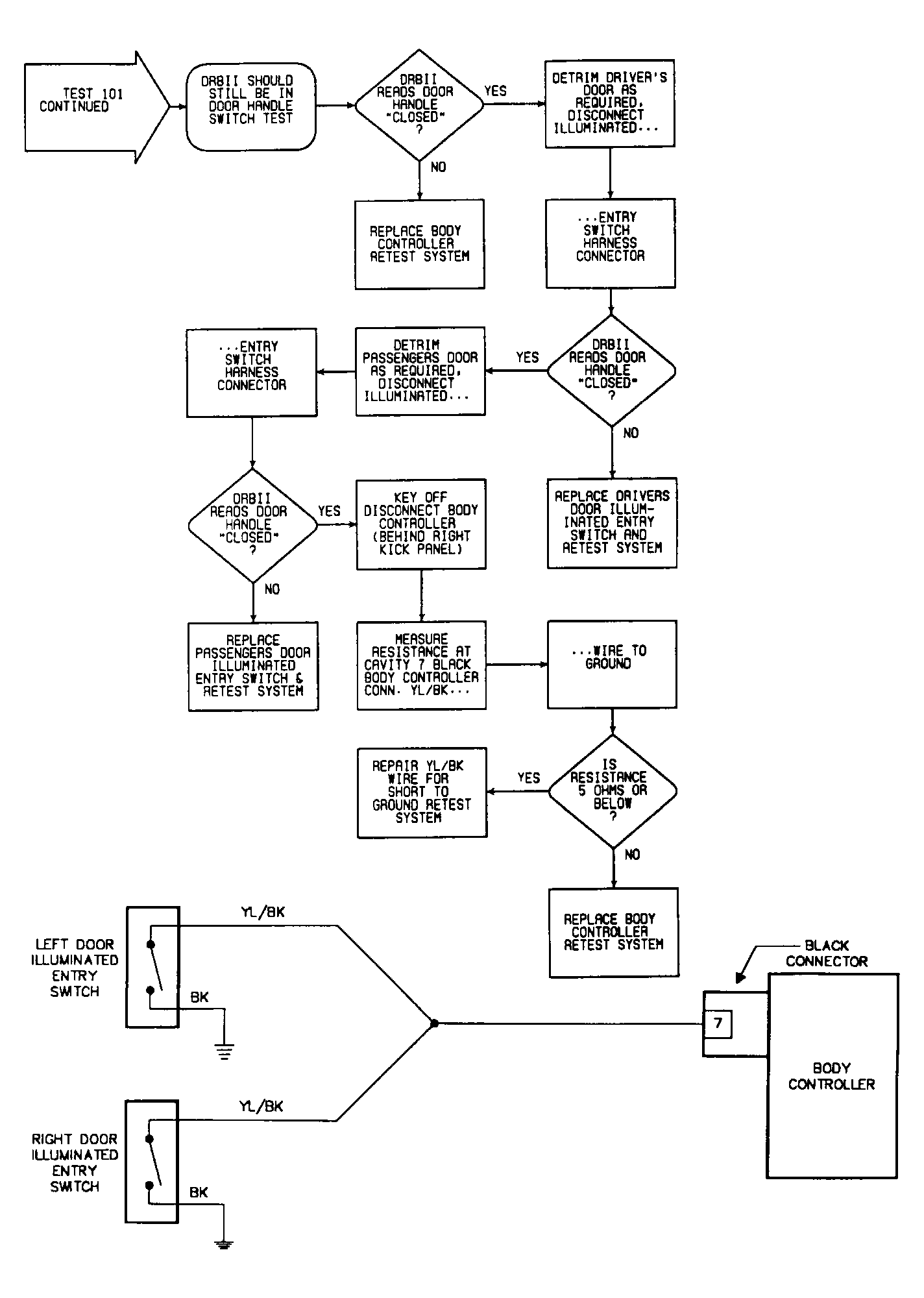

Fig 4: Test 101: Circuit Diagram & Flow Chart (4 of 4)
